Air Relax · Compression therapy (recovery boots)
AIR RELAX PRO AR-4.0
The only Air Relax system with a screen — a 5.5-inch LCD — and the only one where pressure is entered as a real figure rather than picked from four steps. Six chambers instead of four, a session anywhere from 5 to 95 minutes, and it is rated to run continuously where both smaller units need a rest.
$935.00 (regular $1,250.00)
Price
1-year limited warranty
Warranty
Compression therapy
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Compression lounge
3.2′ × 5.6′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features

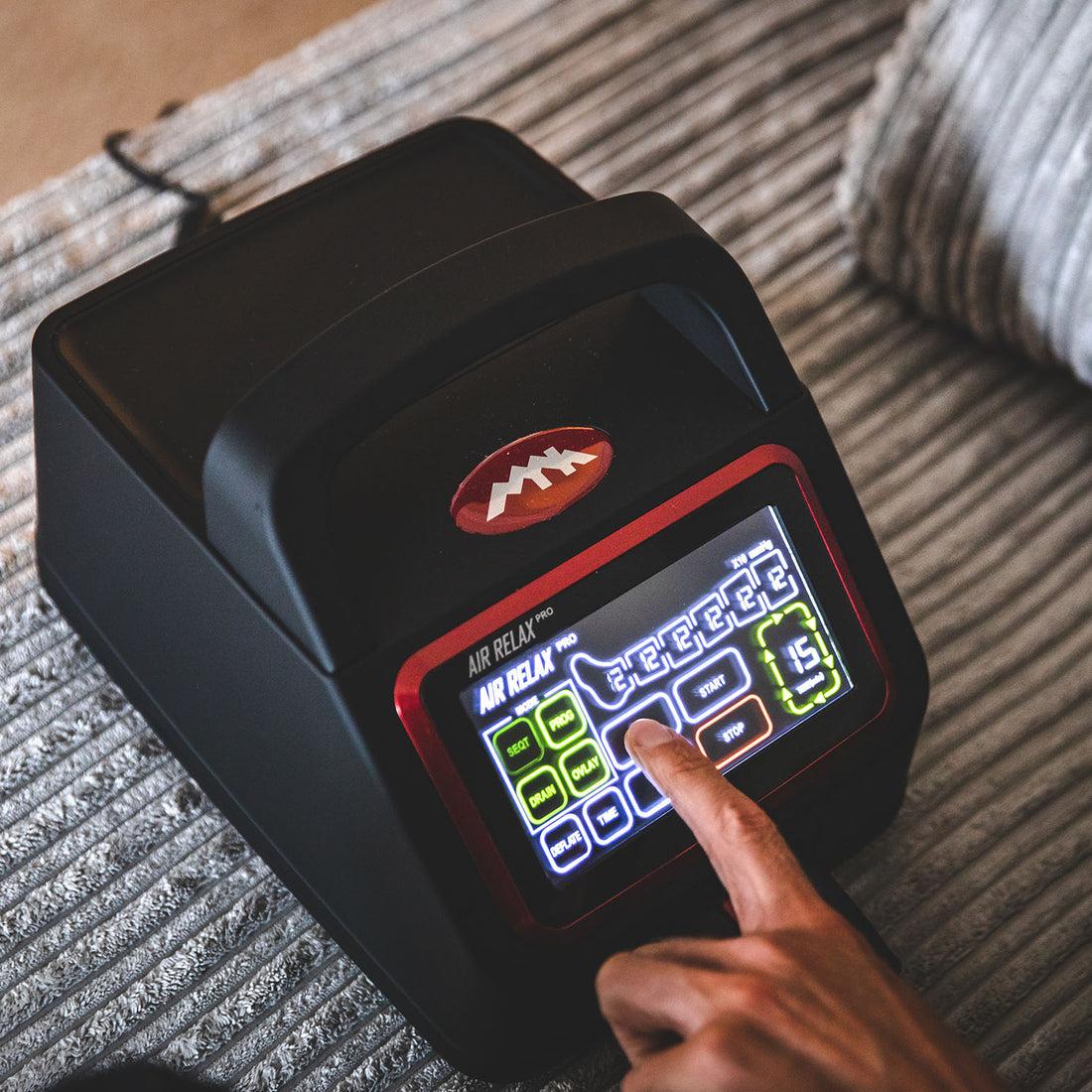

- 5.5-inch LCD touch screen, the only screen in the Air Relax range
- Pressure is set as an actual mmHg figure from 40 to 170, rather than chosen from the four fixed levels the Classic and Plus offer
- Six chambers per boot against four on both smaller models, with individual chambers switchable on or off
- Session timer runs anywhere from 5 to 95 minutes, and the unit is rated for continuous operation rather than needing a rest equal to its run
- A fourth cycle mode, DRAIN, which Air Relax describes as a rehabilitation cycle working distal to proximal toward the torso
- Dedicated deflate control that empties the garment over 30 seconds
- Biocompatible 200 denier nylon Oxford sleeves with overlapping seamless chambers, and a 38 L carrying case included rather than optional
Specifications
- Pressure range
- 40-170 mmHg, entered directly rather than as a level index
- Pressure levels
- 14 steps (individual step values not published)
- Chambers per boot
- 6
- Predefined modes
- 4 (SEQT sequential, PROG progressive, DRAIN, OVLAY overlay)
- Session time
- 5-95 minutes
- Mode of operation
- Continuous
- Display
- 5.5 in LCD touch screen
- Input voltage
- 100-240 VAC, 50-60 Hz (dual voltage)
- Control unit dimensions
- 10.4 x 7.67 x 7.08 in (26.5 x 19.5 x 18.0 cm)
- Garment material
- 200 denier nylon Oxford, biocompatible, with overlapping seamless chambers
- Deflate option
- Yes — 30-second garment deflate
- Customized chamber selection
- Yes — individual chambers can be enabled or disabled
- Pressure calibration
- Yes
- Fast cycle
- Yes
- Carrying case
- 38 L, included
- Optional power bank
- 5,700 mAh / 83.2 Wh Samsung cells, about 3 hours of continuous use
- Boot sizing
- Size 2, 26-31 in inseam; size 3, 31-35 in; size 4, 35-39 in — bands differ from the Classic and Plus
- Warranty
- 1-year limited
- Clearances
- FDA (USA) and CE MDD (EU) cleared
Product-row differences
Direct product-row facts compared with AIR RELAX CLASSIC AR-2.0; shared values are omitted.
Product row lists in the box: Air Relax Pro control unit, 38 L carrying case, AC power adapter and Hose bundle.
Product details
- Regulatory status & certifications
- FDA (USA) clearedCE MDD (EU) clearedRegistration or listing does not by itself mean a device is FDA approved or cleared. Confirm model-specific status and intended use with the manufacturer and the relevant regulator before purchase.

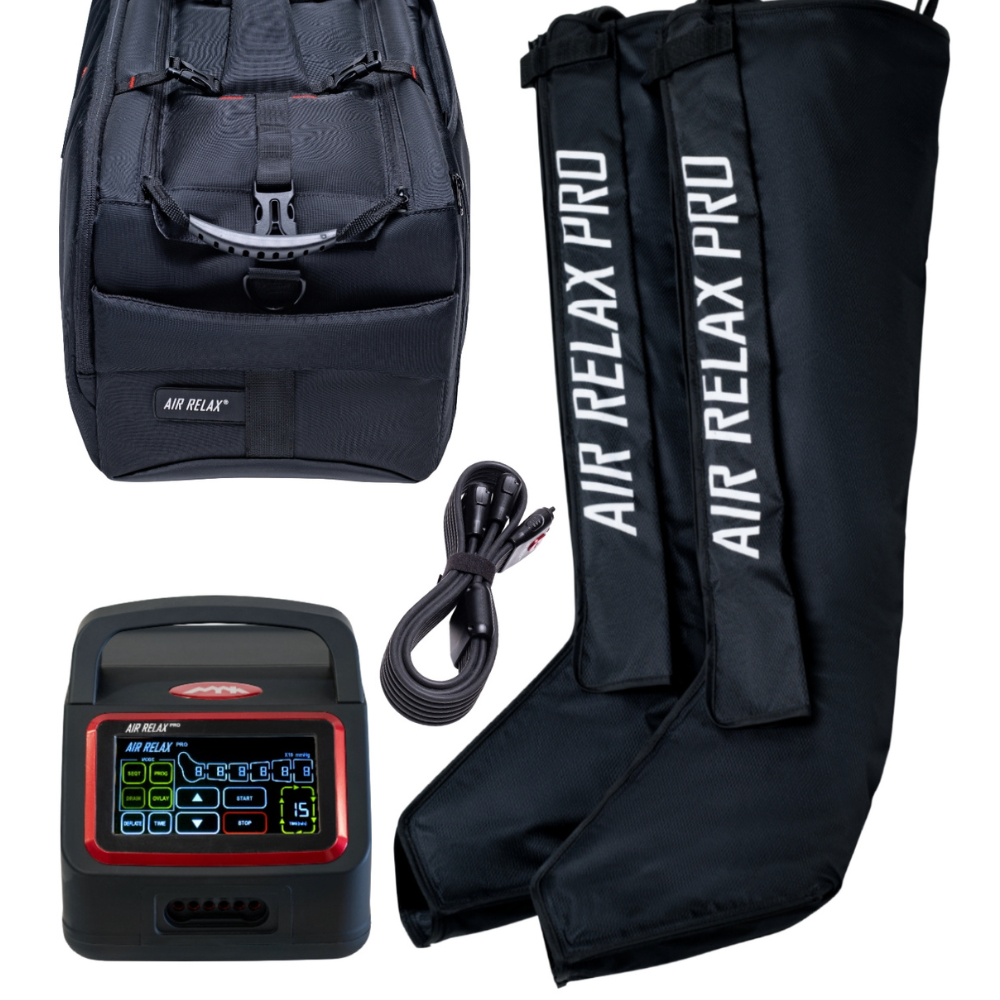

What's included
- Air Relax Pro control unit
- A pair of leg sleeves
- 38 L carrying case
- AC power adapter
- Hose bundle
- User manual
