Cryomed · Localized Cryotherapy Device
Cryomed CF-04
The smaller cryogenic blower in Cryomed's pair, in production since 2015 and light enough to carry - 10.4 kg gross packed without a tank. It reaches -120 degC where the CF-05 reaches -130, accepts a 10-, 35- or 50-litre Dewar rather than only 35, and ships with no tank at all; laser aiming and the skin-temperature sensor are a paid option here.
From €3,450 excl. VAT without a Dewar tank; €4,200 / €4,500 / €4,950 with a 10-, 35- or 50-litre Dewar
Price
Slovakia
Made in
Localized cryotherapy
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Localized cryotherapy station
3′ × 3′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- Delivered without a Dewar tank - the unit, hose and storage rack only, so the tank is a separate line item

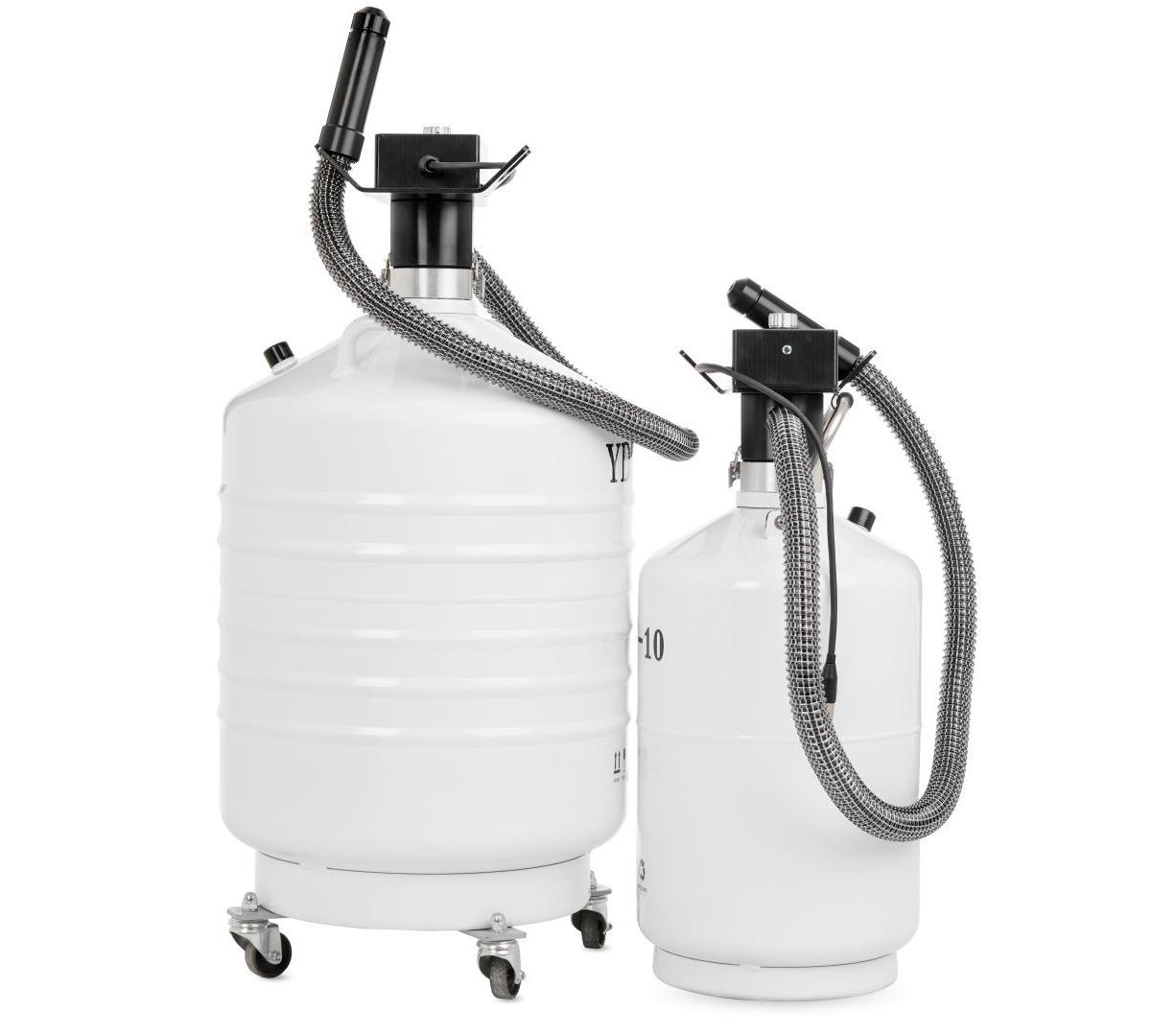

- Accepts a 10-, 35- or 50-litre Dewar, where the CF-05 is specified for 35 litres
- Laser distance control and the skin-temperature sensor are a EUR 750 option rather than standard fit
- From 4.6 kg, and 10.4 kg gross packed without a tank, so it travels to away fixtures and home visits
- 0.75 litre of liquid nitrogen per 10-minute treatment, 40+ sessions from one 35-litre Dewar
- No specific medical certification is required to operate it
Specifications
- Maximum working temperature
- -120 degC
- Weight
- From 4.6 kg
- Power consumption
- 0.28 kW
- Liquid nitrogen consumption
- 0.75 litre per 10-minute treatment
- Pre-cooling time to -100 degC
- Under 4 minutes
- Compatible nitrogen tanks
- 10-, 35- or 50-litre Dewar
- Sessions per fill
- 40+ from a single 35-litre Dewar
- In production since
- 2015
- Medical certification
- Not required for use
- Packed size, with a 35-litre Dewar
- 67 x 58 x 98 cm, 32 kg gross
- Packed size, without a Dewar
- 64 x 34 x 87 cm, 10.4 kg gross
Product-row differences
Direct product-row facts compared with Cryomed CF-05; shared values are omitted.
Product row lists in the box: Cryofan CF-04 unit, Hose and Storage rack (no Dewar tank included).
Product details
- Regulatory status & certifications
- CERegistration or listing does not by itself mean a device is FDA approved or cleared. Confirm model-specific status and intended use with the manufacturer and the relevant regulator before purchase.
What's included
- Cryofan CF-04 unit
- Hose
- Storage rack (no Dewar tank included)
