Cryomed · Localized Cryotherapy Device

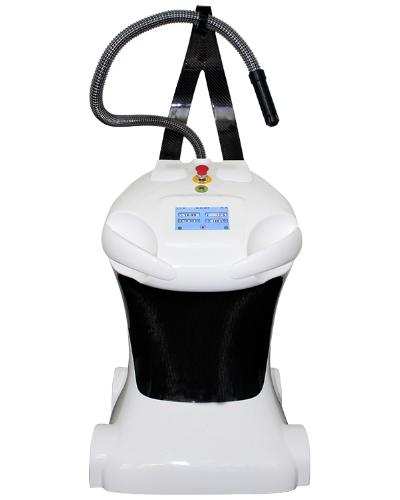

Cryomed CF-05
The larger of Cryomed's two cryogenic blowers, and the one where laser distance control and the real-time skin-temperature readout are standard fit rather than a EUR 750 option. It works ten degrees colder than the CF-04, rides on casters instead of being carried, and arrives with a 35-litre Dewar and both nozzle sizes in the delivery set.
€9,000 excl. VAT (manufacturer list price, includes a 35-litre Dewar tank)
Price
2-year warranty
Warranty
Slovakia
Made in
Localized cryotherapy
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Localized cryotherapy station
3′ × 3′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- Laser distance control and a real-time skin-temperature sensor fitted as standard, with readings on a small screen at the nozzle
- 7-inch touchscreen sets both the session temperature and the treatment time
- Two nozzles supplied, 7 mm and 9 mm, for smaller or larger treatment areas
- 40+ treatments from a single 35-litre Dewar at 0.75 litre per 10-minute session
- Ready to work in under 4 minutes from cold
- Fibreglass shell on casters at 0.98 m tall, needing no installation
Specifications
- Maximum working temperature
- -130 degC
- Height
- 0.98 m
- Power consumption
- 0.28 kW
- Liquid nitrogen consumption
- 0.75 litre per 10-minute treatment
- Pre-cooling time to -100 degC
- Under 4 minutes
- Compatible nitrogen tank
- 35-litre Dewar
- Sessions per fill
- 40+ from a single 35-litre Dewar
- Control
- 7-inch touchscreen for temperature and time
- Hose
- 2 m flexible
- Nozzles
- 7 mm and 9 mm supplied
- Shell material
- Fibreglass
- Installation
- Not required
- Packed size, truck shipment
- 86 x 71 x 124 cm, 69 kg gross
- Packed size, air/sea shipment
- 83 x 95 x 125 cm, 101 kg gross
Product-row differences
Direct product-row facts compared with Cryomed CF-04; shared values are omitted.
Warranty: this product lists 2-year warranty.
Product row lists in the box: Cryofan CF-05 unit, 35-litre Dewar tank, 2 m flexible hose, 7 mm nozzle and 9 mm nozzle.
Product details
- Regulatory status & certifications
- CERegistration or listing does not by itself mean a device is FDA approved or cleared. Confirm model-specific status and intended use with the manufacturer and the relevant regulator before purchase.
What's included
- Cryofan CF-05 unit
- 35-litre Dewar tank
- 2 m flexible hose
- 7 mm nozzle
- 9 mm nozzle
