HPO TECH · Hypobaric Chamber
HPO TECH Apex

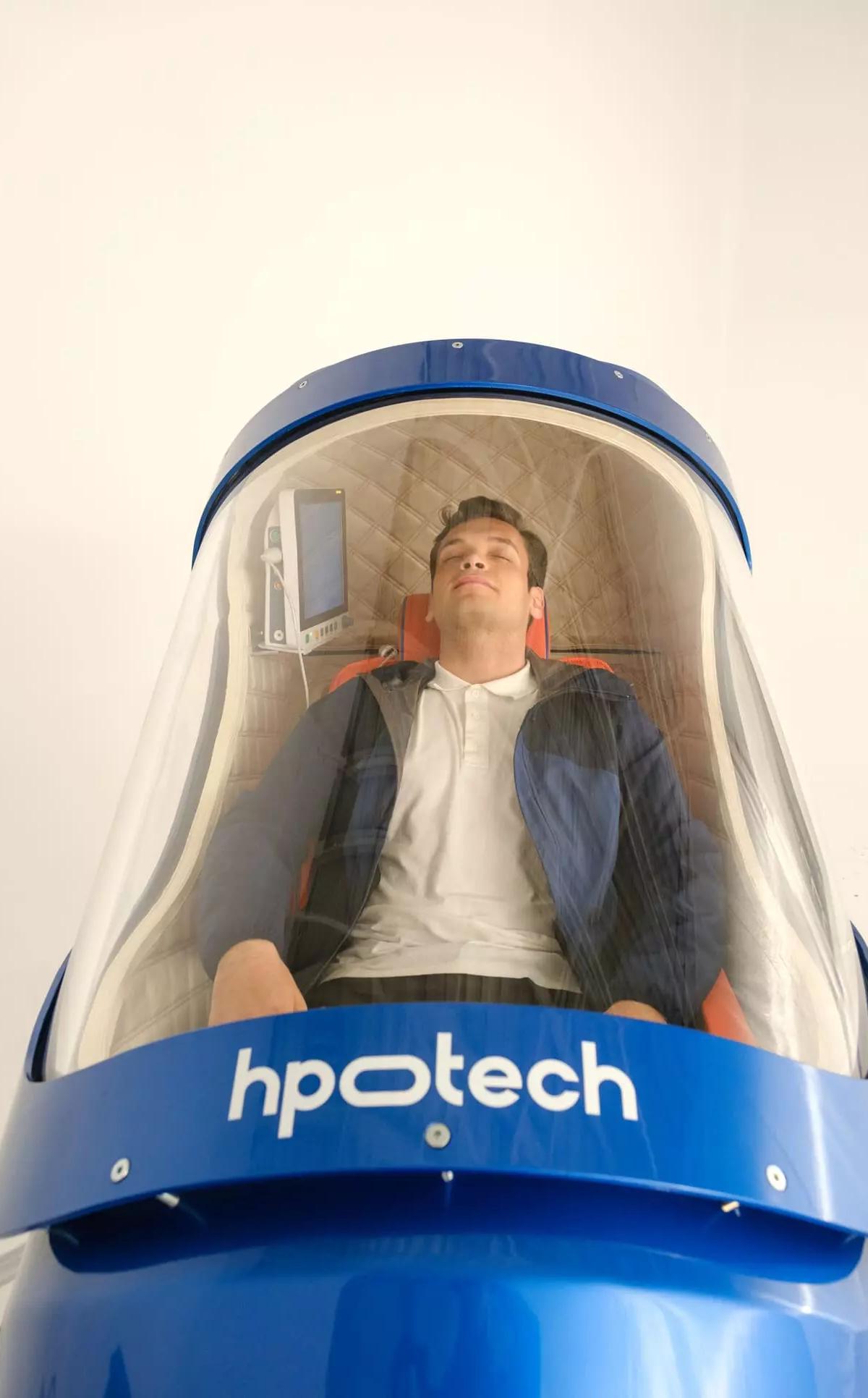

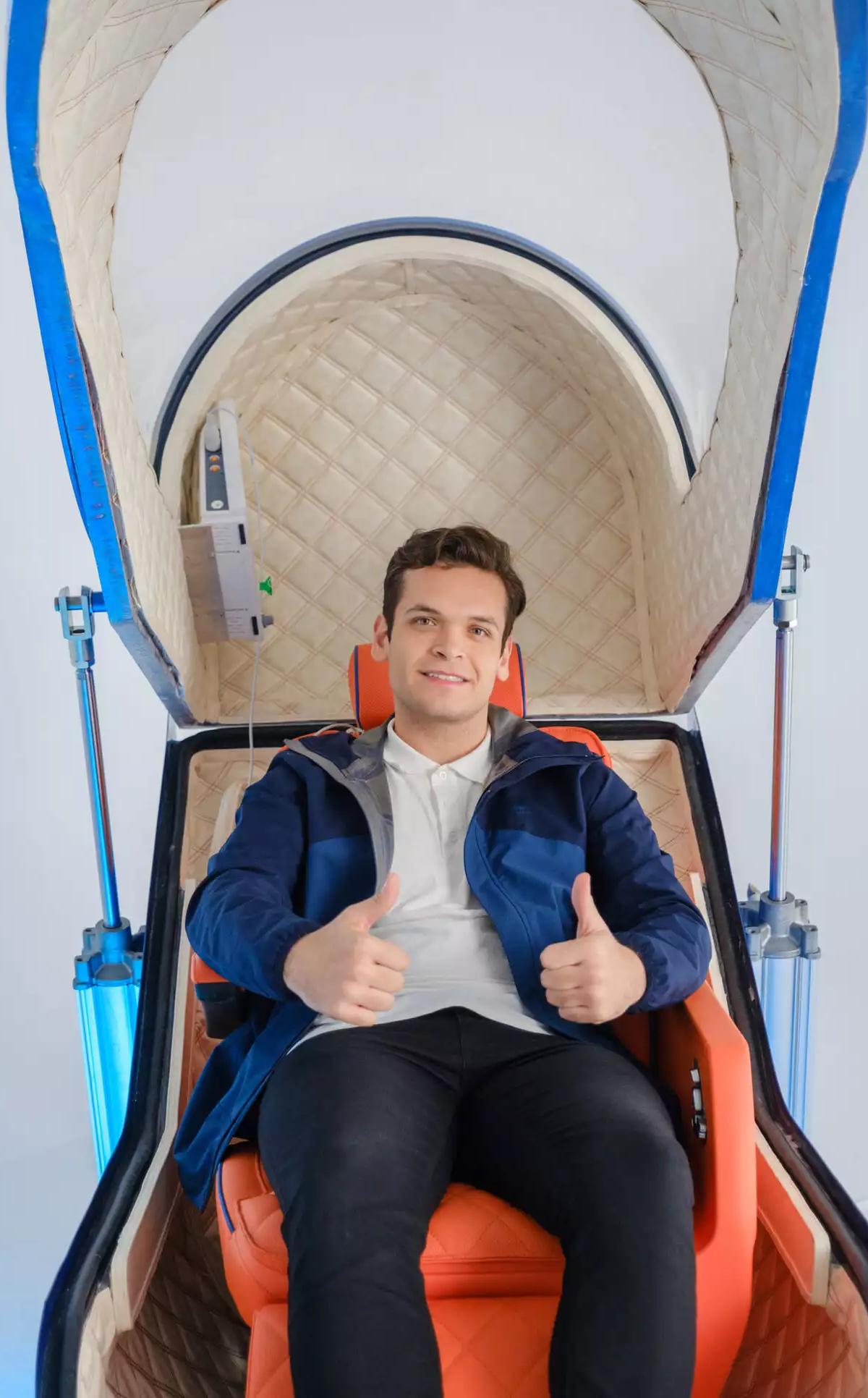

HPO TECH's hypobaric chamber runs the pressure the other way: a Turbo Venturi unit pulls the cabin down to 0.356 ATM, the thin air of 8,000 metres, instead of pressurising it. At 600 kg it is heavier and longer than the company's Zeugma monoplace, and the 46 dB vacuum unit is a second body to site alongside it.
Altitude training
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Exercise and oxygen station
4′ × 7.0′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Exercise station; selected hypoxic system must be specified separately.
Key features
- Hypobaric, not hyperbaric — a hard-shell vessel taken DOWN to 0.356 ATM by vacuum, simulating altitude up to 8,000 m
- Turbo Venturi System converts the compressor's positive pressure into the negative pressure the chamber runs on
- Patient Monitoring System tracks heart rate, blood pressure, respiratory rate, blood-oxygen saturation and temperature continuously for an attendant stationed outside
- Altitude is a continuous dial rather than a preset list: HPO TECH states operators can set any altitude equivalent within the range
- Chamber is one modular unit sized to pass through a standard doorway, but the published minimum installation floor is 5500 x 2800 mm
- The 46 dB vacuum unit is a separate 67 kg body that has to be sited alongside the chamber
Specifications
- Capacity
- 1 person (1 seat)
- Negative pressure
- 0.356 ATM, equivalent to 8,000 m of altitude
- Material
- Aluminium 5000 series
- Overall dimensions
- 2136 mm long x 1166 mm wide x 1587 mm high
- Internal length
- 1620 mm
- Internal volume
- 0.9 m3
- Weight
- 600 kg
- Shape and design
- One unit, modular, sized to fit a standard doorway
- Minimum installation floor size
- 5500 mm x 2800 mm
- Design temperature
- 0 C to 38 C (vessel environmental rating, not a cabin setpoint)
- Maximum patient weight
- 225 kg
- Turbo Venturi power
- 4 HP
- Turbo Venturi capacity
- 600 LPM
- Turbo Venturi noise level
- 46 dB
- Turbo Venturi dimensions
- 495 mm wide x 1004 mm long x 804 mm high, 67 kg
Product details
- Regulatory status & certifications
- CE (MDD/MDR)UKCAASME PVHOASME U-StampPEDISO 13485ISO 9001ISO 45001ISO 14001ISO 27001NFPAThai FDAGhana FDASaudi FDA (SFDA)UAE MOHAP/EDERegistration or listing does not by itself mean a device is FDA approved or cleared. Confirm model-specific status and intended use with the manufacturer and the relevant regulator before purchase.
