HPO TECH · Multiplace Hyperbaric Chamber

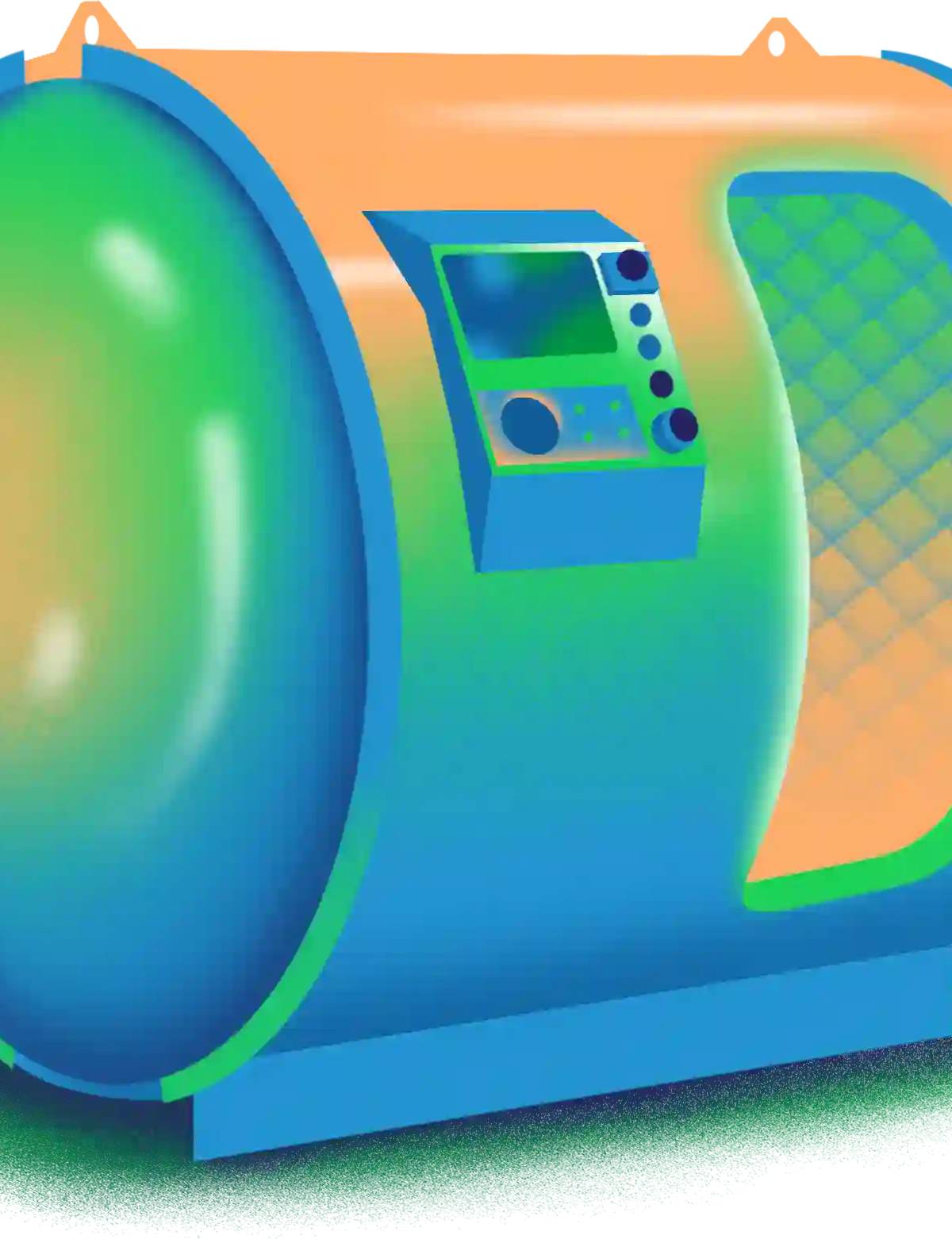

HPO TECH Atlantis
A modular aluminium chamber built so two people can share a session on separate BIBS masks, or ordered as a single-seater. Its 30 mm acrylic door slides on a piston system with a four-point lock, and identical 10.1-inch touchscreens inside and out mean the occupant can drive the session as readily as the attendant.
Hyperbaric oxygen
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Hyperbaric chamber
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- Available as a 1-seat or 2-seat multiplace chamber, or delivered as a monoplace configuration
- Mirrored external and internal 10.1" industrial TFT touchscreens (1024×600, LED backlit) — all commands work from either position
- Manual de/compression knobs that adjust independently of the automatic system
- Built-In Breathing System (BIBS) with one oxygen concentrator per occupant
- Two-way intercom with volume control between external and internal positions
- UV-C light disinfection with an occupancy sensor that disables it automatically when anyone enters
- Adjustable LED RGB interior lighting
- Automation software certified to IEC 62304 Class C
- Session data logger and USB 3.0 port for software updates, custom settings and session-archive download
- Choice of three ergonomic chair models, including a powered electric range, in ecological leather with selectable colour and stitch
- Emergency Stop button and emergency decompression valve operable from inside or outside
Specifications
- Maximum operating pressure
- 2.0 ATA (1.0 bar)
- Working / design pressure
- 3.0 ATA / 3.2 ATA — a vessel structural rating, not an operating limit
- Test pressure
- 4.15 ATA — a proof figure, not an operating limit
- Capacity
- 1 or 2 seats
- Overall dimensions
- 2151 x 2000 x 1859 mm
- Interior
- 2200 mm long x 830 mm internal diameter; 4 m3 volume
- Weight
- 650 kg per HPO TECH's own technical table; the Nordic Welltech distributor sheet lists 1050 kg for the same model — confirm against the delivered unit
- Minimum installation floor size
- 4400 x 3000 mm
- Module width
- 770 mm — ships in sections that pass through a standard doorway
- Maximum patient weight
- 225 kg
- Design temperature
- 0 C to 38 C (environmental envelope, not a cooler setpoint range)
- Chamber material
- Medical-grade aerospace aluminium
- Door
- 30 mm PMMA acrylic sliding door on a piston system with 4-point locking
- Control system
- Mirrored external and internal 10.1 inch industrial TFT touchscreens, 1024 x 600, LED backlit; automation software certified to IEC 62304 Class C
- Air supply
- 450 LPM at 3.45-7.2 bar
- Ventilation
- 125-400 LPM
- BIBS oxygen supply
- 3.2-4.0 bar
- Emergency depressurization
- 2.0 ATA to 1.0 ATA in 90 seconds
- System components
- Chamber (2 seats), air compressor (optional, 1 unit), oxygen concentrator (optional, 1 per occupant), air cooler (1 unit)
Product-row differences
Direct product-row facts compared with HPO TECH Mediterranean; shared values are omitted.
Product row lists certifications: MDR 2017/745.
Product details
- Regulatory status & certifications
- MDR 2017/745CE (MDD/MDR)UKCAASME PVHOASME U-StampPEDISO 13485ISO 9001ISO 45001ISO 14001ISO 27001NFPAThai FDAGhana FDASaudi FDA (SFDA)UAE MOHAP/EDERegistration or listing does not by itself mean a device is FDA approved or cleared. Confirm model-specific status and intended use with the manufacturer and the relevant regulator before purchase.
