HPO TECH · Multiplace Hyperbaric Chamber
HPO TECH Titan

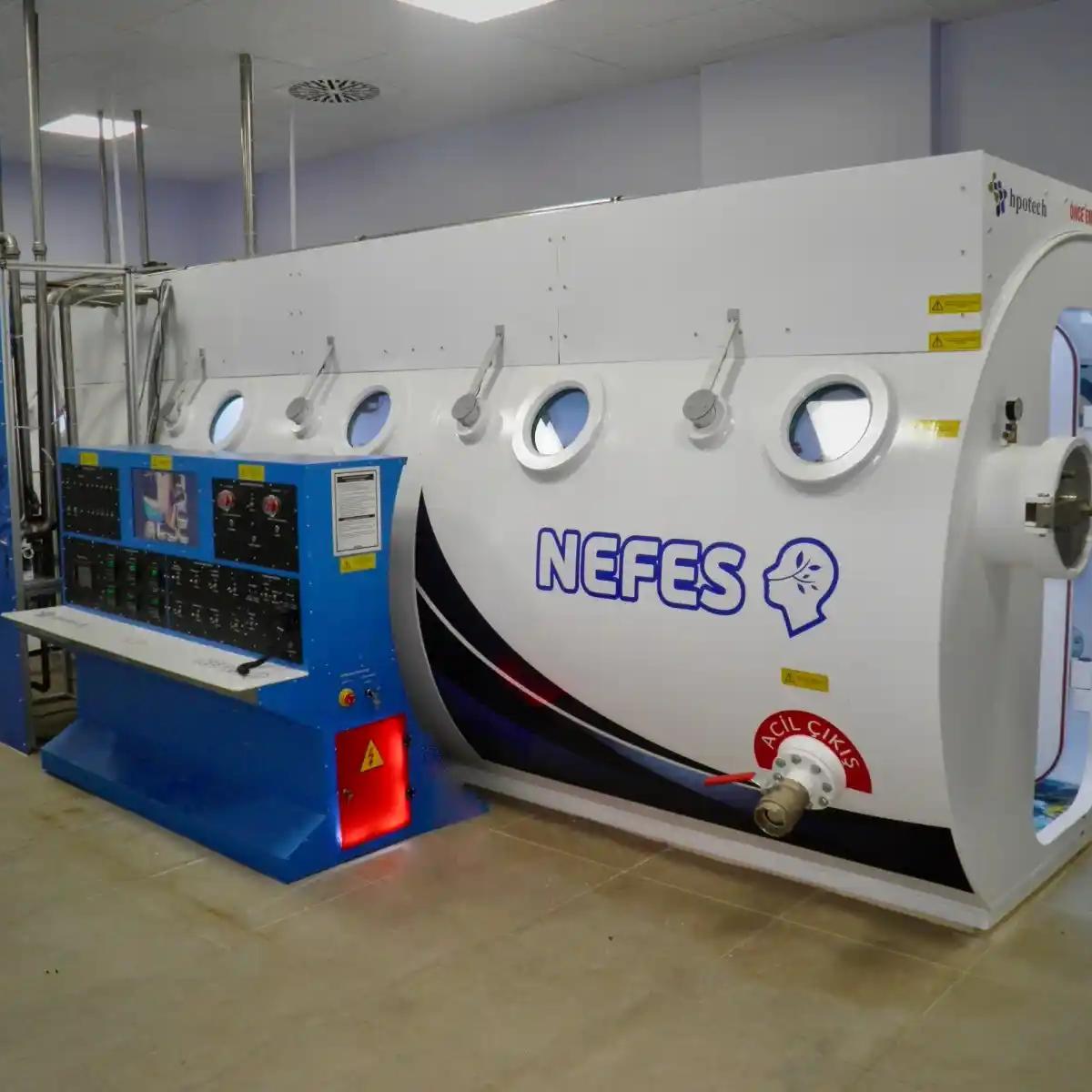

The hospital-scale chamber in the HPO TECH range: up to twelve patients and two attendants share one steel vessel at 3.0 to 6.0 ATA. Unlike the aluminium wellness models it needs a plant room of its own — two compressors, an air dryer, four air stock tanks and a five-unit fire suppression system — roughly as much floor again as the chamber itself.
Hyperbaric oxygen
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Hyperbaric chamber
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- Session data logger
- Cameras & monitoring system
- Smoke detectors
- USB ports
- Tablets and entertaining systems
- Patient vitals monitoring screens
- Different working pressure levels
- RGB LED lighting
- Brandable ergonomic seats
- Brandable interior-exterior design
- Custom 3D epoxy flooring
Specifications
- Pressure rating
- 3.0-6.0 ATA
- Capacity
- 12 patients + 2 medical attendants; configurations from 4+2 up to 12+2 (max 14)
- Outer dimensions
- 7988 x 2356 x 2604 mm
- Internal diameter
- 2200 mm
- Chamber material
- Steel
- Minimum floor area
- 13000 x 6000 mm chamber room, plus a 9000 x 6200 mm plant room
- Emergency decompression
- 3.0 ATA to 1.0 ATA in 125 seconds
- Maximum occupant weight
- 225 kg

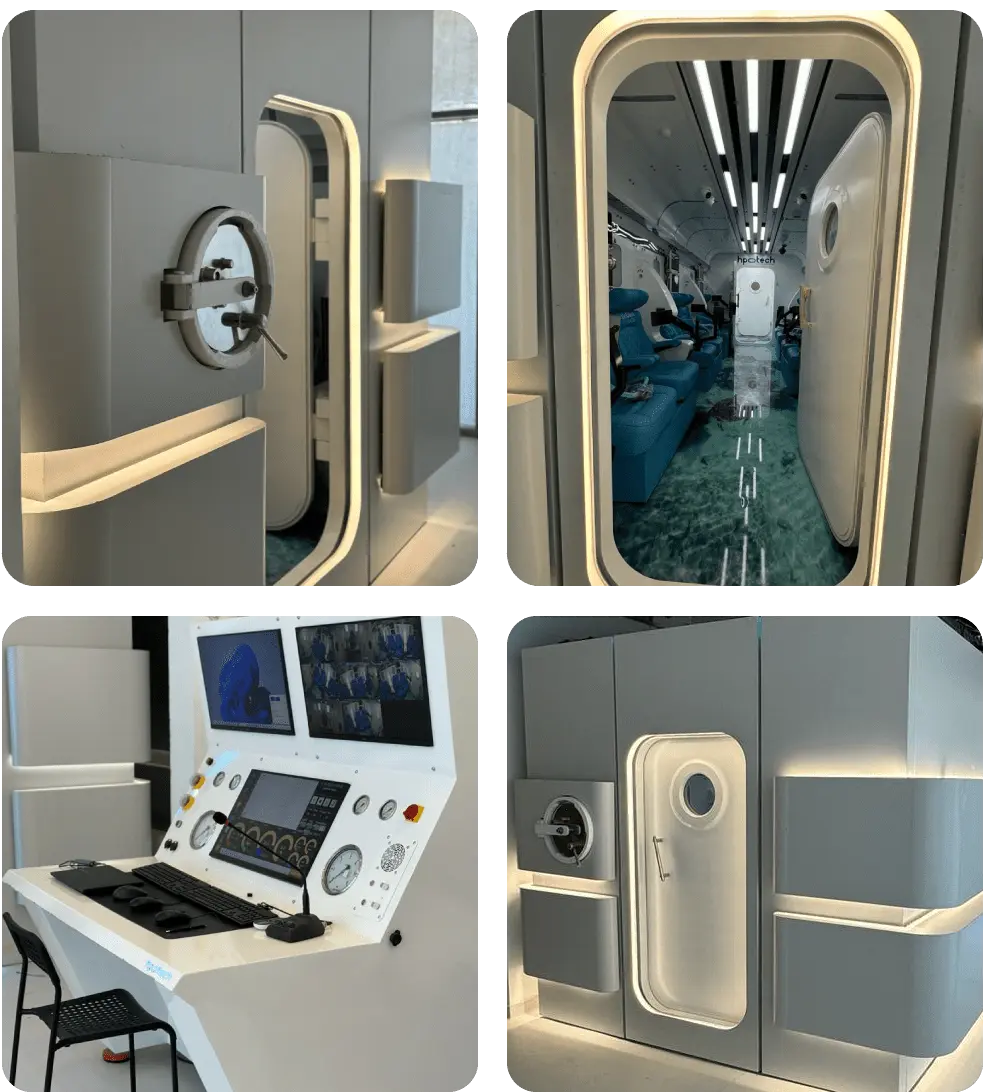

- Exterior options
- TITANIC Square (modern exterior) or TITANIC Omega (cylindrical exterior) — same internal structure
- Air generating unit
- 3 units — two air compressors, air dryer, and carbon, oil and microparticle filters
- Air stock tanks
- 4 units
- Fire suppression system
- 5 units
- Air cooler
- 1 unit
- Oxygen delivery
- BIBS mask per occupant, fed from the facility's oxygen tanks at 5 bar / 40 LPM
- Control system
- External control panel with built-in mini-computer, plus manual compression and decompression knobs
- Monitoring
- Multiple interior cameras covering all angles, broadcast live to the control panel; real-time pressure, oxygen, temperature, humidity and patient vitals
- Plant requirement (per chamber)
- 4 hp air compressor (564 LPM, 1-8 bar), one 2500 W oxygen concentrator per seat (90-93% purity, 1-20 LPM), 1500 W air cooler holding 5-40 C to within +/-0.1 C, refrigerated air dryer
Product-row differences
Direct product-row facts compared with HPO TECH Mediterranean; shared values are omitted.
Product row lists certifications: MDR 2017/745.
Product details
- Regulatory status & certifications
- MDR 2017/745CE (MDD/MDR)UKCAASME PVHOASME U-StampPEDISO 13485ISO 9001ISO 45001ISO 14001ISO 27001NFPAThai FDAGhana FDASaudi FDA (SFDA)UAE MOHAP/EDERegistration or listing does not by itself mean a device is FDA approved or cleared. Confirm model-specific status and intended use with the manufacturer and the relevant regulator before purchase.
