HPO TECH · Monoplace Hyperbaric Chamber
HPO TECH Trojan

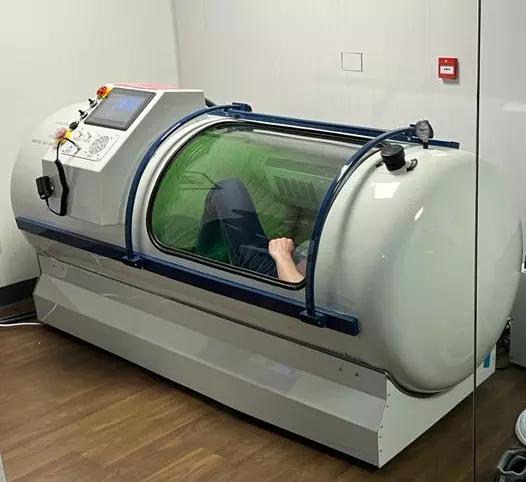

The stretcher-loading chamber in the HPO TECH range: the patient is treated lying down on a dedicated stretcher or medical bed rather than seated upright. A Class IIb active medical device with mirrored inside and outside touchscreens backed by a fully independent manual panel, certified at a choice of 2.0, 2.4 or 3.0 ATA.
Hyperbaric oxygen
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Hyperbaric chamber
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- Electro-Pneumatic Dual Control Panel — independent manual override alongside the automated software system
- Acoustic noise reduction via specialized air inlet/outlet silencers
- Battery-backed dual-channel intercom with sound-powered magneto phone, operational through a total facility power failure
- Ergonomic mattress certified to EN 14931, flame-retardant
- Interior leather upholstery
- UV-C light disinfection with automatic occupancy-sensor disable
- USB 3.0 port for software updates, custom settings, and session-archive download
- Mechanical dial pressure indicator for analog cross-check
- Built-in entertainment system (large-screen TV or tablets)
- Adjustable LED RGB ambient lighting
Specifications
- Pressure rating
- 2.0 ATA / 2.4 ATA / 3.0 ATA — three certified build variants, specified at order
- Capacity
- 1 patient (monoplace)
- Patient position
- Supine, on a dedicated stretcher or medical bed
- Device class
- Class IIb active medical device
- Chamber shape
- Cylindrical
- Control panels

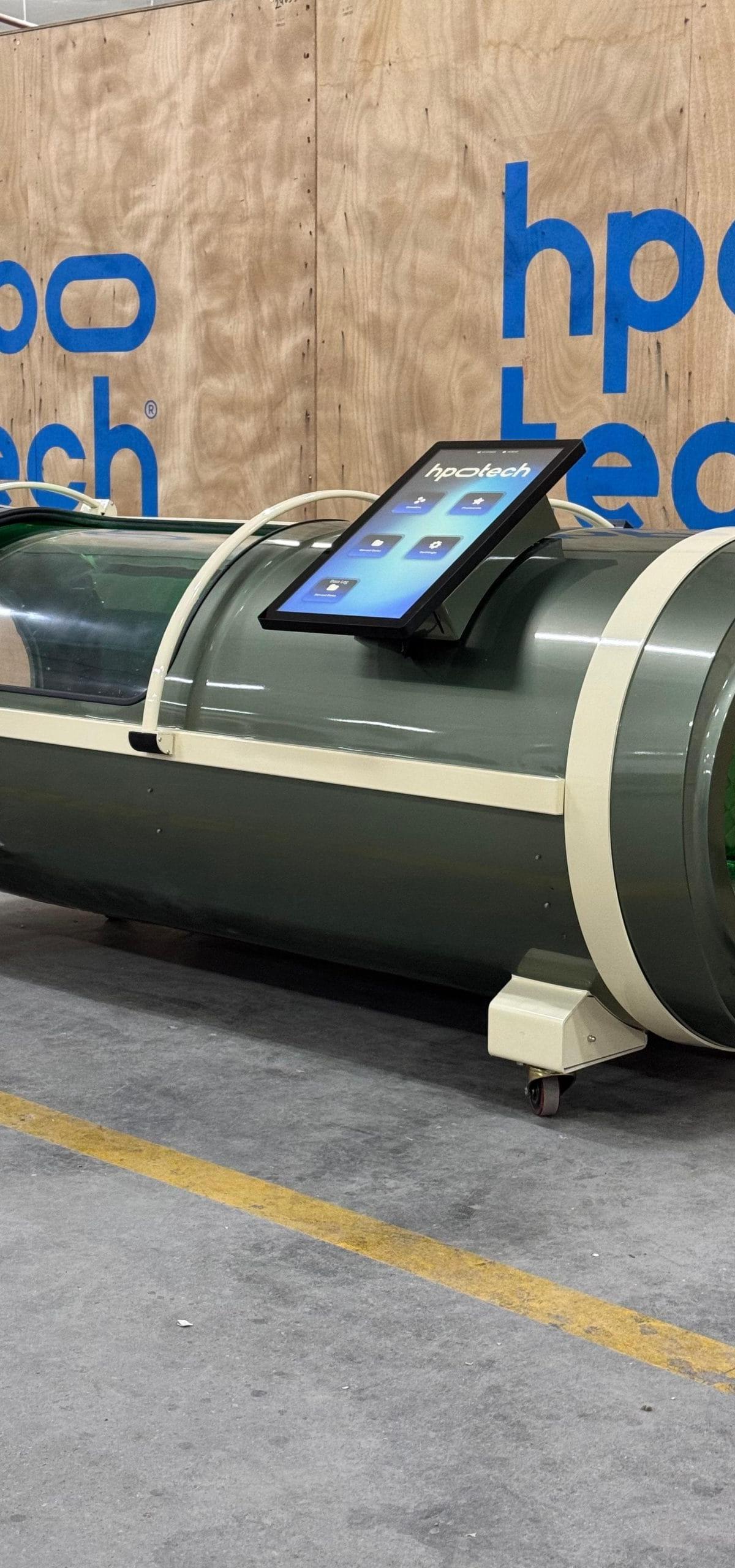

- External and internal touchscreen tablets — all commands mirrored for inside and outside control
- Manual override
- Electro-pneumatic dual control panel with independent manual compression and decompression knobs
- Oxygen delivery
- Built-In Breathing System (BIBS) mask regulated by the tempo of the user's breath
- Disinfection
- UV-C light, automatically disabled by an occupancy sensor when anyone enters
- Mattress
- Certified to EN 14931, flame-retardant
- Communication
- Battery-backed dual-channel intercom with sound-powered magneto phone, operational through a total facility power failure
- Noise control
- Silencers integrated into the air inlet and outlet ports
- Monitoring
- Real-time atmospheric pressure, oxygen concentration, temperature, humidity, patient vitals and treatment duration
- Internal instrumentation
- Mechanical dial chamber pressure indicator, internal cooler operated from the control tablet, internal intercom, internal emergency stop
- Data port
- USB 3.0 for software updates, custom settings upload and session-archive download
- System components
- Chamber (1 seat), air compressor (optional), oxygen concentrator (optional), air cooler (1 unit)
Product-row differences
Direct product-row facts compared with HPO TECH Matrix; shared values are omitted.
Product row lists certifications: MDR 2017/745, CE (MDD/MDR), ISO 27001, NFPA, Thai FDA, Ghana FDA, Saudi FDA (SFDA) and UAE MOHAP/EDE.
Product details
- Regulatory status & certifications
- MDR 2017/745CE (MDD/MDR)UKCAASME PVHOASME U-StampPEDISO 13485ISO 9001ISO 45001ISO 14001ISO 27001NFPAThai FDAGhana FDASaudi FDA (SFDA)UAE MOHAP/EDERegistration or listing does not by itself mean a device is FDA approved or cleared. Confirm model-specific status and intended use with the manufacturer and the relevant regulator before purchase.
