HPO TECH · Monoplace Hyperbaric Chamber
HPO TECH Zeugma

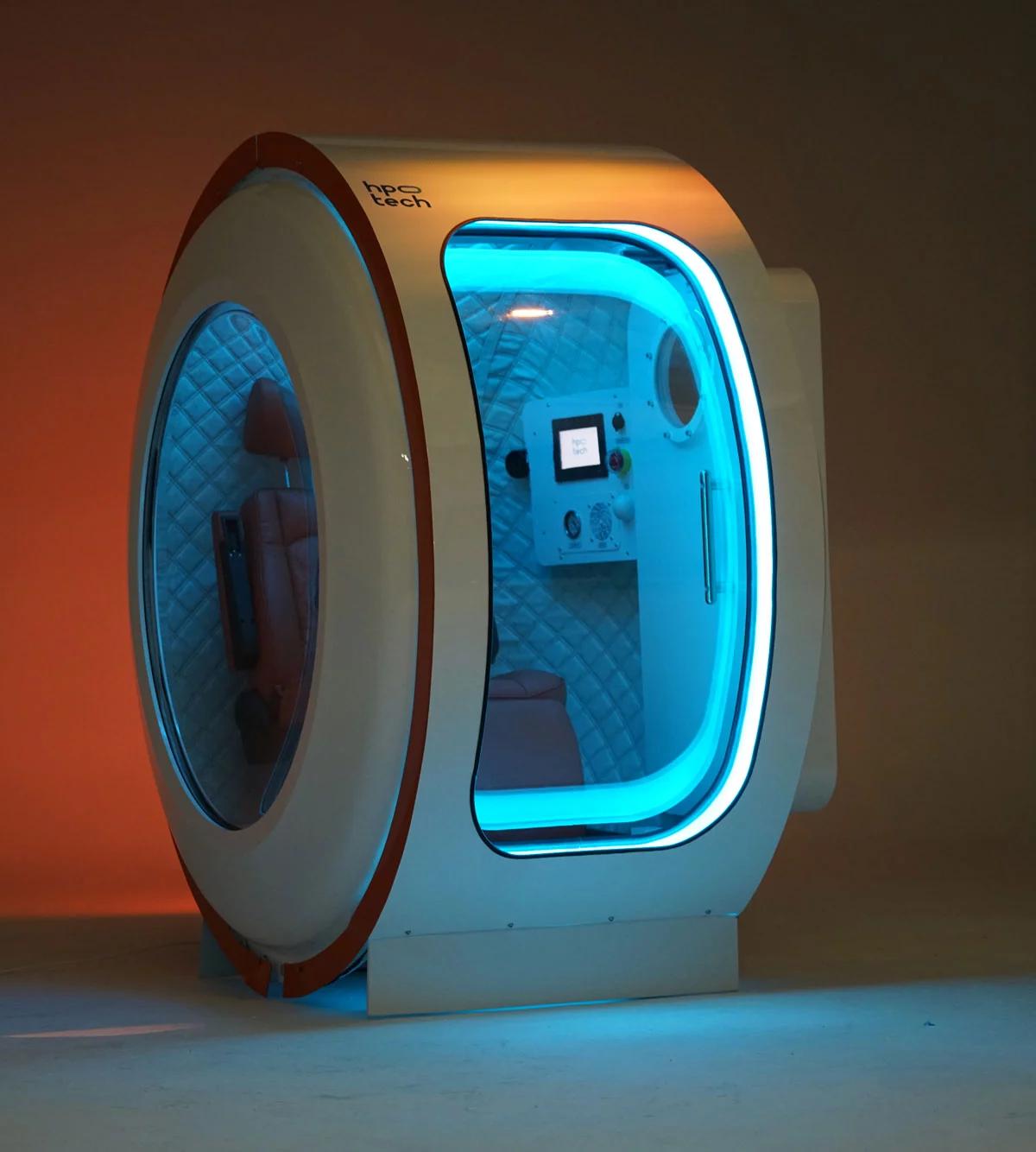

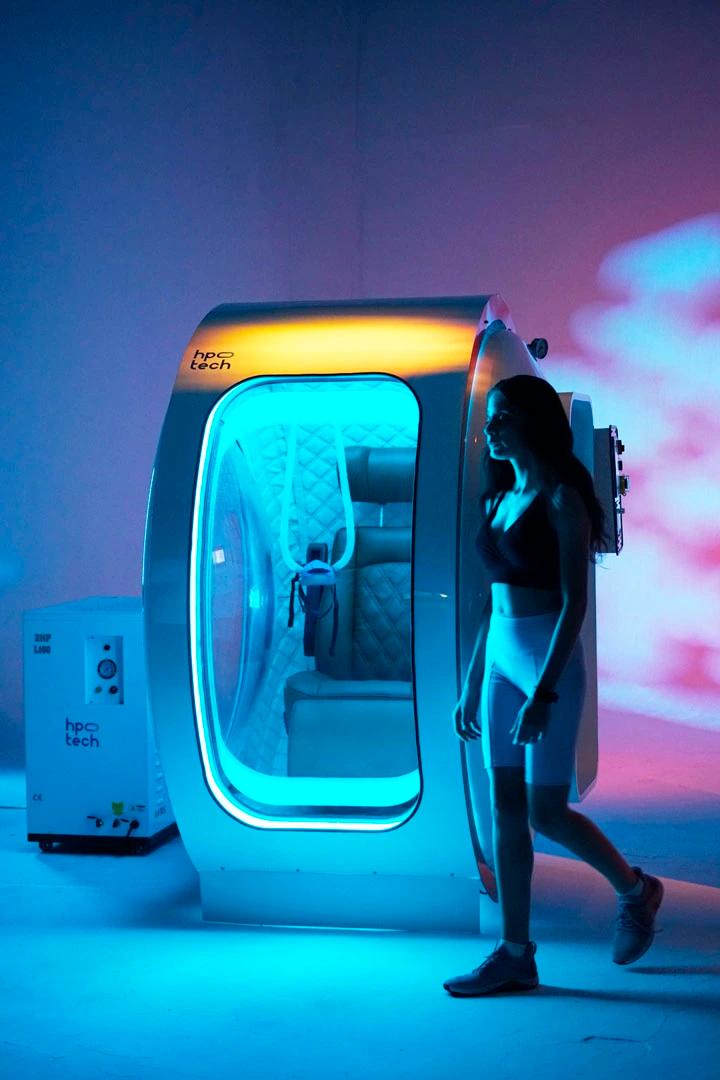

HPO TECH's single-seat monoplace chamber: a 400 kg aerospace-aluminium cylinder built from three 770 mm modules so it passes through a standard doorway. Oxygen comes through a BIBS mask regulated by the user's own breathing, and every command is mirrored between an internal and an external touchscreen.
Turkey
Made in
Hyperbaric oxygen
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Hyperbaric chamber
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- Three-piece acrylic viewports in 20, 30 and 50 mm thicknesses give a panoramic outward view rather than a closed capsule
- BIBS oxygen mask is demand-regulated by the user's own breathing rhythm, so there is no flow or FiO2 dial to set
- Internal and external touchscreen tablets with all commands mirrored, so the session can be driven from either side of the hull
- Manual de/compression knobs adjust compression and decompression independently of the automatic system, with an emergency stop on both panels
- UV-C disinfection runs between sessions on a motion sensor that cuts the cycle instantly if a person is detected inside
- HPOSoft Smart Automation logs oxygen, pressure, temperature and humidity every 5 seconds, oxygen to plus or minus 0.1 per cent
- USB 3.0 port on the external panel for software updates, uploading custom session profiles and downloading the session archive
- Mechanical dial pressure indicator inside the chamber as an analog cross-check against the tablet reading
Specifications
- Capacity
- 1 person (1 seat, monoplace)
- Maximum operating pressure
- 2.0 ATA (1.0 bar) / 2.4 ATA (1.4 bar) / 3.0 ATA (2.0 bar), build-dependent — HPO TECH's own FAQ calls 2.0 ATA the specification-sheet maximum, so confirm against the delivered unit's nameplate
- Material
- Aerospace aluminium; 5 mm sandblasted aluminium shell coated with flame-retardant, non-toxic medical-grade epoxy
- Overall dimensions
- 1344 mm long x 1987 mm wide x 1858 mm high
- Chamber internal diameter
- 1620 mm
- Internal length
- 1370 mm
- Internal volume
- 2 m3
- Weight
- 400 kg
- Shape and design
- One unit, cylindrical, 3 modules of 770 mm, sized to fit a standard doorway
- Minimum installation floor size
- 5500 mm x 2800 mm
- Viewports
- 3-piece multi-thickness acrylic (20 mm, 30 mm, 50 mm)
- Door mechanism
- Pressure-resistant sealed sliding acrylic door assembly
- Design temperature
- 0 C to 38 C (vessel environmental rating, not a cabin setpoint)
- Air pressurization
- 3.45 bar to 7.2 bar
- Air supply flow
- 250 LPM
- BIBS oxygen supply
- 3.2 bar to 4.0 bar
- Ventilation rate
- 125 LPM to 400 LPM
- Emergency depressurization rate
- 2.0 ATA to 1.0 ATA in 90 seconds
- Maximum patient weight
- 225 kg
- Device class
- Class IIb active medical device
Product-row differences
Direct product-row facts compared with HPO TECH Petra; shared values are omitted.
Made in: this product lists Turkey.
Product row lists in the box: Hyperbaric chamber (1-seat monoplace), Air cooler, BIBS oxygen mask, Internal and external control panels and Ergonomic seating with leather upholstery.
Product row lists certifications: CE Marking (93/42/EEC MDD).
Product details
- Regulatory status & certifications
- MDR 2017/745CE Marking (93/42/EEC MDD)UKCAASME PVHOASME U-StampPEDISO 13485ISO 9001ISO 14001ISO 45001NFPARegistration or listing does not by itself mean a device is FDA approved or cleared. Confirm model-specific status and intended use with the manufacturer and the relevant regulator before purchase.
What's included
- Hyperbaric chamber (1-seat monoplace)
- Air cooler
- BIBS oxygen mask
- Internal and external control panels

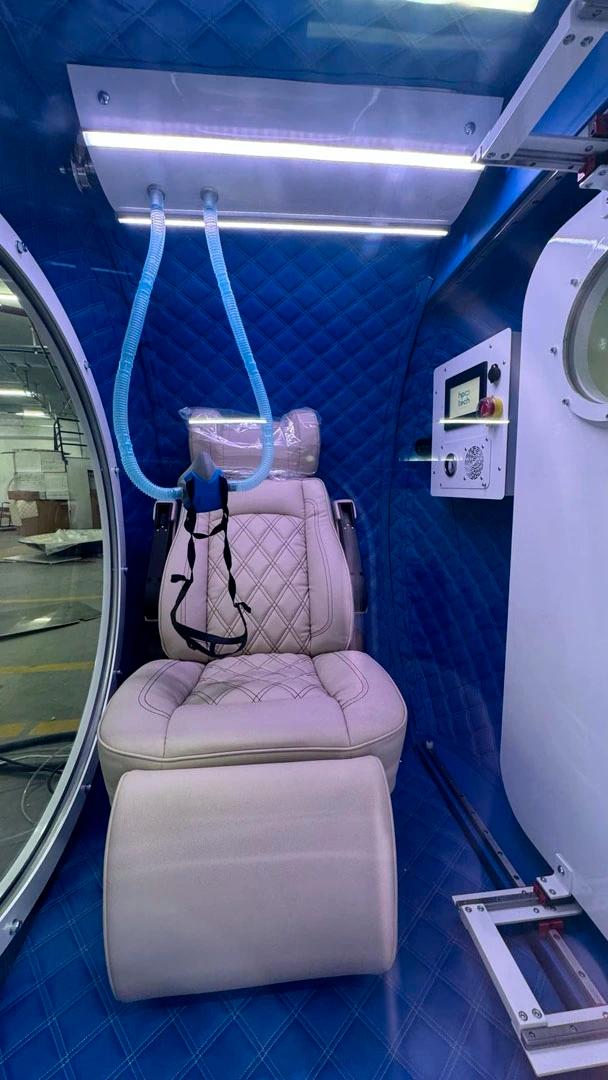

- Ergonomic seating with leather upholstery
