HyperMax Oxygen · EWOT system

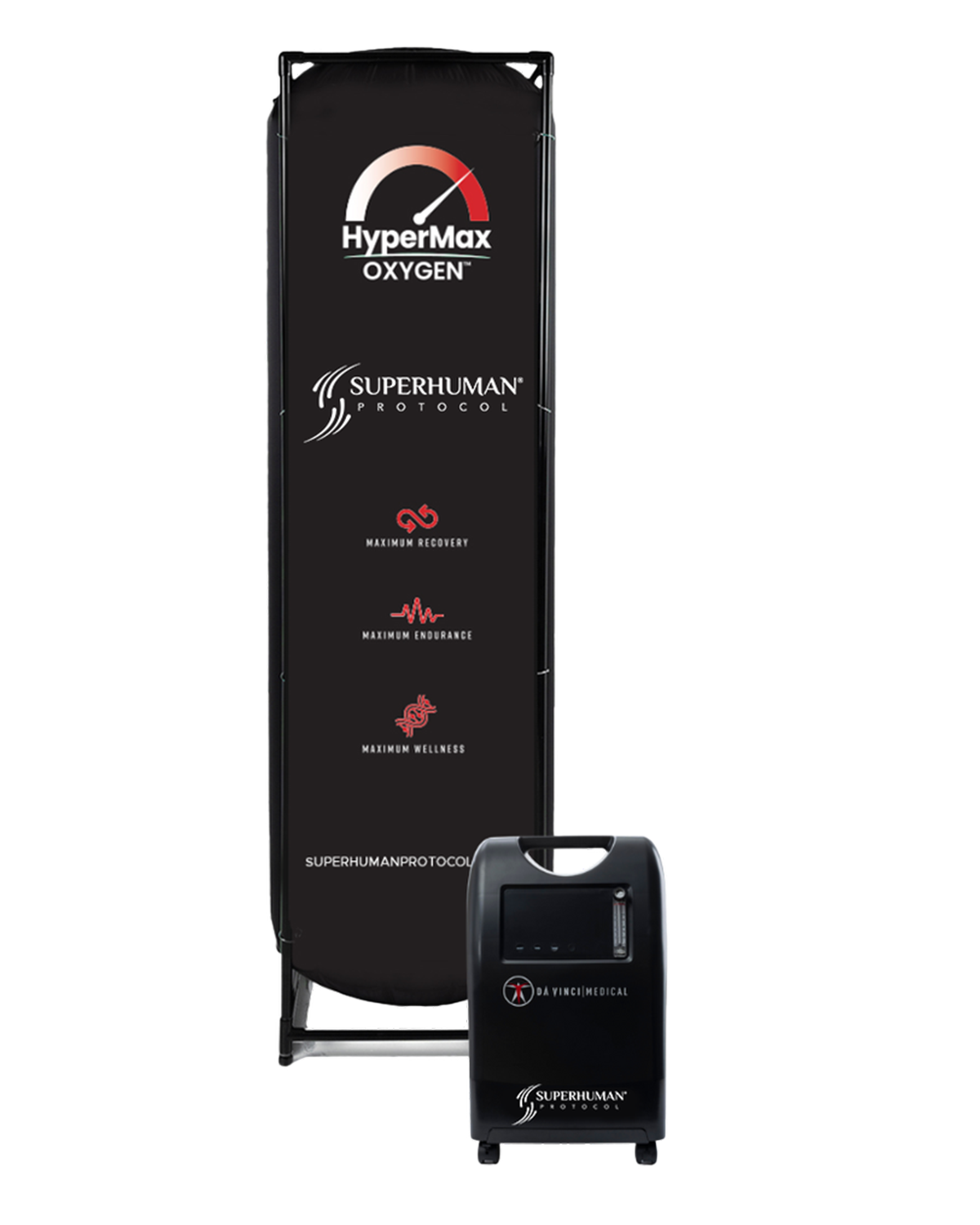

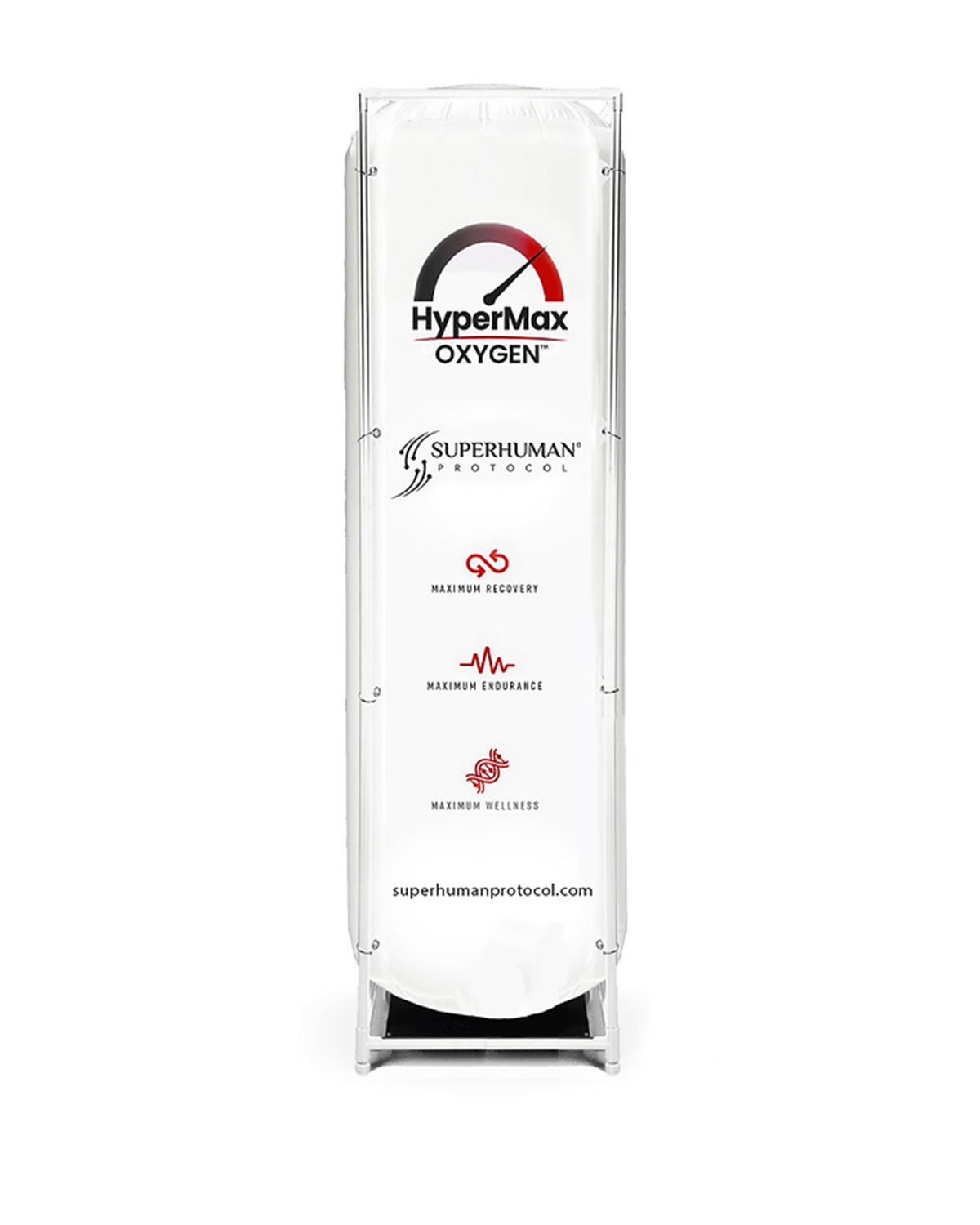

The HyperMax EWOT System is a high-flow oxygen delivery rig for exercise with oxygen training. An oxygen concentrator fills a 900-litre upright reservoir cylinder with 93% concentrated oxygen; the user exercises on their own cardio equipment while breathing from that reservoir through a high-flow HyperMask that separates inhaled from exhaled gas, so the wearer draws stored oxygen rather than room air. The reservoir sits on a PVC stand occupying roughly a 26-inch square footprint. The concentrator is a separate unit — the manufacturer specifies a minimum 10 LPM output — and the system itself carries no timer, gauge or flow valve, only a set of four corner weights that raise outflow pressure. It is sold as a general-wellness product and is not an FDA-cleared medical device.
Plan the room with a standard ewot (exercise with oxygen training) footprint, then confirm exact dimensions on the maker's spec sheet.
Explore this generic equipment footprint, then place it in your studio plan.

Generic reference model
4′ × 7.0′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
