MECOTEC · Whole-body cryotherapy chambers
MECOTEC cryo:one
MECOTEC's single-occupant chamber, cooled with breathable air rather than liquid nitrogen. It sits at the light-duty end of the range: roughly fifty minutes to pull down from warm, and a rating of twenty-five sessions a day, against the plus model's thirty-five minutes and one hundred.
Germany
Made in
Cryotherapy

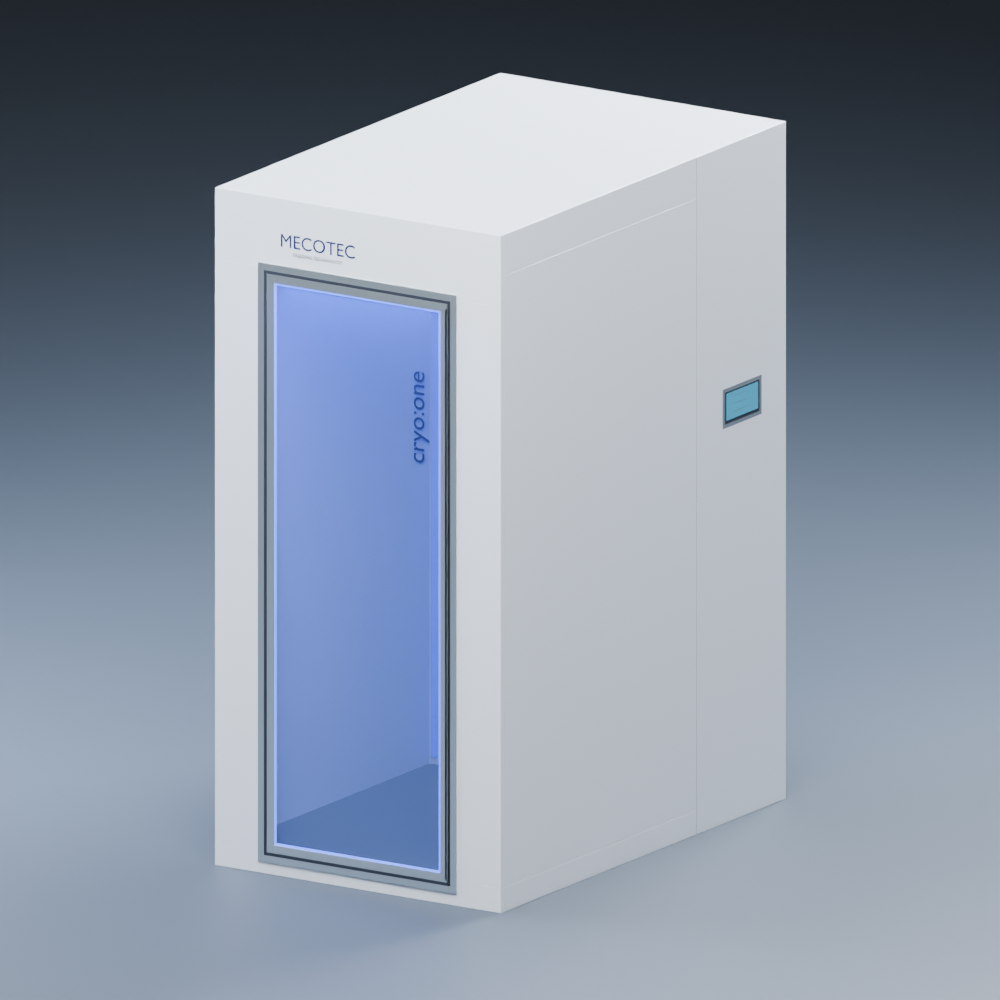

Interactive model
Inspect the unit from every angle and compare its footprint with your space.
Interactive model
MECOTEC cryo:one · rear cabinet
Inspect the reference model from every angle, then place it in the studio planner.
The slow idle rotation pauses while you drag and respects your reduced-motion preference.
Model envelope
- Width
- 1.2 m3.9 ft
- Depth
- 1.85 m6.1 ft
- Height
- 2.47 m8.1 ft
Model record
Praxium reconstruction of the closed rear-cabinet configuration. The published envelope is associated with current photographs by inference; confirm the revision and cabinet layout with MECOTEC. The manufacturer separately specifies a 2.50 m minimum ceiling. Door sweep and service access are excluded; fittings are approximate. Does not represent cryo:one+.
Dimensions: Manufacturer Ovtcharov partnership release: 1.20 m wide × 1.85 m deep × 2.47 m high
Open source recordKey features
- Nitrogen-free electric cooling on breathable air, so there is no liquid-nitrogen supply to manage and no oxygen-displacement hazard in the room
- MECOTEC Smart Control app runs the chamber from a phone or tablet
- Self-operating sessions, so a single-occupant chamber can turn over without an attendant driving the panel
- Daily operation reports

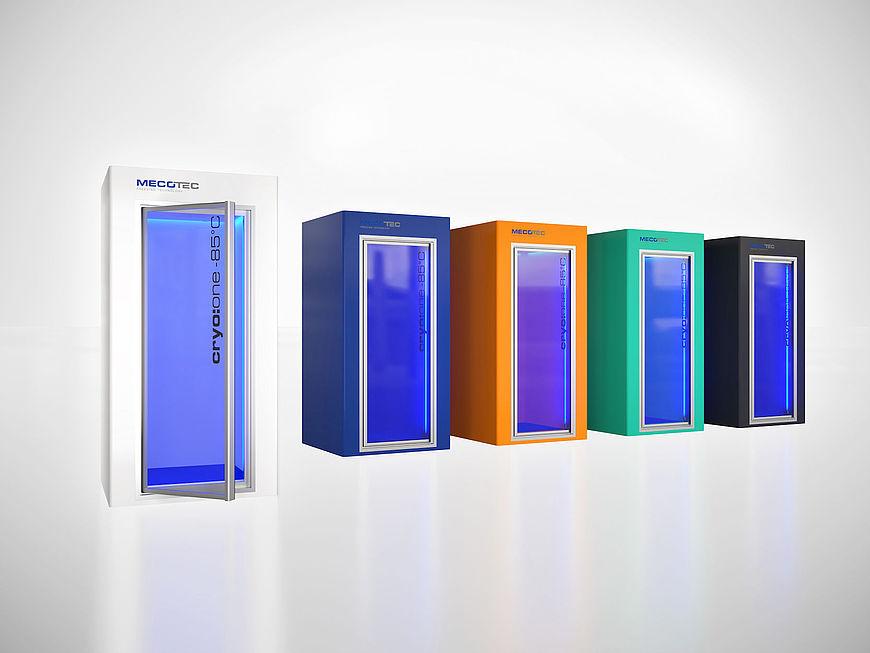

- Customizable LED lighting system and a tailored exterior finish
- Safety alert system
- Compact build with the engine cabinet placeable to the right, left or rear to suit the room
Specifications
- Capacity
- 1 person
- Real room temperature
- down to -85 C
- Windchill application temperature
- down to -120 C
- Cooling down time
- approx. 50 minutes
- Maximum sessions per day
- up to 25
- Cooling method
- Fully electric on breathable air; no liquid nitrogen
- Voltage
- 380-400 V, 3-phase, 50 Hz; or 460 V, 3-phase, 60 Hz
- Connected load
- 25 A
- Width
- 1.2 m
- Depth
- 1.85 m
- Height
- 2.47 m
- Minimum ceiling height
- 2.50 m
- Engine cabinet placement
- Right, left or rear
Compact fit
MECOTEC cryo:one is the tighter fit of the pair: its 1.2 m × 1.85 m floor plan comes in 0.3 m narrower and 0.3 m shallower than the MECOTEC cryo:one+. It stands 2.47 m tall under the 2.50 m ceiling it asks for, leaving 0.03 m to spare.
Product-row differences
Direct product-row facts compared with MECOTEC cryoair multi/multi+; shared values are omitted.
Financing: this product lists Financing options available for business customers, quoted by MECOTEC.
Product details
- Financing
- Financing options available for business customers, quoted by MECOTEC
MECOTEC cryo:one vs MECOTEC cryo:one+
MECOTEC cryo:one+ is the nearest spec-sheet match we list — both sheets side by side, with each row's spread.
| Spec | MECOTEC cryo:one | MECOTEC cryo:one+ | Difference |
|---|---|---|---|
| Capacity | 1 person | 2 persons | Differs |
| Real room temperature | down to -85 C | down to -85 C | Same |
| Windchill application temperature | down to -120 C | down to -122 C | Differs |
| Cooling down time | approx. 50 minutes | approx. 35 minutes | Differs |
| Maximum sessions per day | up to 25 | up to 100 | Differs |
| Cooling method | Fully electric on breathable air; no liquid nitrogen | Fully electric on breathable air; no liquid nitrogen | Same |
| Voltage | 380-400 V, 3-phase, 50 Hz; or 460 V, 3-phase, 60 Hz | 380-400 V, 3-phase, 50 Hz; or 460 V, 3-phase, 60 Hz | Same |
| Connected load | 25 A | 32 A | Differs |
| Width | 1.2 m | 1.5 m | 0.3 m spread |
| Depth | 1.85 m | 2.15 m | 0.3 m spread |
| Height | 2.47 m | 2.52 m | 0.05 m spread |
| Minimum ceiling height | 2.50 m | 2.50 m | Same |
| Engine cabinet placement | Right, left or rear | Right, left or rear | Same |
| Interior space | — | About 50 per cent more than the cryo:one | — |
| Continuous operation | — | Designed for all-day commercial use of up to 10 hours | — |
