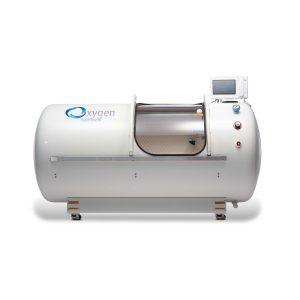

Oxygen Health Systems · Hyperbaric chamber
A rigid steel-shell single-occupant hyperbaric chamber rated to 2.0 ATA, with an incremental pressure selector, an integrated oxygen concentrator, and a digital console for pressure and session timing. Oxygen Health Systems builds this hard-shell monoplace line in 30, 34, 36 and 40 inch diameters; the 2.0 ATA variants share the same multi-pressure control surface and differ mainly in cabin diameter and price.
Plan the room with a standard hyperbaric oxygen footprint, then confirm exact dimensions on the maker's spec sheet.
Explore this generic equipment footprint, then place it in your studio plan.

Generic reference model
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
