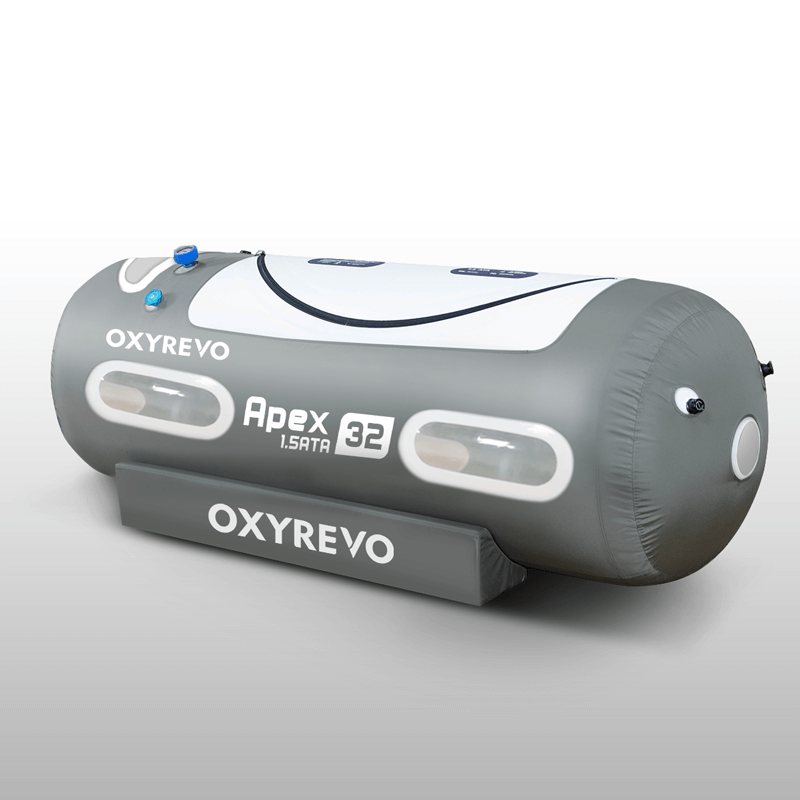

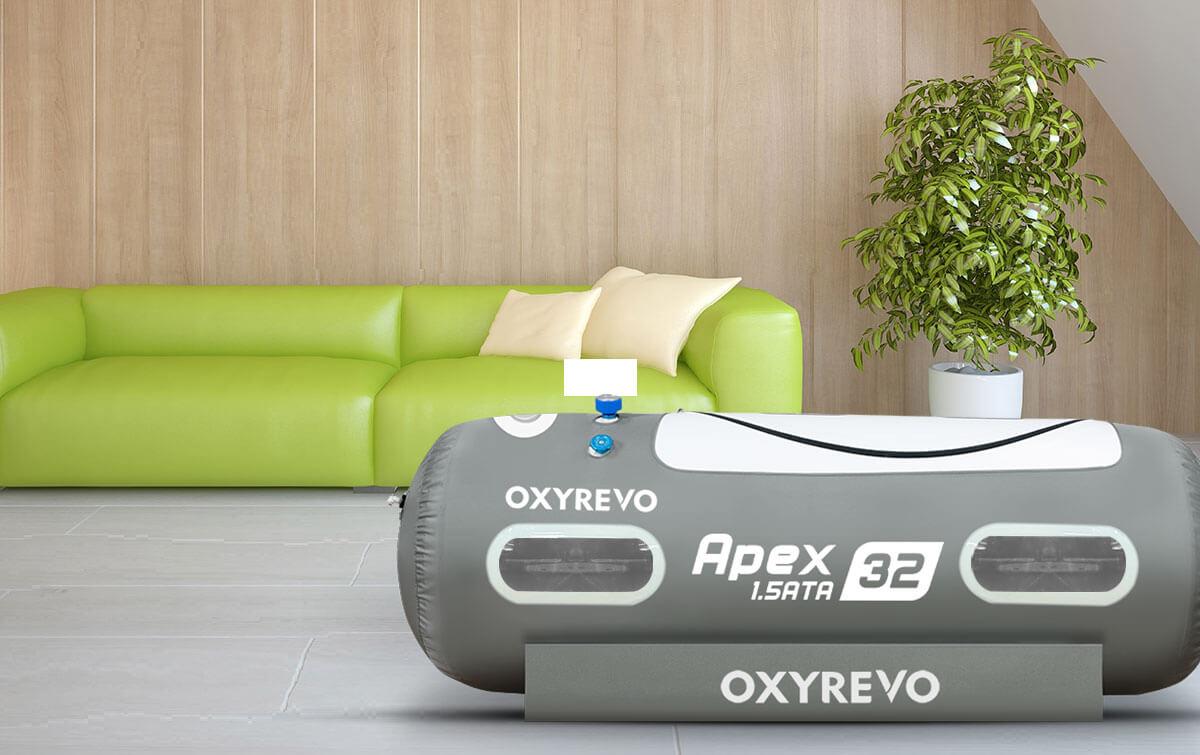

OxyRevo · Portable Lying Hyperbaric Chamber
OxyRevo Apex32
Shares the Elite32's 32-inch footprint but trades gentle entry for a higher ceiling: 1.5 ATA rather than 1.4, seven windows rather than five, and a converter that starts a step firmer at 1.2 ATA. A 660/850 nm red light panel is offered as a build option.
China
Made in
Hyperbaric oxygen
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Hyperbaric chamber
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- 1.5 ATA working pressure — the highest OxyRevo publishes for a soft lying chamber — stepped 1.2, 1.3, 1.4, 1.5 ATA
- Seven double-layered windows, two more than either Elite model at the same 32 in diameter
- Optional integrated red light panel: 660 nm red and 850 nm near-infrared on 24 V DC, switched from inside the chamber
- Quiet automatic pressure relief valves, designed to spread the airflow and cut valve noise during a session
- Emergency valve rated by the maker for an approximately 30-second exit
- Supplied with a 10 L oxygen concentrator at 90-97% purity
Specifications
- Working pressure
- 1.5 ATA
- Pressure setpoints
- 1.2 / 1.3 / 1.4 / 1.5 ATA, selected by one-press converter
- Length
- 230 cm / 90 in
- Diameter
- 80 cm / 32 in
- Weight
- 15 kg / 33 lb
- Windows
- 7 large double-layered
- Sound level
- ≤50 dB
- Oxygen concentrator
- 10 L, 90-97% purity
- Shell material
- Medical-grade TPU, high-frequency heat welded (no glue, no stitched seams)
- Cover colour
- Grey; OEM colours available
- Optional red light panel
- 660 nm red / 850 nm near-infrared, 24 V DC, control inside the chamber
- Emergency egress
- Approx. 30 seconds via emergency valve
Product-row differences
Direct product-row facts compared with OxyRevo Apex36; shared values are omitted.
Warranty: this product lists OxyRevo states that all of its hyperbaric chambers ship with an international warranty. No term length is published on the product page or the company page..
Product details
- Warranty
- OxyRevo states that all of its hyperbaric chambers ship with an international warranty. No term length is published on the product page or the company page.
