OxyRevo · Portable Lying Hyperbaric Chamber

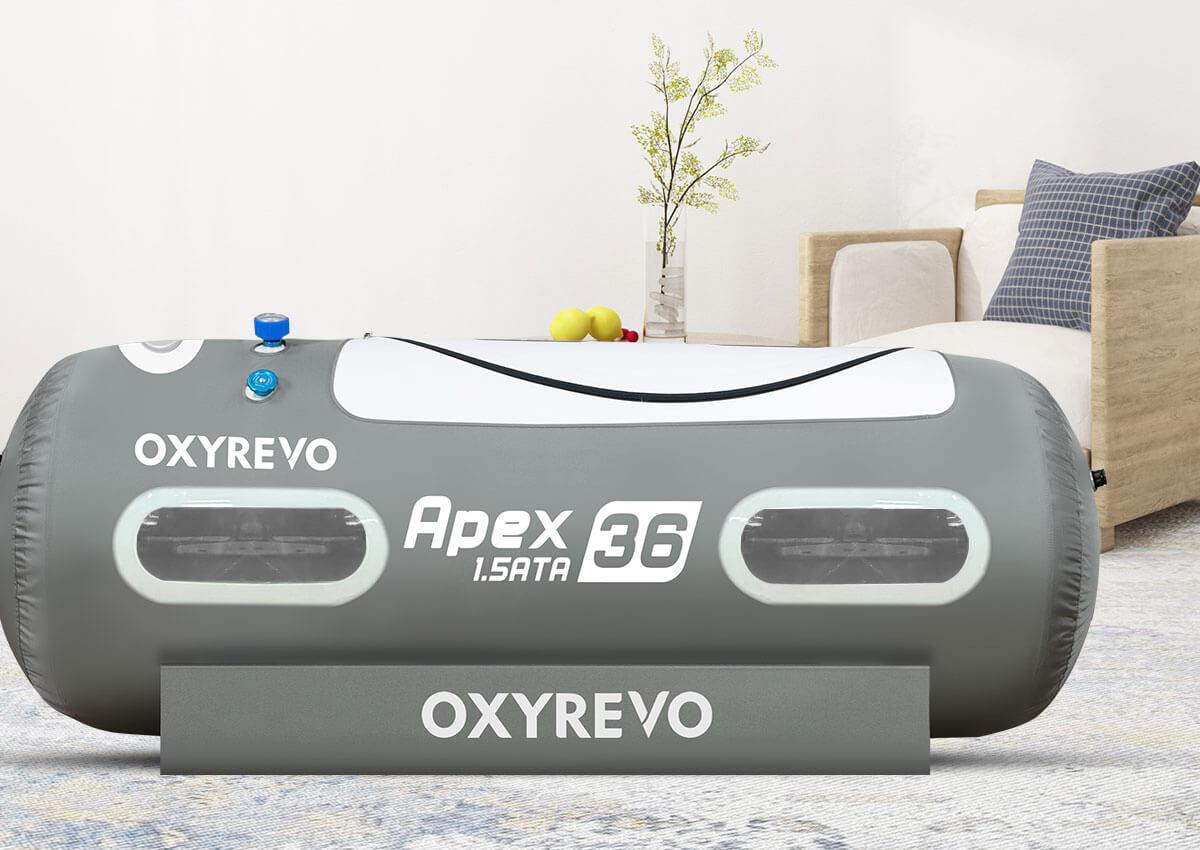

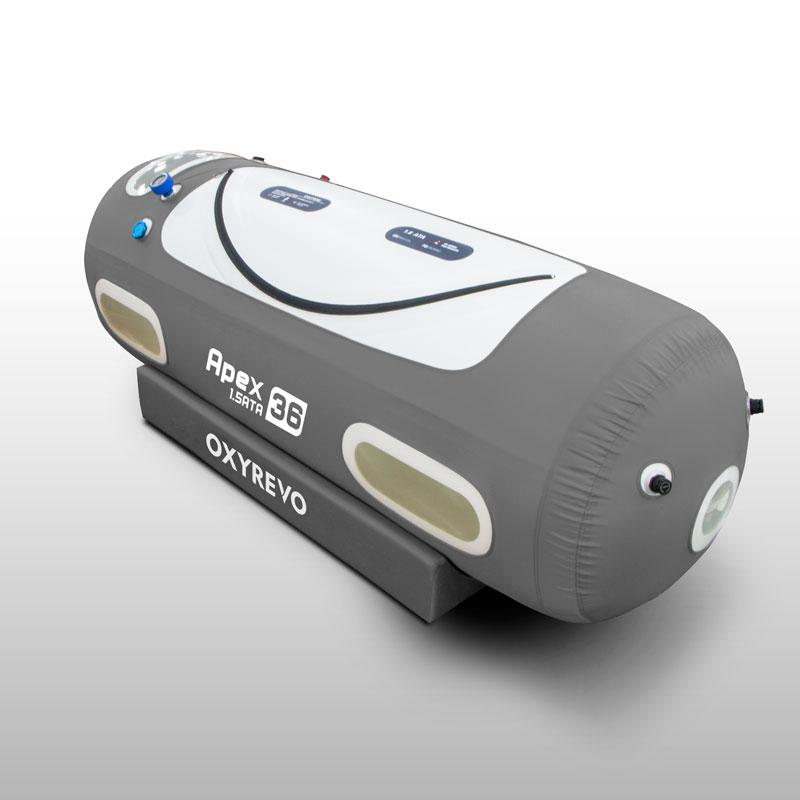

OxyRevo Apex36
OxyRevo's largest soft lying chamber: 90 inches long and 36 across, roomy enough for an adult with a child alongside, and glazed with seven windows rather than the five on the narrower models. At 37 lb one person can reposition it. The one-press converter steps through four positions, 1.2 to 1.5 ATA.
China
Made in
Hyperbaric oxygen
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Hyperbaric chamber
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- Seven large double-layered windows for wide interior visibility
- Curved zipper design with medical-grade silicone seal strip, inside and outside zippers for unassisted self-use
- Heat-welded seams — no toxic glues or sewing
- UV laser-printed valve labels (no glued paper stickers)
- One-press pressure adjustment converter for 1.2, 1.3, 1.4 or 1.5 ATA
- Quiet automatic pressure relief valves
- Dual aviation-grade pressure gauges, readable inside and outside
- Dual (internal/external) pressure release control
- Emergency valve for ~30-second exit
- Memory-foam slow-rebound mattress
- 10L oxygen concentrator, 90-97% purity
- Dual air filters (intake and exhaust, PM2.5 removal)
- Internal frame holding chamber structure before inflation
- Choice of Standard Kit (compressor, 10L concentrator, 1 dehumidifier) or Pro Kit (adds a second dehumidifier, anion + air purifier system, and a Timer & Alarm unit)
- Optional integrated red light therapy panel (660nm/850nm, 24V DC, internal control)
Specifications
- Working pressure
- 1.5 ATA rated; adjustable to 1.2 / 1.3 / 1.4 / 1.5 ATA via the one-press converter
- Weight
- 17 kg / 37 lbs
- Length
- 230 cm / 90 inches
- Diameter
- 90 cm / 36 inches
- Windows
- 7 large double-layered windows
- Sound level
- Under 50 dB
- Chamber type
- Soft-shell, portable, lying
- Oxygen concentrator
- 10 L, 90-97% purity
- Pressure gauges
- Dual aviation-grade, readable inside and outside
- Pressure release
- Dual internal / external control
- Emergency valve
- Approximately 30-second exit
- Zippers
- Dual YKK curved zippers, inside and outside, with medical-grade silicone seal strip
- Seam construction
- High-frequency heat-welded — no toxic glues, no sewing
- Air filtration
- Dual air filters, intake and exhaust, PM2.5 removal
- Mattress
- Memory-foam slow-rebound
- Cover colour
- Grey; OEM colours available
Product-row differences
Direct product-row facts compared with OxyRevo Apex32; shared values are omitted.
Product row lists in the box: Oil-free air compressor, 10L oxygen concentrator and Air dehumidifier.
What's included
- Oil-free air compressor
- 10L oxygen concentrator
- Air dehumidifier
