OxyRevo · Portable Lying Hyperbaric Chamber

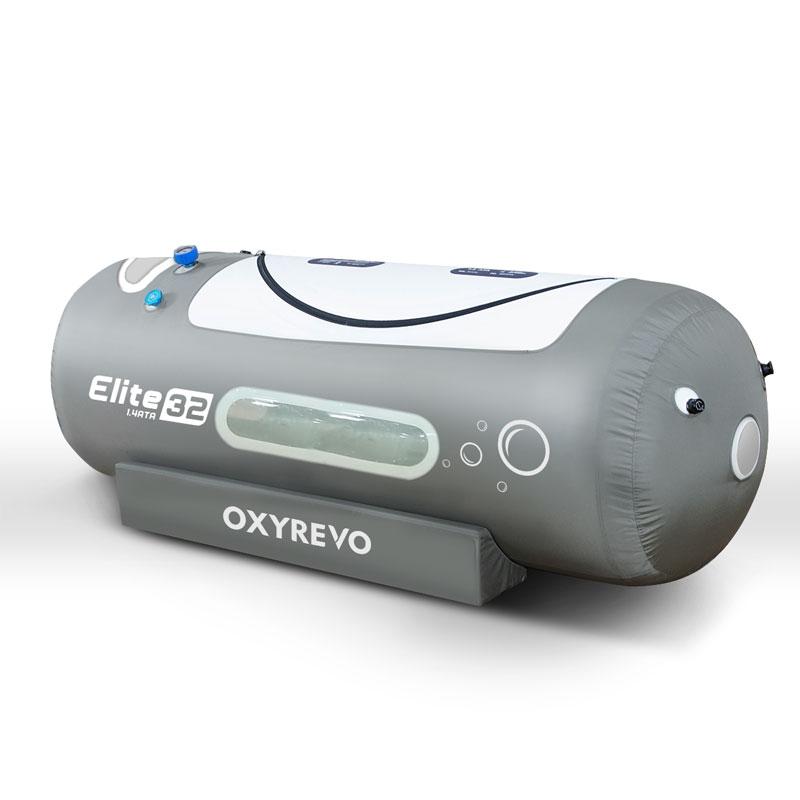

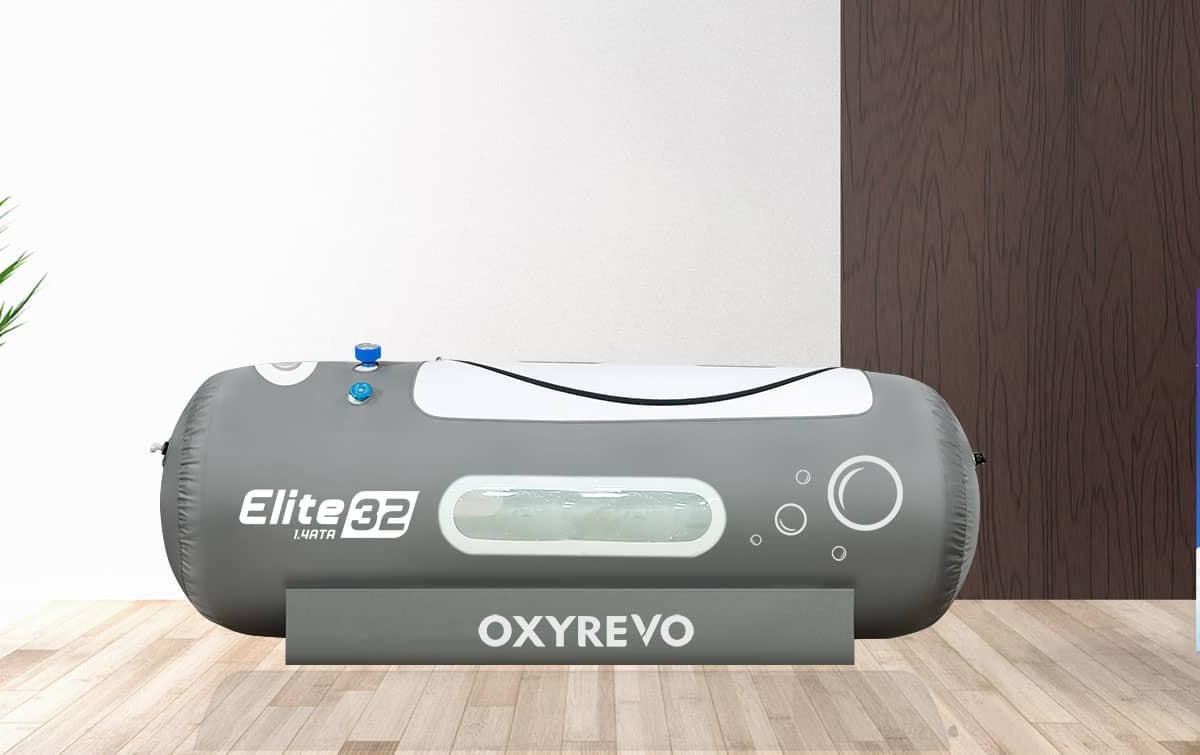

OxyRevo Elite32
The lightest chamber OxyRevo builds in this shape, at 28.6 lb, and the only one whose converter opens as low as 1.1 ATA — which is what makes it the gentler intake choice for someone who struggles to clear their ears. Ceiling is 1.4 ATA across a 90-inch by 32-inch lying shell.
China
Made in
Hyperbaric oxygen
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Hyperbaric chamber
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- 28.6 lb packed — the lightest model in OxyRevo's lying range, sold by the maker as its home-use size
- Converter floors at 1.1 ATA, the lowest entry step OxyRevo publishes on any chamber, under a 1.4 ATA ceiling
- Five large double-layered windows across the top, foot and sides
- Curved zipper running on a medical-grade silicone seal strip, doubled with YKK zippers inside and out
- Two air filters, one on each of the inlet and outlet paths, rated against PM2.5
- Supplied with a 10 L oxygen concentrator at 90-97% purity
Specifications
- Working pressure
- 1.4 ATA
- Pressure setpoints
- 1.1 / 1.2 / 1.3 / 1.4 ATA, selected by one-press converter
- Length
- 230 cm / 90 in
- Diameter
- 80 cm / 32 in
- Weight
- 13 kg / 28.6 lb
- Windows
- 5 large double-layered
- Sound level
- ≤50 dB
- Oxygen concentrator
- 10 L, 90-97% purity
- Shell material
- Medical-grade TPU, high-frequency heat welded (no glue, no stitched seams)
- Cover colour
- Grey; OEM colours available
- Emergency egress
- Approx. 30 seconds via emergency valve
Product-row differences
Direct product-row facts compared with OxyRevo Apex36; shared values are omitted.
Warranty: this product lists OxyRevo states that all of its hyperbaric chambers ship with an international warranty. No term length is published on the product page or the company page..
Product details
- Warranty
- OxyRevo states that all of its hyperbaric chambers ship with an international warranty. No term length is published on the product page or the company page.
