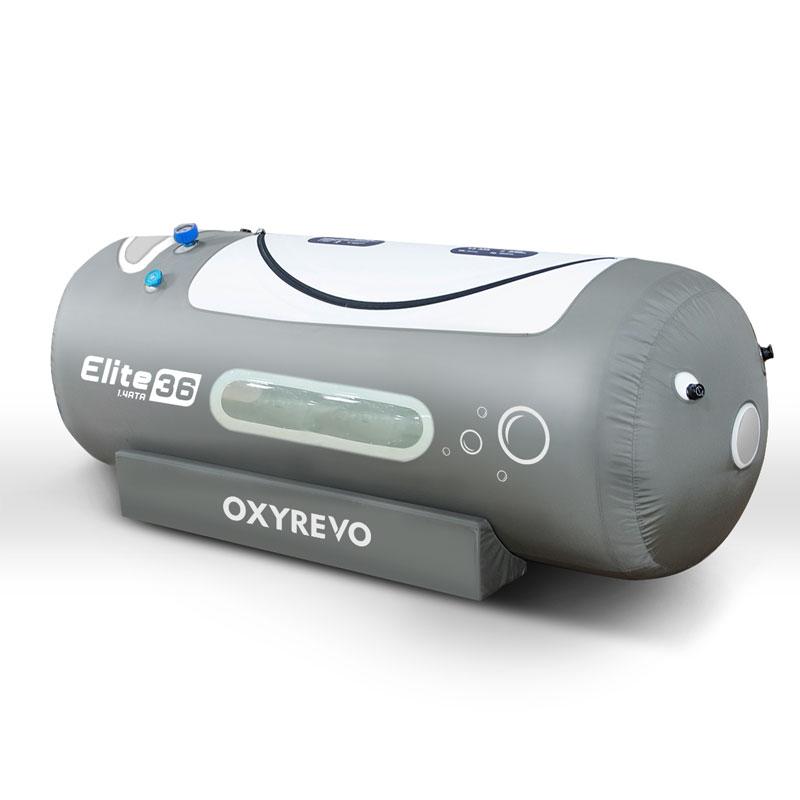

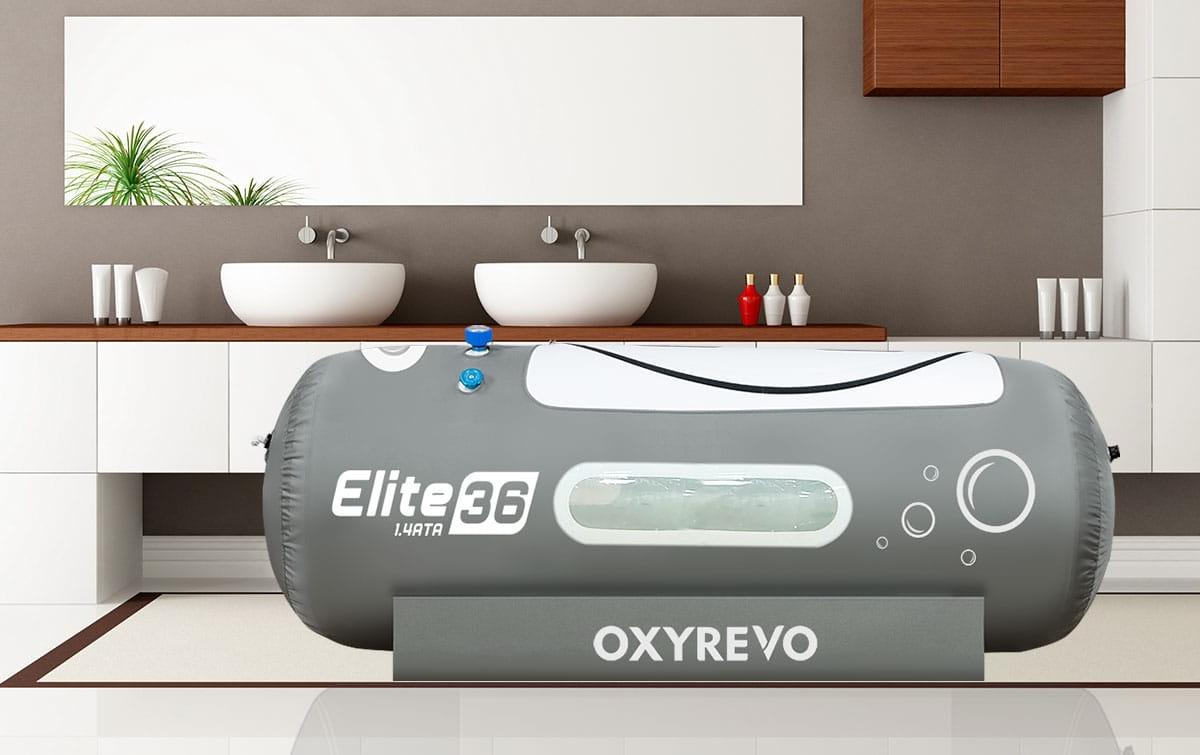

OxyRevo · Portable Lying Hyperbaric Chamber
OxyRevo Elite36
Same 1.4 ATA ceiling and the same five double-layered windows as the Elite32, but four inches wider inside: OxyRevo rates the 36-inch shell for two occupants or one adult with a child, and that extra volume costs about five pounds packed and a longer pressurisation.
China
Made in
Hyperbaric oxygen
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Hyperbaric chamber
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- Widest shell in OxyRevo's lying range at 36 in — the manufacturer rates it for two occupants, or one adult with a child
- 1.4 ATA working pressure, stepped through 1.1, 1.2, 1.3 and 1.4 ATA by a one-press converter
- Five large double-layered windows set into the top, foot and sides
- Dual aviation-grade pressure gauges and dual pressure release controls, inside and outside
- Heat-welded medical-grade TPU shell — no glue and no stitched seams
- Supplied with a 10 L oxygen concentrator at 90-97% purity and a memory-foam slow-rebound mattress
Specifications
- Working pressure
- 1.4 ATA
- Pressure setpoints
- 1.1 / 1.2 / 1.3 / 1.4 ATA, selected by one-press converter
- Length
- 230 cm / 90 in
- Diameter
- 90 cm / 36 in
- Weight
- 15 kg / 33 lb
- Windows
- 5 large double-layered
- Sound level
- ≤50 dB
- Oxygen concentrator
- 10 L, 90-97% purity
- Shell material
- Medical-grade TPU, high-frequency heat welded (no glue, no stitched seams)
- Cover colour
- Grey; OEM colours available
- Emergency egress
- Approx. 30 seconds via emergency valve
Product-row differences
Direct product-row facts compared with OxyRevo Apex36; shared values are omitted.
Warranty: this product lists OxyRevo states that all of its hyperbaric chambers ship with an international warranty. No term length is published on the product page or the company page..
Product details
- Warranty
- OxyRevo states that all of its hyperbaric chambers ship with an international warranty. No term length is published on the product page or the company page.
