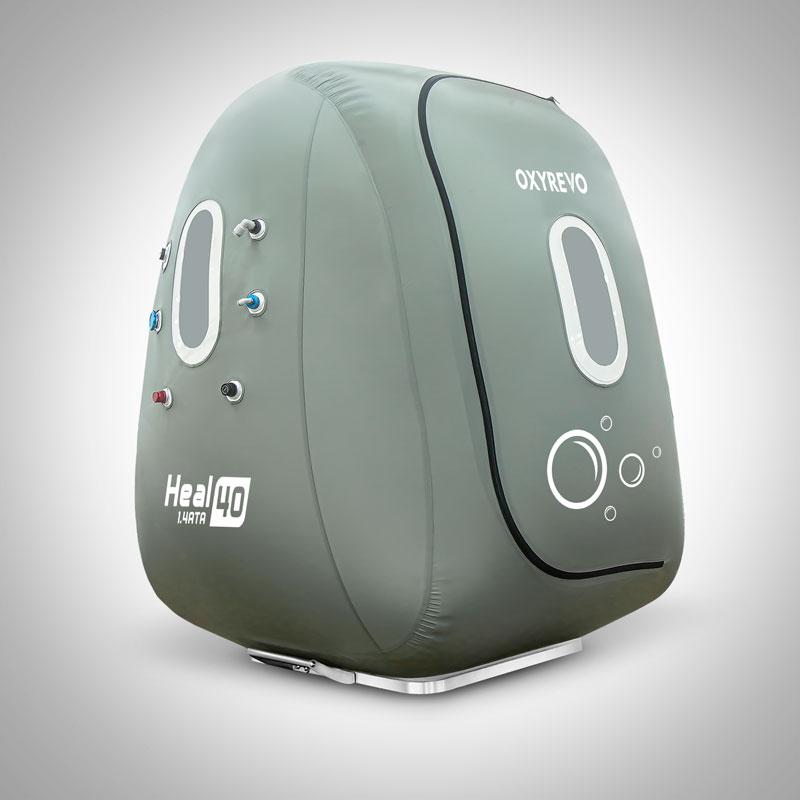

OxyRevo · Portable Wheelchair Hyperbaric Chamber
OxyRevo Heal40

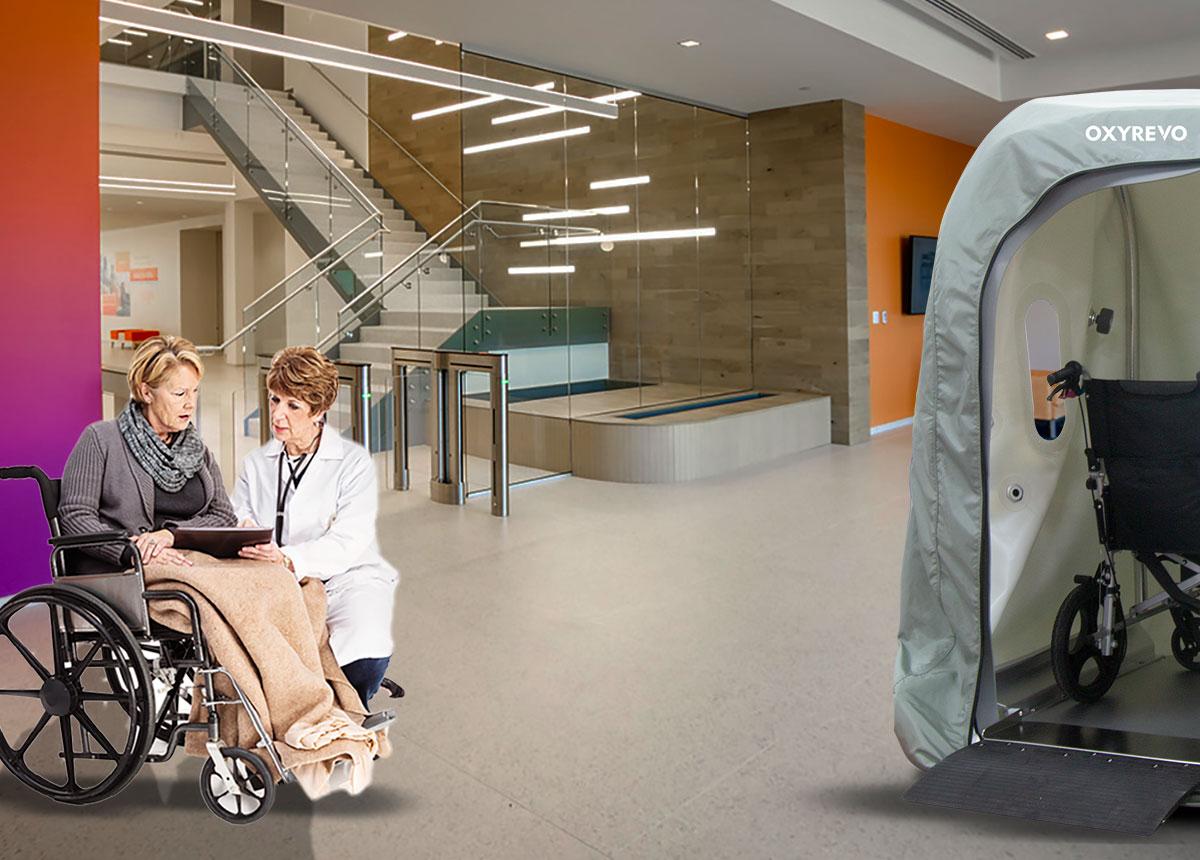

A soft-shell chamber that a wheelchair rolls into: a solid aluminium floor with an entry slope replaces the fabric base that leaves a chair unstable in other soft chambers. Rated 1.4 ATA, with a one-press converter offering three setpoints — 1.2, 1.3 and 1.4 — one position fewer than OxyRevo's lying models.
China
Made in
Hyperbaric oxygen
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Hyperbaric chamber
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- Solid aluminum base with entry slope for stable wheelchair access (also usable with a regular chair)
- Four large double-layered windows for natural light and reduced claustrophobia
- Curved zipper design with medical-grade silicone seal strip for smooth, easy opening and closing
- Heat-welded seams — no toxic glues or sewing
- UV laser-printed valve labels (no glued paper stickers)
- One-press pressure adjustment converter for 1.2, 1.3 or 1.4 ATA
- Quiet automatic pressure relief valves
- Dual aviation-grade pressure gauges, readable inside and outside
- Dual (internal/external) pressure release control
- Emergency valve for ~30-second exit
- Memory-foam slow-rebound mattress
- 10L oxygen concentrator, 90-97% purity
- Dual air filters (intake and exhaust, PM2.5 removal)
- Internal frame holding chamber structure before inflation
Specifications
- Working pressure
- 1.4 ATA rated; adjustable to 1.2 / 1.3 / 1.4 ATA via the one-press converter
- Weight
- 95 lb (43 kg)
- Dimensions
- 67 x 62 x 75 in (length x width x height)
- Chamber type
- Soft-shell, upright, wheelchair accessible
- Base
- Solid aluminium with entry slope for wheelchair access
- Windows
- 4 large double-layered windows
- Sound level
- Under 50 dB
- Oxygen concentrator
- 10 L, 90-97% purity
- Pressure gauges
- Dual aviation-grade, readable inside and outside
- Pressure release
- Dual internal / external control
- Emergency valve
- Approximately 30-second exit
- Air filtration
- Dual air filters, intake and exhaust, PM2.5 removal
- Seam construction
- Heat-welded — no toxic glues, no sewing
- Mattress
- Memory-foam slow-rebound
- Valve labelling
- UV laser-printed, not glued paper stickers
Footprint
The OxyRevo Heal40 lists a 62 in × 67 in footprint.
