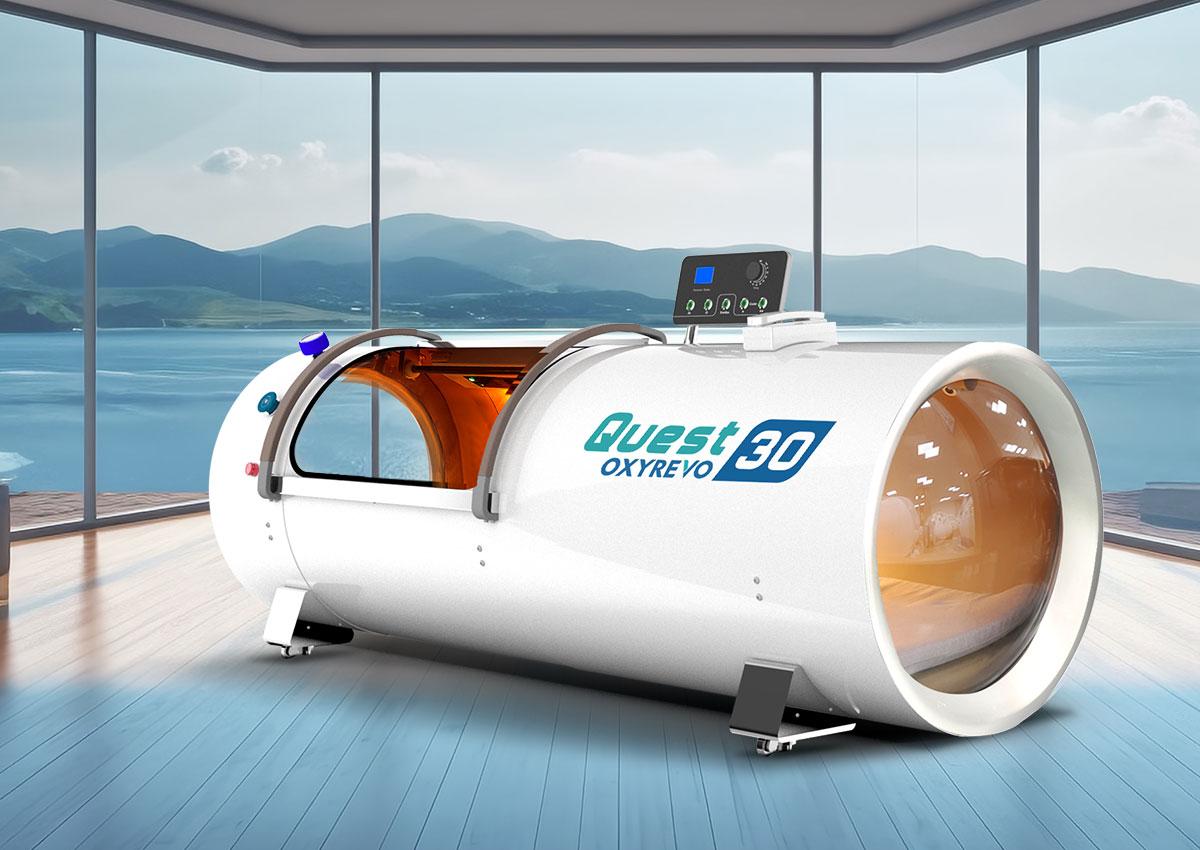

OxyRevo · Hard Lying Hyperbaric Chamber
A stainless-steel lying chamber 89 inches long and 30 across, sized for a single adult. Control panels and digital displays sit inside as well as outside, so the occupant can run the session unaided, and a door sensor blocks pressurisation until the door is fully shut. Built at 1.5, 1.6 or 2.0 ATA.
Plan the room with a standard hyperbaric oxygen footprint, then confirm exact dimensions on the maker's spec sheet.
Explore this generic equipment footprint, then place it in your studio plan.

Generic reference model
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in plannerDirect product-row facts compared with OxyRevo Quest36; shared values are omitted.
Product row lists in the box: Air filter, Humidity water container and Spare filters and fuses.
