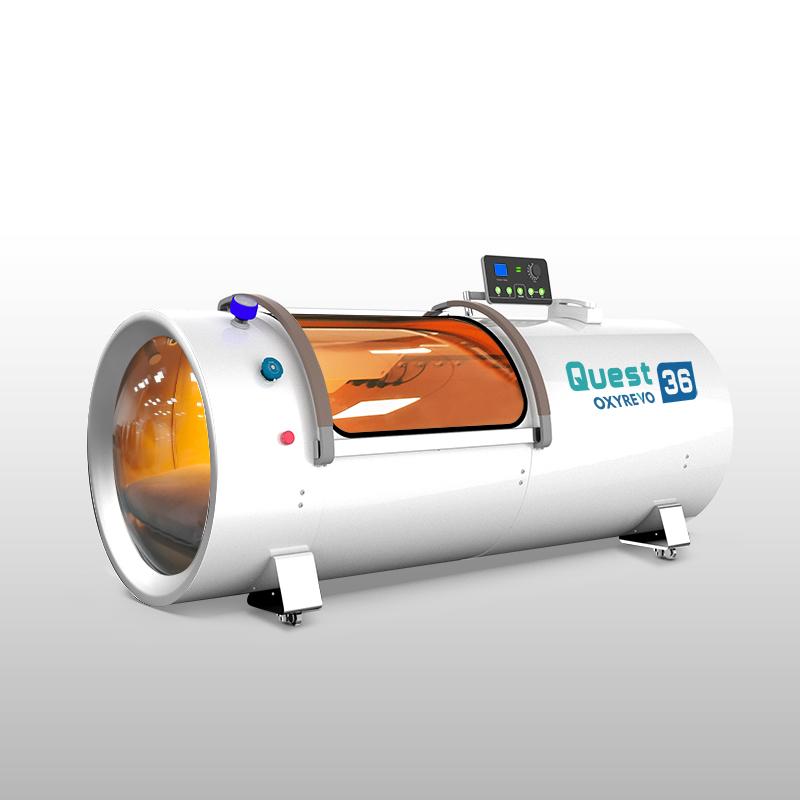

OxyRevo · Hard Lying Hyperbaric Chamber
The wide build of OxyRevo's hard lying chamber: the same 89-inch length as the Quest30 but six inches more across, which is what makes room for a larger athlete or an adult with a child alongside. That width costs 66 lb more to move and wants a correspondingly wider doorway. Built at 1.5, 1.6 or 2.0 ATA.
Plan the room with a standard hyperbaric oxygen footprint, then confirm exact dimensions on the maker's spec sheet.
Explore this generic equipment footprint, then place it in your studio plan.

Generic reference model
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in plannerDirect product-row facts compared with OxyRevo Quest30; shared values are omitted.
Product row lists in the box: Spare filters.
