Rejuve Lab · Multiplace Hyperbaric Chamber

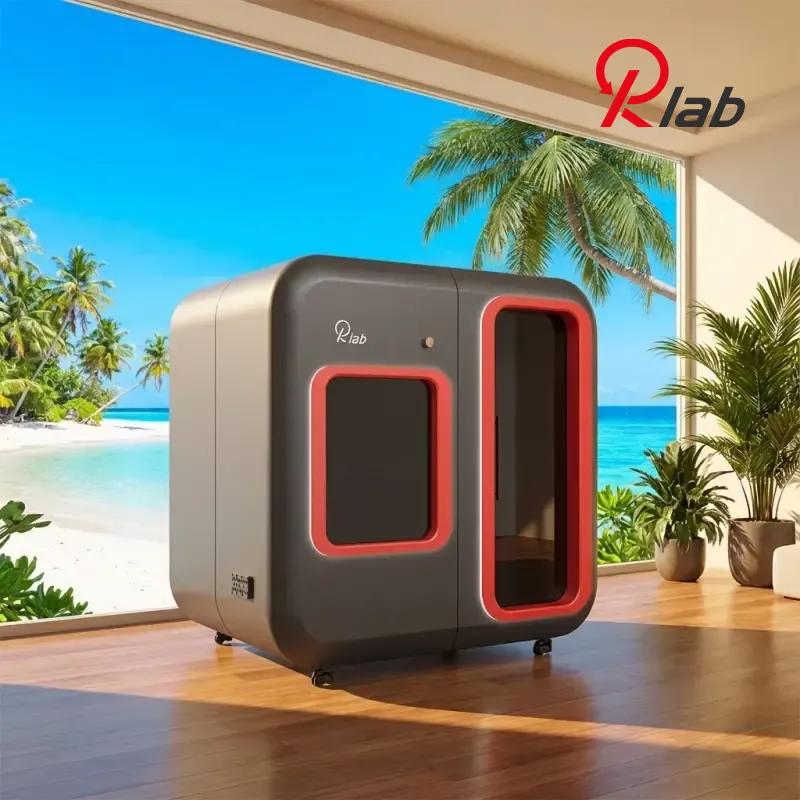

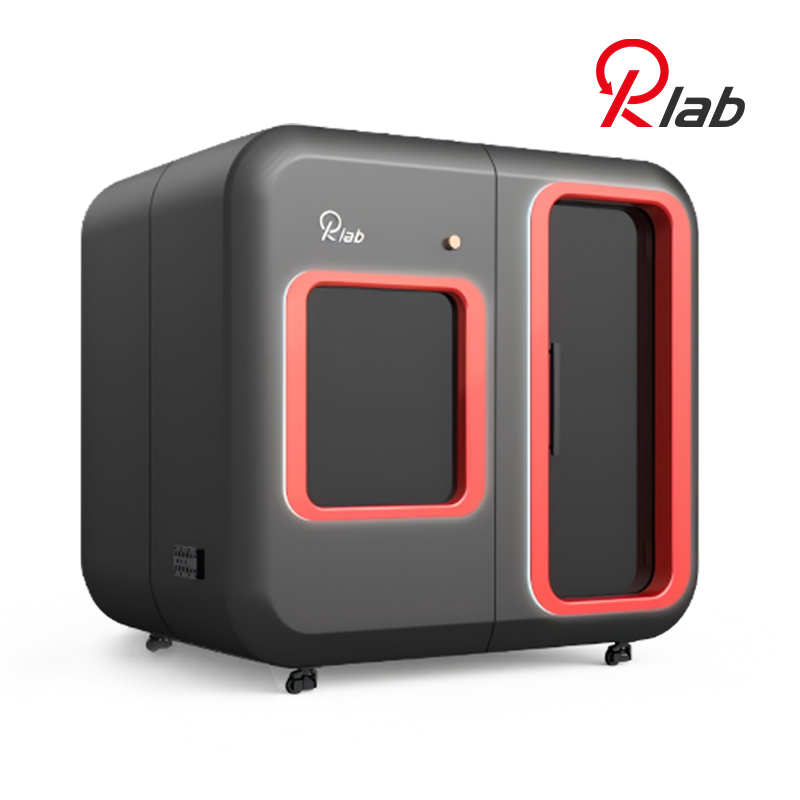

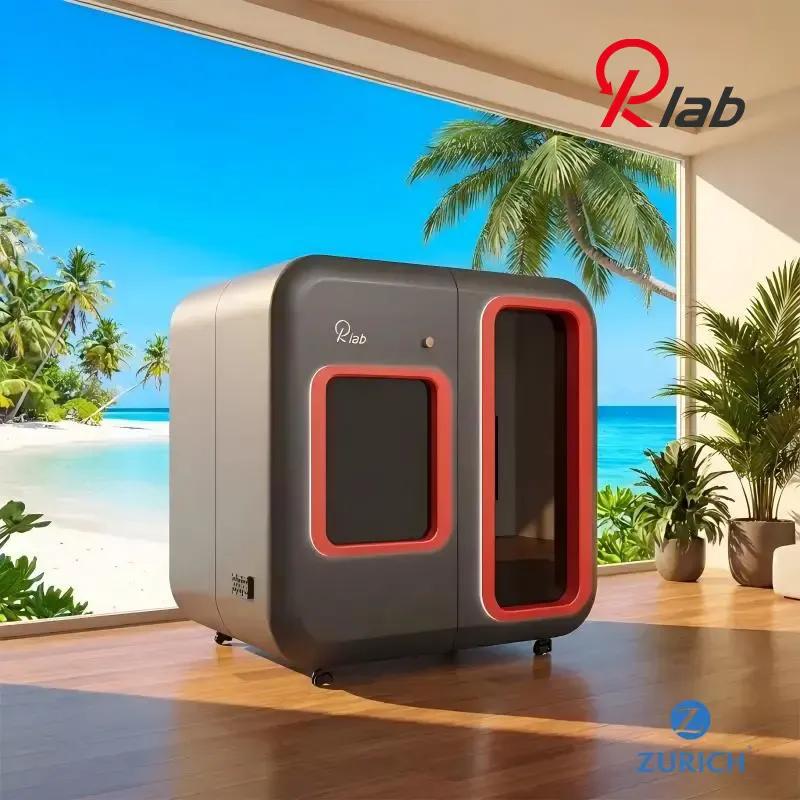

Rejuve Lab HBO-QR200
Rlab's carbon-fibre multiplace chamber, built from T700 composite for four to six occupants at a single 1.9 ATA build. It is about half a metre broader than the steel SS200 and a third heavier at 1300 kg, with compressor, concentrator and cooler packed into one host cabinet.
China
Made in
Hyperbaric oxygen
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Hyperbaric chamber
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features

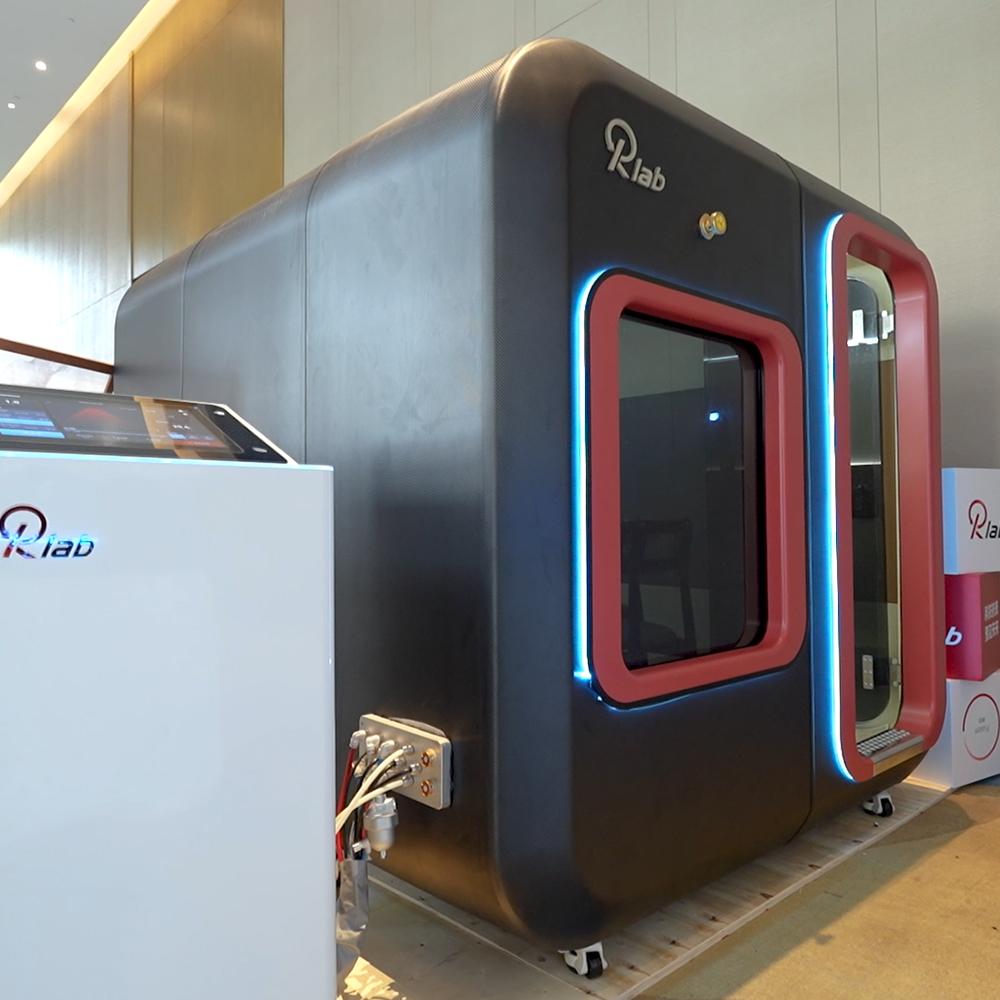

- Host cabinet bundles the air compressor, oxygen concentrator and cooler into one 225 kg body, so no separate plant room has to be sited
- Rlab describes the system as installation-free
- Chamber can be controlled from inside as well as outside
- Seats and a first-aid system fitted as standard
- Pressure build is chosen at order rather than dialled per session
- Exterior colour and finish customizable
Specifications
- Model
- HBO-QR200
- Capacity
- 4-6 people
- Working pressure
- 1.9 ATA, specified at order (Rlab lists other pressures as customizable)
- Material
- T700 carbon fibre
- Chamber dimensions
- 2216 mm long x 2415 mm wide x 2096 mm high
- Chamber weight
- 1300 kg
- Host unit dimensions
- 560 mm x 1010 mm x 1280 mm
- Host unit weight
- 225 kg
- Oxygen concentration
- 90 plus or minus 3 per cent
- Voltage
- 220 V 50 Hz (customizable)
- Power
- 6.3 kW
- Control panel
- Touch digital display, operable from inside and outside the chamber
- Certification
- CE
Product-row differences
Direct product-row facts compared with Rejuve Lab HBO-DR250; shared values are omitted.
Made in: this product lists China.
Product row lists in the box: Chamber with fitted seating, First-aid system and Integrated host cabinet (air compressor, oxygen concentrator and cooler).
Product row lists certifications: CE.
Product details
- Regulatory status & certifications
- CERegistration or listing does not by itself mean a device is FDA approved or cleared. Confirm model-specific status and intended use with the manufacturer and the relevant regulator before purchase.
What's included
- Chamber with fitted seating
- First-aid system
- Integrated host cabinet (air compressor, oxygen concentrator and cooler)
