SaunaCloud · Infrared saunas (commercial)
Atlas One
The only sauna in SaunaCloud's range with red light built in as standard rather than sold as an add-on: the panels sit in the bench seat and backrest, two to four inches from the skin, instead of on a wall a foot or more away. Far infrared and red light run separately or together in one session.
USA/Canada
Made in
Infrared saunaRed light therapy
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Sauna cabin
6.5′ × 6.5′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Generic reference model
Infrared panel
4.0′ × 2.0′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Generic reference model
Red light bed
7.1′ × 3.6′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- Full-surround VantaWave far infrared heaters

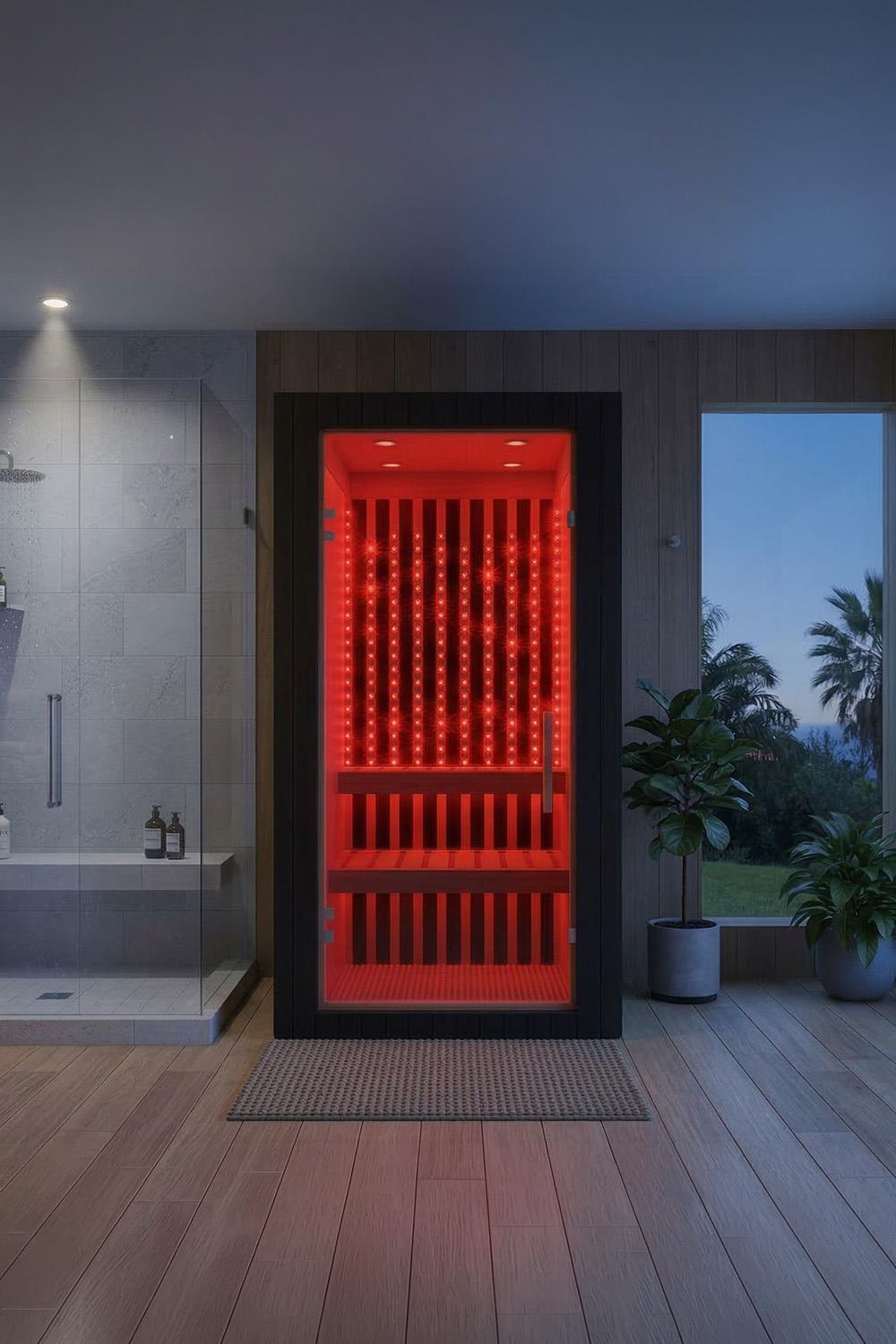

- Red light therapy integrated into the bench seat and backrest at 2-4 inch proximity — standard on this model, an optional add-on on every other SaunaCloud model
- Far infrared and red light run independently or simultaneously in a single session
- Solid kiln-dried Western Red Cedar construction, no veneers
- CORE 5 digital control with app-based remote start and status
- Chromotherapy LED lighting and Bluetooth audio
- Built to the buyer's exact cabin dimensions rather than a fixed catalogue size
Specifications
- Exterior dimensions
- 49.5"W x 52.25"D x 84"H (reference configuration — every SaunaCloud cabin is built to the buyer's own dimensions)
- Interior dimensions
- 38"W x 46"D x 80"H (reference configuration)
- Capacity
- 1-4 people depending on the custom dimensions ordered
- Weight
- ~725 lbs
- Heater power
- 6 kW
- Heater surface temperature
- 190 degF (heaters reach 200 degF) — a heater SURFACE figure, not a cabin thermostat setting
- Infrared wavelength peak
- 7.9 microns; 0.97 surface emissivity
- Red light wavelengths
- 660 nm red + 850 nm near-infrared per this model's own product page. SaunaCloud's model-comparison page instead states 630 nm + 850 nm for the Atlas One — the manufacturer's two pages disagree on the red figure; confirm before quoting
- Red light placement
- Integrated into bench seat and backrest at a 2-4 inch treatment distance
- Electrical
- 240V single-phase, 25A circuit, dedicated 30A breaker, hardwired, 10-gauge copper with GFCI
- EMF
- <0.20 mG average at seated position with the full system live; VantaWave heaters rated under 0.5 mG
- Wall thickness
- 5.75 inches
- Construction
- 100% solid Western Red Cedar — no plywood, glue or MDF
- Control system
- CORE 5 power supply with digital temperature control from 100 degF; proprietary iOS/Android app and Wi-Fi controller for remote start, temperature and red light toggle
- Placement rating
- Rated for indoor or outdoor placement
- Additional fittings
- Chromotherapy LED lighting and Bluetooth audio
Footprint
The SaunaCloud Atlas One lists a 49.5 in × 52.25 in footprint.
Product-row differences
Direct product-row facts compared with SaunaCloud Sierra; shared values are omitted.
Warranty: this product lists Heaters 7 years; power/controls 3 years; lights/accessories 1 year; SaunaCloud Sierra lists Limited lifetime residential warranty: heaters 7 years, power/controls/junction boxes 3 years, lights/speakers/accessories 1 year; commercial 1-year parts.
Lead time: this product lists Most orders ship within 7-11 weeks of final design approval; SaunaCloud Sierra lists 7-11 weeks post-design approval.
Product row lists in the box: Room-specific VantaWave heaters, CORE 5 power supply and controls, Thermostat, Frames and heater placement plans, Wiring and hardware and Full electrical plans for the installing electrician.
Product details
- Warranty
- Heaters 7 years; power/controls 3 years; lights/accessories 1 year
- Lead time
- Most orders ship within 7-11 weeks of final design approval
What's included
- Room-specific VantaWave heaters
- CORE 5 power supply and controls
- Thermostat
- Frames and heater placement plans
- Wiring and hardware
- Full electrical plans for the installing electrician
