seca Deutschland · Body composition analyzer

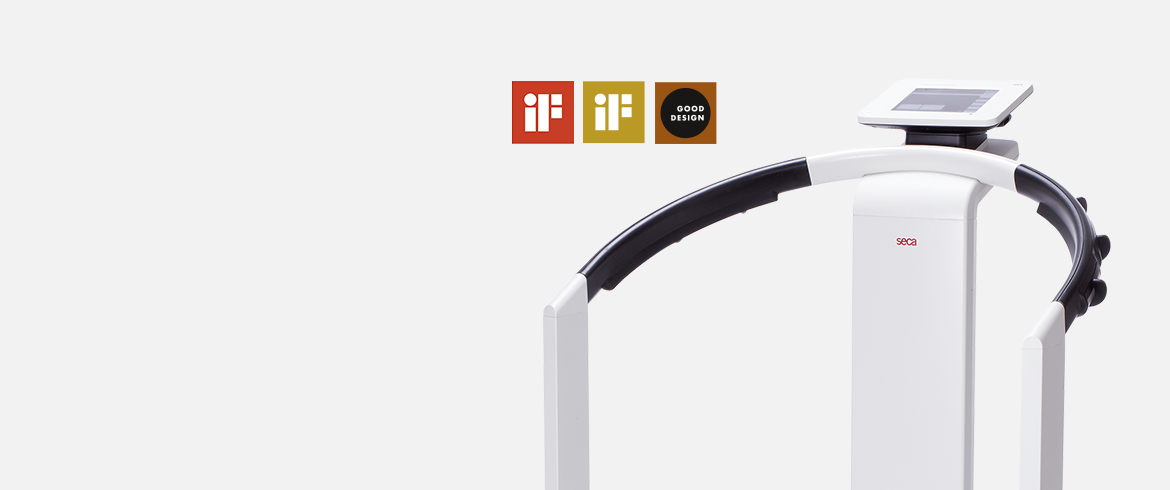

seca mBCA 514

Name: seca mBCA 514
Brand: seca Deutschland

The seca mBCA 514 is an 8-point body-composition analyzer with a rotatable touchscreen, network interfaces, and a multi-frequency BIA envelope documented by seca.

body composition analysisbioelectrical impedance analysis

Key features

8-point bioelectrical impedance analysis
Stainless-steel hand and foot electrodes
seca 360° wireless, USB 2 and Ethernet interfaces
seca analytics 115 software identified in the official catalogue

Specifications

Dimensions: 976 × 1251 × 828 mm
Capacity: 300 kg
Graduation: 50 g below 150 kg; 100 g above 150 kg
Weight: 36 kg
Display: 8.4-inch touchscreen, rotatable 360°
Electrical: 100–240 V, 50–60 Hz power adapter
Interfaces: seca 360° wireless, USB 2, Ethernet
BIA: 8-point; 3 pairs hand electrodes and 2 pairs foot electrodes
BIA frequencies: 1, 1.5, 2, 3, 5, 7.5, 10, 15, 20, 30, 50, 75, 100, 150, 200, 300, 500, 750, 1000 kHz
BIA current: 100 µA
Measurement time: Max 20 sec for all modules at 5/50 kHz; max 90 sec for all modules at all frequencies
