seca Deutschland · Body composition analyzer

seca mBCA 525

Name: seca mBCA 525
Brand: seca Deutschland

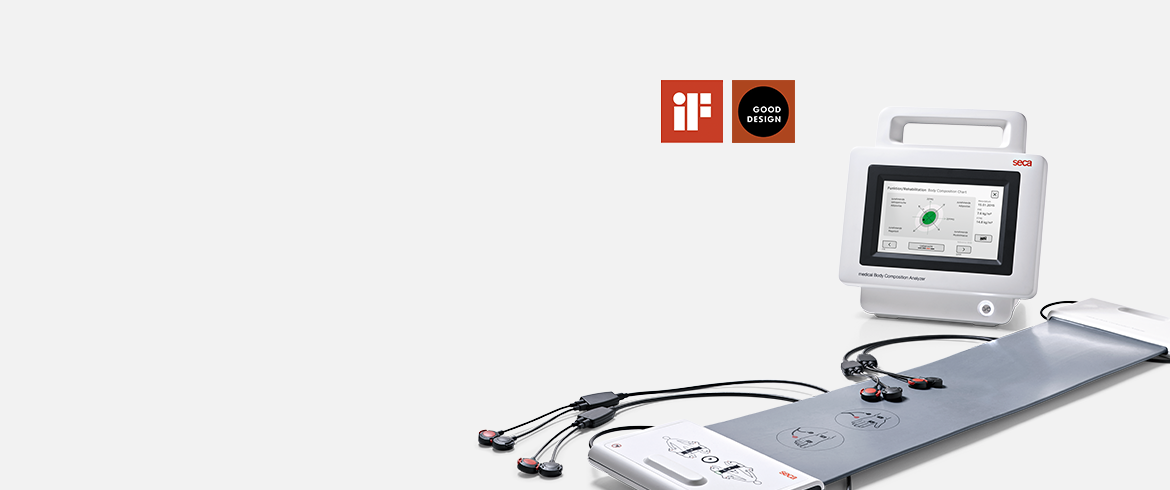

The seca mBCA 525 is a monitor-and-mat body-composition analyzer with rechargeable power, network interfaces, and an 8-point or 4-point BIA configuration documented by the official manual.

body composition analysisbioelectrical impedance analysis

Key features

Portable monitor and measuring mat
Rechargeable battery
8-point and 4-point BIA options
Wi-Fi and LAN connectivity

Specifications

Monitor dimensions: 230 × 252 × 262 mm
Monitor weight: Approximately 2 kg
Measuring mat dimensions: 783 × 170 × 20 mm
Measuring mat weight: Approximately 1 kg
Input power: 100–240 V, 50–60 Hz, 0.85 A
Battery: 11.25 V / 2950 mAh lithium battery; approximately 5 hours runtime
Power consumption: Standby under 5 W; operating under 9 W; charging under 35 W
Interfaces: Wi-Fi, LAN, USB, infrared and inductive measuring mat
BIA: 8-point and 4-point options; 1, 2, 5, 10, 20, 50, 100, 200 and 500 kHz; 100 µA (+20%, -50%); max 30 sec
