Summit to Sea · Hyperbaric chamber

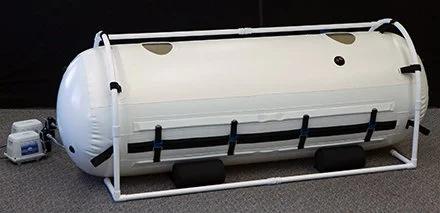

Summit to Sea's most popular mid-sized mild hyperbaric chamber with dual compressors and two viewing windows.
Plan the room with a standard hyperbaric oxygen footprint, then confirm exact dimensions on the maker's spec sheet.
Explore this generic equipment footprint, then place it in your studio plan.

Generic reference model
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in plannerSiting
Comparable product-row measurements against Summit to Sea Shallow Dive; no footprint arithmetic is shown without matching Width and Depth rows.
Its spec-sheet depth row (90") is 6 in deeper than Summit to Sea Shallow Dive's depth row (84").
Deeper than the Summit to Sea Shallow Dive.
Direct product-row facts compared with Summit to Sea Grand Dive Vertical; shared values are omitted.
Product row lists in the box: Redundant compressors (2), Four round foam bolsters connected in a cradle, Easy to clean foam mat, Carrying case and External frame.
Product row lists certifications: FDA cleared.
Summit to Sea Shallow Dive is the nearest spec-sheet match we list — both sheets side by side, with each row's spread.
| Spec | Summit to Sea The Dive | Summit to Sea Shallow Dive | Difference |
|---|---|---|---|
| Operating Pressure | 4.4 PSI (1.3 ATA) | 4.4 PSI (1.3 ATA) | Same |
| Diameter | 33" | 26" | 7 in spread |
| Length | 90" | 84" | 6 in spread |
| Compressors | Redundant compressors (2) | Redundant compressors (2) | Same |
| Electrical Requirements | Standard 120V 15 AMP outlet | Standard 120V 15 AMP outlet | Same |
| Auxiliary Valves | One auxiliary valve | One auxiliary valve | Same |
| Viewing Windows | Two viewing windows | One viewing window | Differs |
