Sun Home Saunas · Infrared sauna

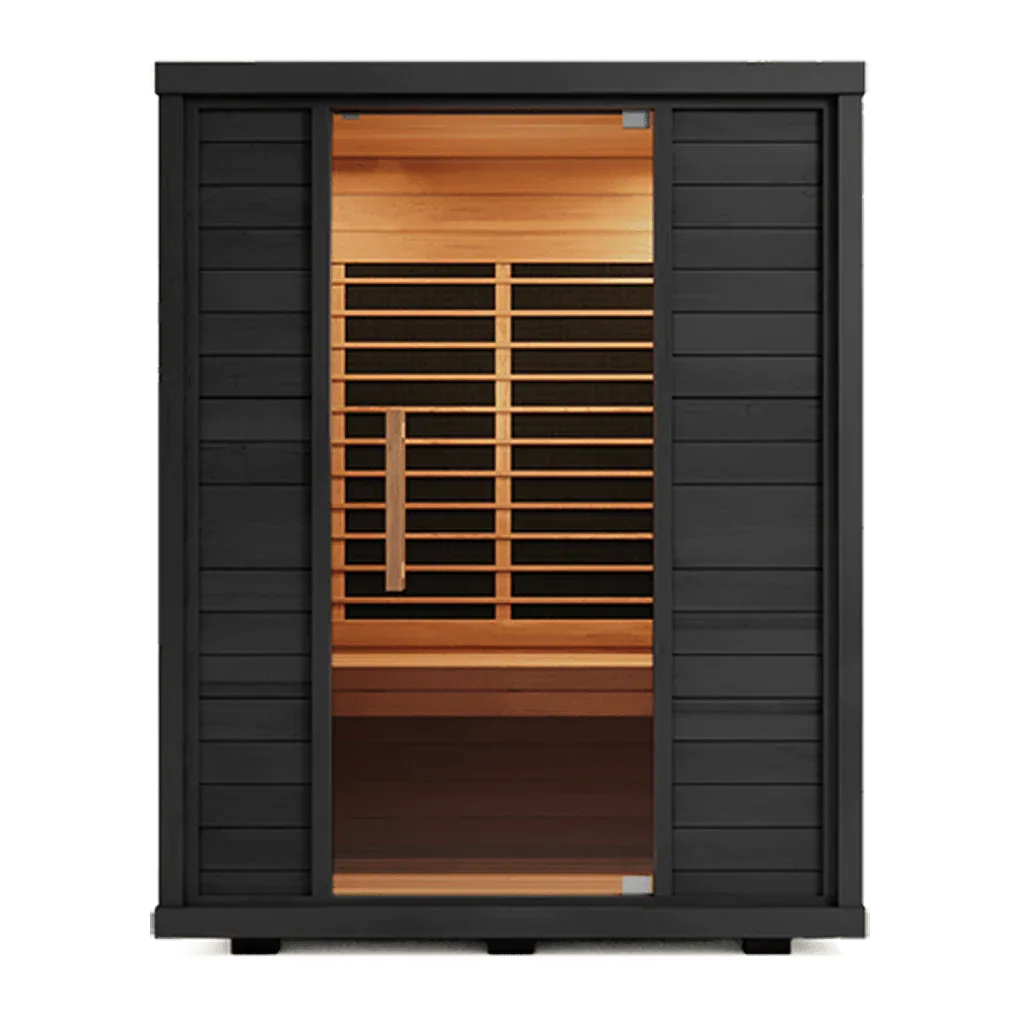

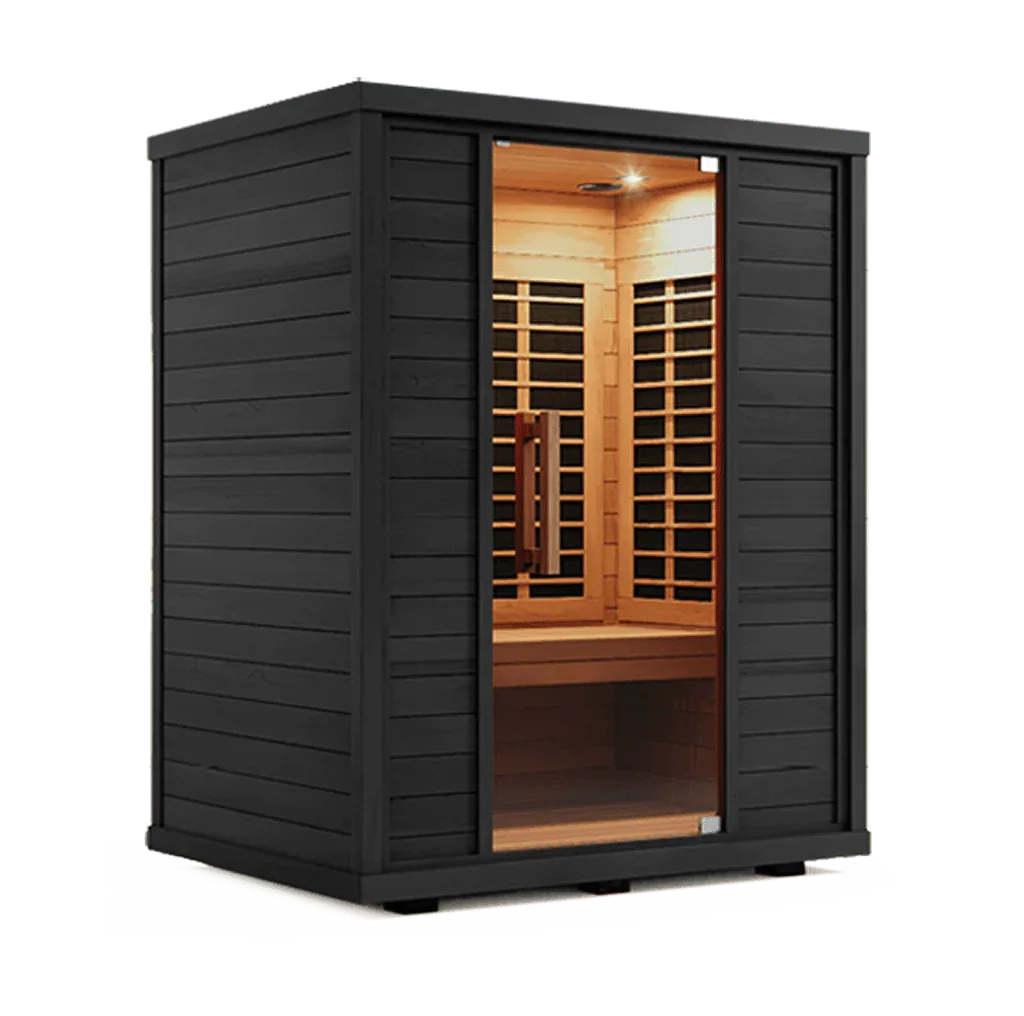

The Equinox is a 2-person full-spectrum infrared sauna delivering near, mid, and far infrared wavelengths, built from eco-certified kiln-dried eucalyptus with EMF/ELF shielding.
Interactive model
Inspect the unit from every angle and compare its footprint with your space.
Interactive model
Inspect the reference model from every angle, then place it in the studio planner.
The slow idle rotation pauses while you drag and respects your reduced-motion preference.
Model envelope
Model record

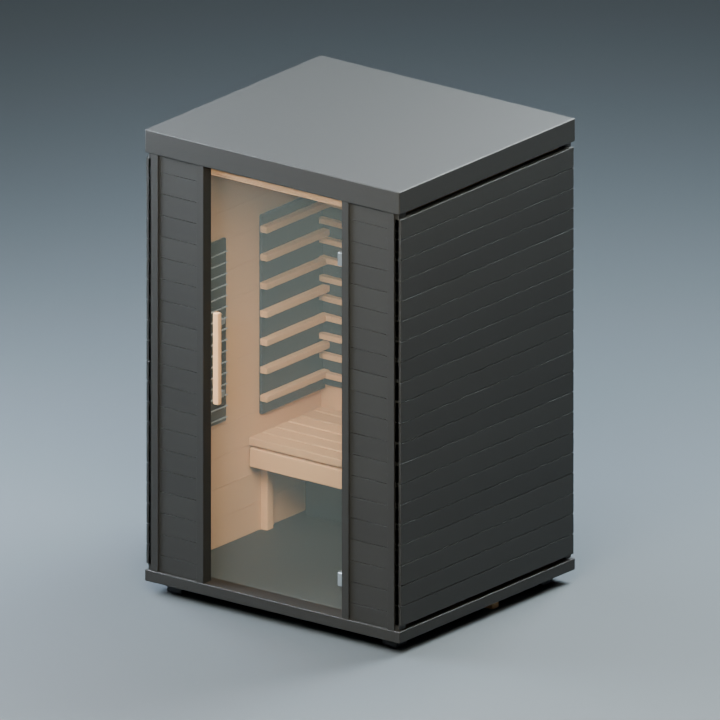

Praxium reconstruction of the photographed black Equinox 2 with its door closed. Siding, bench and heater layout follow the reference; wood grain, fittings and heater detail are approximate. Door swing and installation clearances are separate from the body footprint.
Dimensions: Manufacturer 2-person exterior: 50.9 in wide × 45.9 in deep × 77.7 in high, including feet
Open source recordSun Home Equinox 2-Person Full-Spectrum Infrared Sauna shares its 50.9 in × 45.9 in floor plan with the Sun Home Solstice 2-Person Infrared Sauna.
Sun Home Solstice 2-Person Infrared Sauna is the nearest spec-sheet match we list — both sheets side by side, with each row's spread.
| Spec | Sun Home Equinox 2-Person Full-Spectrum Infrared Sauna | Sun Home Solstice 2-Person Infrared Sauna | Difference |
|---|---|---|---|
| Wood Type | Eco-certified Kiln dried Eucalyptus | Eco-certified Kiln dried Eucalyptus | Same |
| Interior Dimensions | Width: 45.4″, Depth: 39.9″, Height: 70.3″, Bench: 45.2″ x 20.2″ (19.5" height from floor) | Width: 45.5″, Depth: 39.9″, Height: 70.3″ (includes 2" feet), Bench: 45.2″ x 20.2″ (19.5" height from floor) | Differs |
| Exterior Dimensions | Width: 50.9″, Depth: 45.9″, Height: 77.7″ (includes 2" feet) | Width: 50.9″, Depth: 45.9″, Height: 77.7″ (includes 2" feet) | Same |
| Door Opening | 28" | 28" | Same |
| Weight | 520 lbs | 522 lbs | 2 lbs spread |
| Heaters | 4 FIR, 2 Full-spectrum (500W each) | 9 FIR | Differs |
| Electrical | 120 V, 1880 W, 15.67 A, plugs into NEMA 5-20p (120v / 20 amp dedicated circuit and outlet) | 120 V, 2006 W, 20 A, plugs into a 120v / 20 amp dedicated circuit and outlet. Plug: NEMA 5-20R, 5-20P | Differs |
