Sunglor · Red light therapy panels (OEM/ODM)

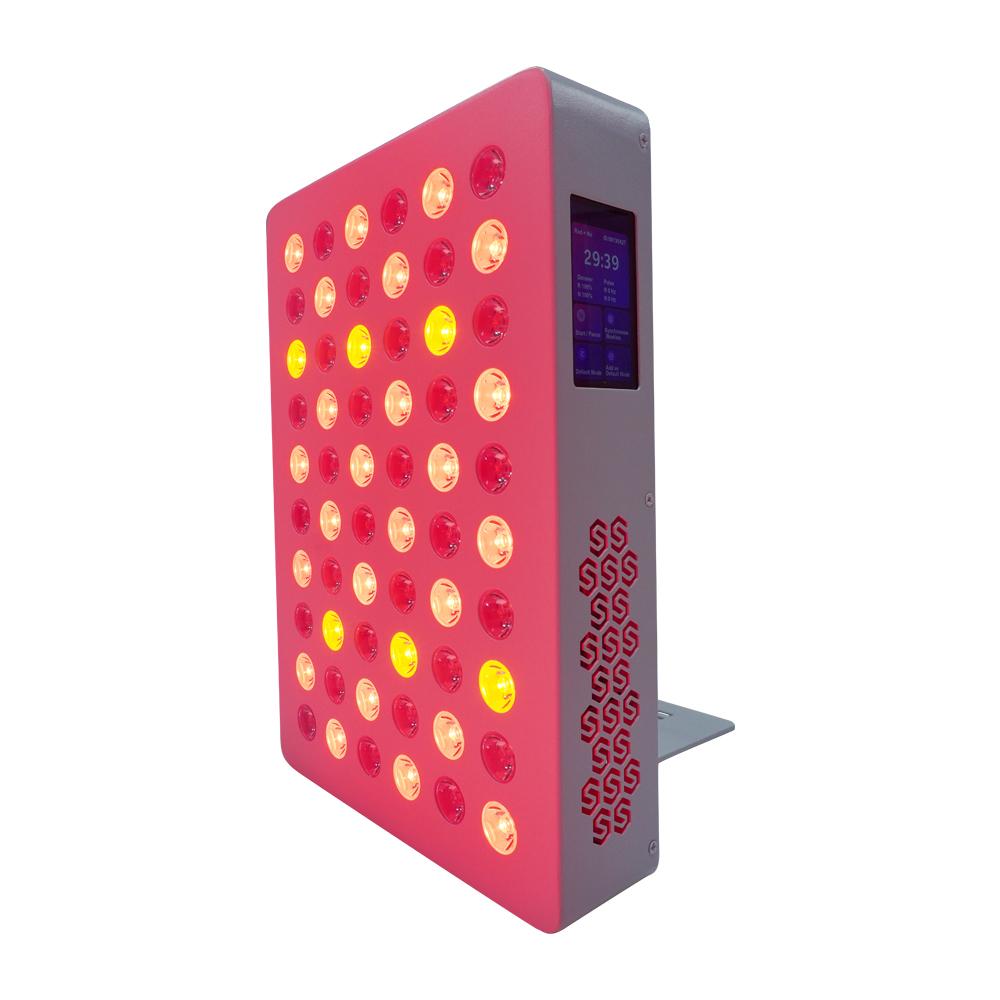

Sunglor Smart LCD Touch 5 Spectrums 300W Panel
Sunglor's SG-TC-PRO300, a 300 W panel carrying 60 five-watt LEDs across five wavelengths — 630, 660, 810, 830 and 850 nm — with the red and near-infrared channels switched separately from an LCD touch screen. Irradiance falls from 172 mW/cm2 at six inches to 82.3 at twenty-four.
2 years
Warranty
China
Made in
Red light therapy
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Infrared panel
4.0′ × 2.0′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Generic reference model
Red light bed
7.1′ × 3.6′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- Red and near-infrared channels switch independently, so either half of the spectrum can run on its own
- Dual-chip LED design for more even output across the panel
- 30-degree focusing lens concentrates the beam, trading coverage for irradiance at working distance
- Flicker-free operation with low EMF
- Tabletop stand included, with desk or hanging mounting and a modular stand available

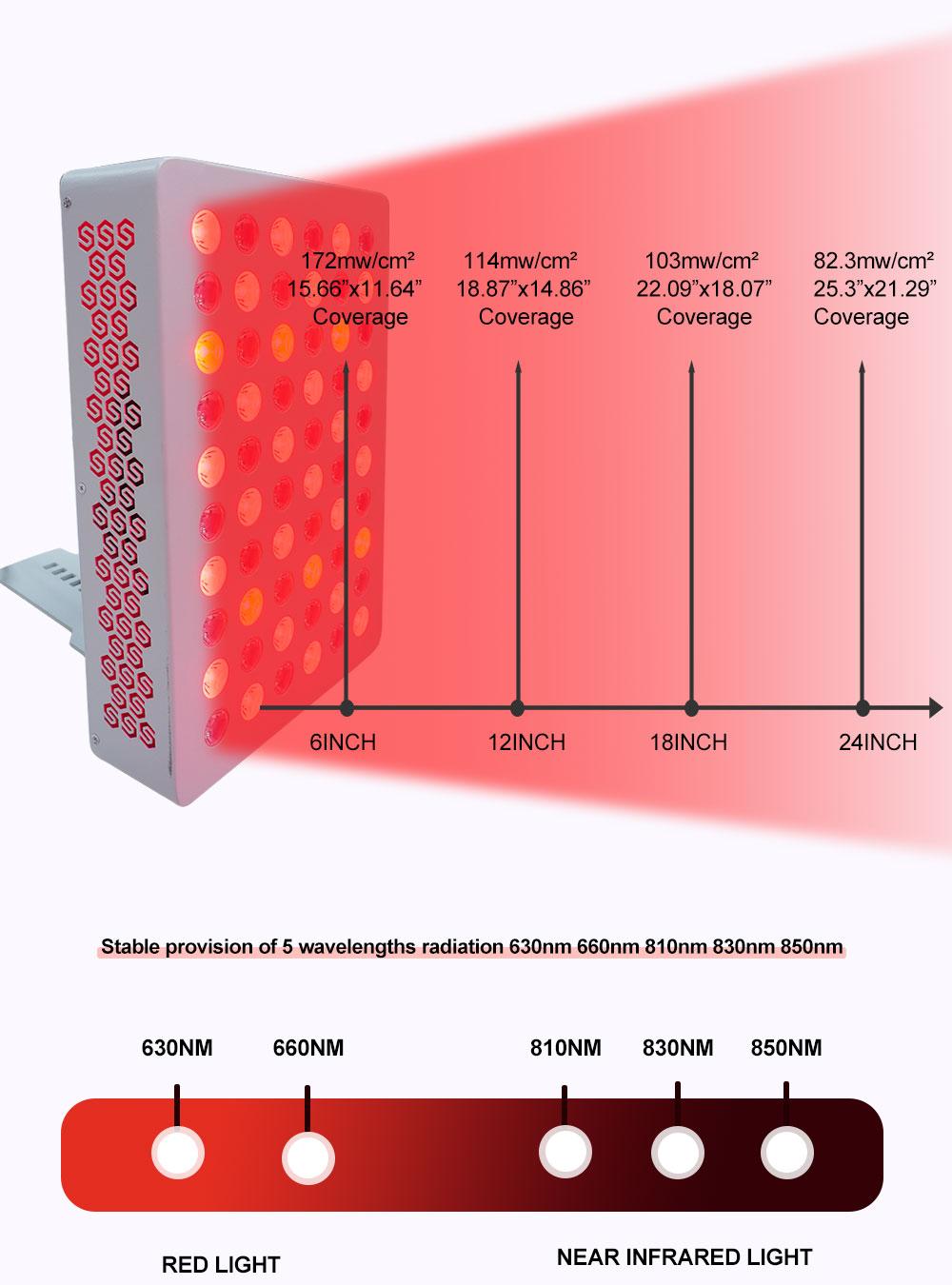

- Irradiance published at four working distances, from 172 mW/cm2 at 6 inches down to 82.3 at 24 inches
Specifications
- Model
- SG-TC-PRO300
- Power
- 300 W
- Spectrum
- 630, 660, 810, 830 and 850 nm (five wavelengths)
- LED count
- 60 pcs x 5 W
- Dimensions
- 316 x 214 x 60 mm
- Net weight
- 2.5 kg
- Input voltage
- AC 100-240 V, 50/60 Hz
- Housing material
- Iron, white
- Irradiance by distance
- 172 mW/cm2 at 6 in; 114 at 12 in; 103 at 18 in; 82.3 at 24 in
- Optics
- 30-degree focusing lens
- Rated LED lifetime
- 100,000 hours
- Timer
- Yes (settable range not published)
- Control
- LCD touch screen; red and near-infrared channels switched separately
- Warranty
- 2 years
- Place of origin
- China
- Minimum order quantity
- 1
- Packing
- Cardboard
Product details
- Lead time
- Quoted delivery time 3-7 working days; samples 5-10 days, bulk order lead time quoted per order
What's included
- Red light therapy panel
- Tabletop stand
- Goggles
- Power cable
