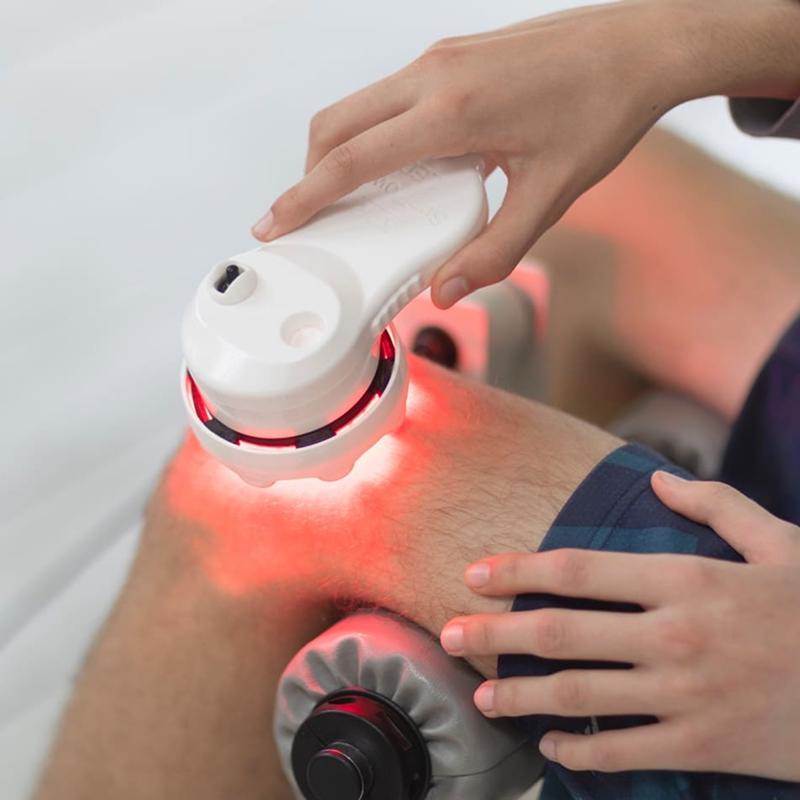

SunPower LED · Targeted handheld red light device
Palm Ultimate
The same 660nm and 810nm wavelengths as the Palm Professional with about 25% more optical power, for faster sessions over deeper or larger areas.
$1,300
Price
1-year warranty
Warranty
Red light therapy
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Infrared panel
4.0′ × 2.0′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Generic reference model
Red light bed
7.1′ × 3.6′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- Switchable 660nm (red) and 810nm (near-infrared) wavelengths
- Radiant flux: 7500 mW at 660nm; 6000 mW at 810nm
- Irradiance: 187 mW/cm² at 660nm; 150 mW/cm² at 810nm
- Treatment surface area: 40 cm² (3" diameter)
- Medical-grade 36W power supply; FDA Registered, FCC/CE approved
- 1-year warranty (extended options available)
Specifications
- Dual Wavelength LED (Switchable)
- 660nm - red light, 810nm - non-visible near-infrared (NIR) light
- Average Radiant Flux (660nm)
- 7500 mW (7.5 Watts)
- Average Radiant Flux (810nm)
- 6000 mW (6.0 Watts)
- Average Irradiance (660nm)
- 187 mW/cm²
- Average Irradiance (810nm)
- 150 mW/cm²
- Treatment Surface Area
- 40 cm² (3" diameter)
- Fluence (660nm)
- 4J/cm² in 22s
- Fluence (810nm)
- 4J/cm² in 27s
- Electrical
- 120Vac / 24 Vdc, 36 W medical grade power supply with a wall plug adapter (Approved by FCC & CE – UK, Canada) with a Vac power cord, 6-foot (or 10-foot) cord extension to the LED unit
- Miscellaneous
- Air fan, Temperature monitoring and fuse protection circuitry, On/Off/On toggle switch
Product-row differences
Direct product-row facts compared with SunPower LED Palm Professional; shared values are omitted.
Product row lists certifications: FDA Registered.
Product details
- Regulatory status & certifications
- FDA RegisteredFCCCERegistration or listing does not by itself mean a device is FDA approved or cleared. Confirm model-specific status and intended use with the manufacturer and the relevant regulator before purchase.
- Lead time
- 1-3 weeks
What's included
- 1 Cord Extender
- Medical-grade power supply cord
