TheraLight · Full-body red light bed
TheraLight 360
A full-body light therapy bed delivering 360-degree coverage using more than 45,000 medical-grade LEDs.
$84,997
Price
5 years
Warranty
Red light therapy
Interactive model
Inspect the unit from every angle and compare its footprint with your space.
Interactive model
TheraLight 360
Inspect the reference model from every angle, then place it in the studio planner.
The slow idle rotation pauses while you drag and respects your reduced-motion preference.
Model envelope
- Width
- 1.22 m4 ft
- Depth
- 2.2 m7.2 ft
- Height
- 1.63 m5.3 ft
Model record

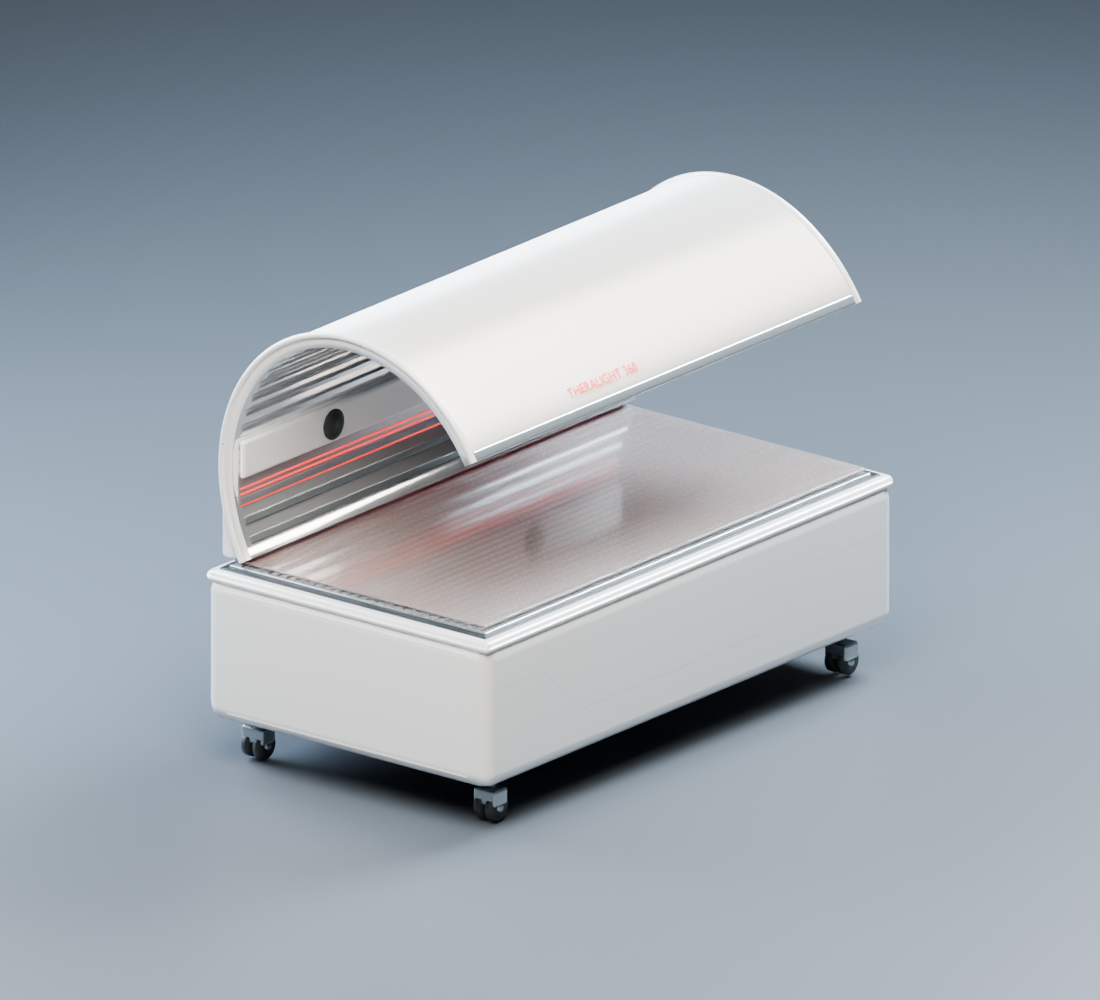

Current 360 exterior reconstructed from Aspen's product photography, with its sculpted housing, open ends, raised reflective canopy and clear acrylic deck. Published metric body envelope; the fixed presentation pose is not an installation or opening-clearance drawing. Visible LED detail is illustrative.
Dimensions: Current Aspen 360 product specification: 122 cm wide × 220 cm long × 163 cm gross height
Open source recordKey features
- Wavelengths: 633nm, 810nm, 850nm, 940nm
- 45,000+ medical-grade LEDs
- Pulse range 1-5000 Hz (continuous, variable, and pulse modes)
- 10-20 minute recommended treatment time
Specifications
- LED Type
- GAAIAS DIODE LED
- Wavelengths Utilized
- 633nm, 810nm, 850nm, 940nm
- LED Rating
- 130,000 Hrs
- Operation Mode
- Continuous Wave, Variable, Pulse settings 1-5000HZ IN 1, 10 or 100MH
- Power
- Power Supply: 240V, 30AMP, 50/60Hz
- Recommended Treatment Time
- 10-20 Min
- Rapid Treatment Time
- Yes
- Highly Reflective Panels
- Yes
- Total Dose In 10 Min
- 99 J/cm2
- Features
- Homogeneous Light Distribution, Air Cooling Systems, Bottom Wheels for Mobility, LCD touchscreen display, Built-in Bluetooth Speakers, PEMF Integration Option, Adjustable End Caps
- Product Specifications
- 7'3" (L) x 4' (W) x 5'4" (H) (220 cm x 122 cm x 163 cm)
- Bed Length
- 7'1" treatment bed length
- Weight
- 620lbs (281 kg)
- Weight Capacity
- 500 LBS (158kg)
Manuals and documentation
Product-row differences
Direct product-row facts compared with TheraLight FIT; shared values are omitted.
Warranty: this product lists 5 years; TheraLight FIT lists 3 years.
Product details
- Regulatory status & certifications
- FDA RegisteredHealth Canada ApprovedISO 13485 CompliantIEC Safety CertifiedOSHA CompliantRoHS 1 CompliantRegistration or listing does not by itself mean a device is FDA approved or cleared. Confirm model-specific status and intended use with the manufacturer and the relevant regulator before purchase.
