TheraLight · Full-body red light bed

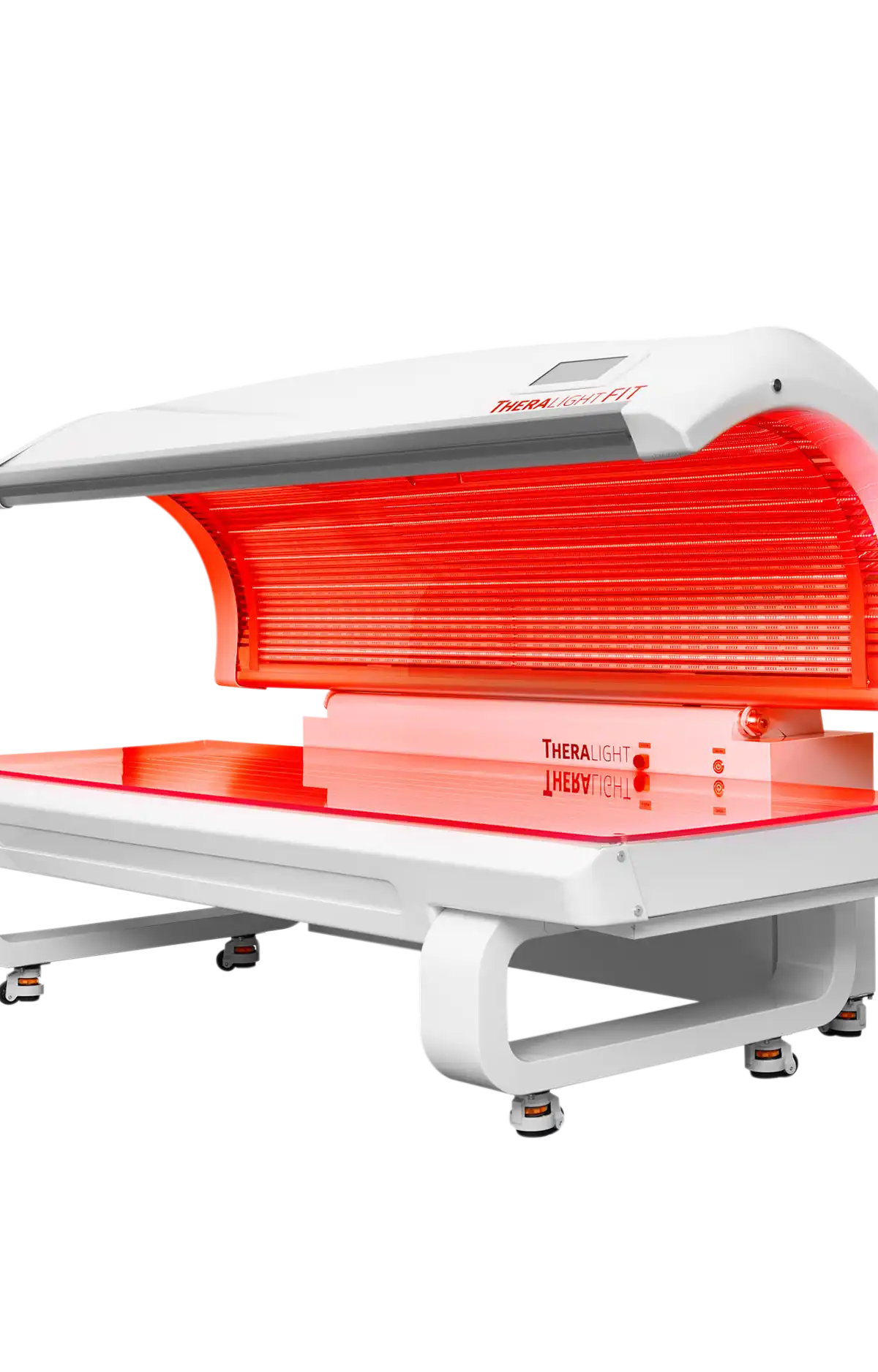

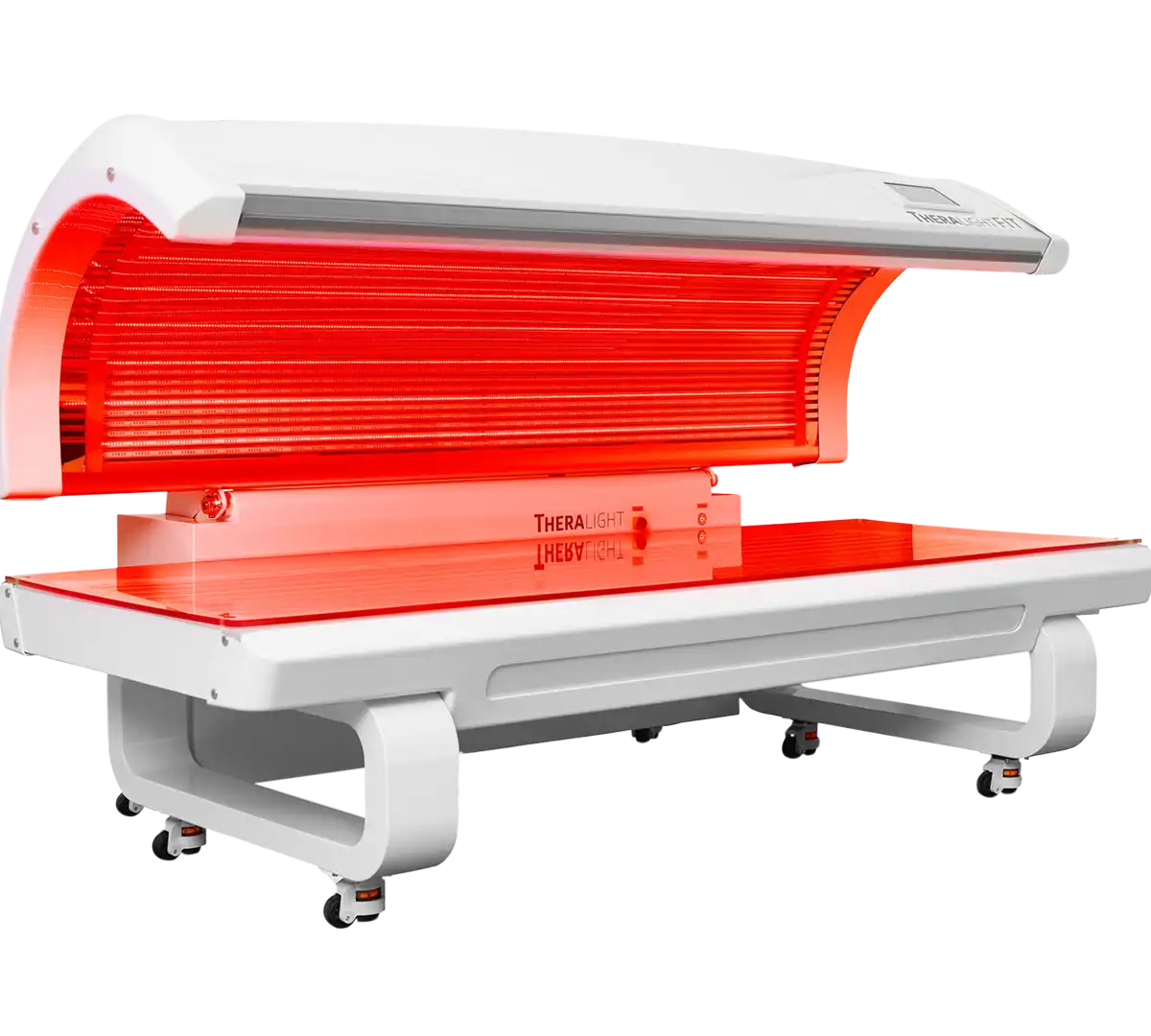

TheraLight FIT
A compact full-body red light therapy bed designed for smaller spaces, with a wireless tablet controller.
$64,997
Price
3 years
Warranty
Red light therapy
Interactive model
Inspect the unit from every angle and compare its footprint with your space.
Interactive model

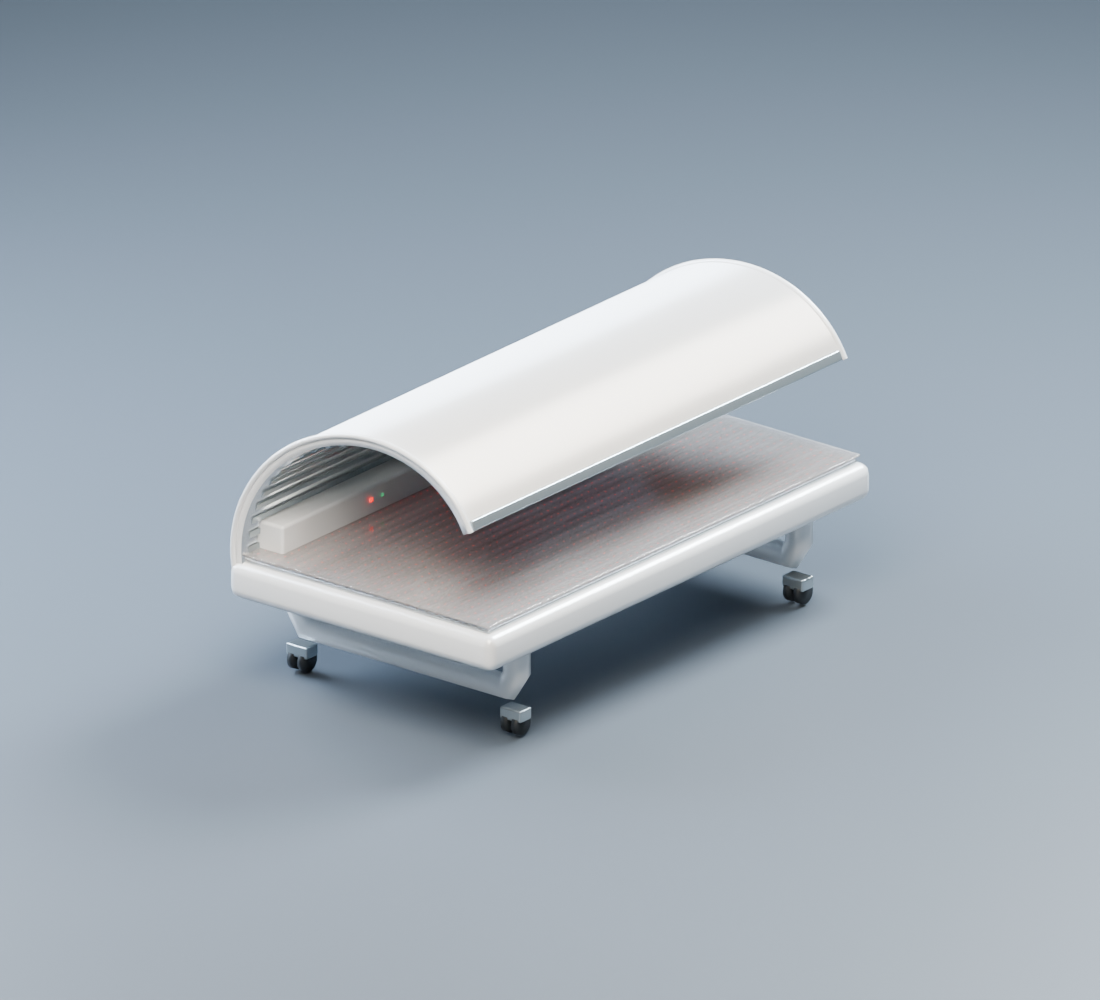

TheraLight FIT · lowered canopy reference
Inspect the reference model from every angle, then place it in the studio planner.
The slow idle rotation pauses while you drag and respects your reduced-motion preference.
Model envelope
- Width
- 1.14 m3.7 ft
- Depth
- 2.06 m6.8 ft
- Height
- 1.05 m3.4 ft
Model record
Praxium reconstruction with the FIT open-frame wheeled base and open-ended canopy, shown lowered within the published metric envelope. The manufacturer imperial values on the same page do not convert to its metric values; this model consistently uses metric. Canopy articulation, installation clearance and LED counts are not modeled. Confirm revision and dimensions before purchase.
Dimensions: Current Aspen FIT metric specification: 114 cm W × 206 cm L × 104.5 cm H
Open source recordKey features
- Four independently controlled wavelengths: 633nm, 810nm, 850nm, 940nm
- Pulse range 1-5000 Hz adjustable in 1 Hz increments
- 6 ft 5 in treatment bed, 300 lb capacity
- 10-20 minute recommended treatment time
Specifications
- LED Type
- GAAIAS DIODE LED
- Wavelengths Utilized
- 633nm, 810nm, 850nm, 940nm
- LED Rating
- 100,000 Hrs
- Operation Mode
- Continuous Wave, Variable, Pulse settings 0-5000HZ adjustable in 1 Hz increments
- Power
- Power Supply: 110V, 20A max, 60Hz
- Recommended Treatment Time
- 10-20 Min
- Rapid Treatment Time
- Yes
- Highly Reflective Panels
- Yes
- Total Dose In 10 Min
- 60 J/cm2
- Features
- Homogeneous Light Distribution, Air Cooling Systems, Bottom Wheels for Mobility, LCD touchscreen display
- Product Specifications
- 6'8" (L) x 4' (W) x 3'4" (H) (206 cm x 114 cm x 104.5 cm)
- Bed Length
- 6'5" treatment bed length
- Weight
- 400lbs (181 kg)
- Weight Capacity
- 300 LBS (158kg)
Manuals and documentation
Product-row differences
Direct product-row facts compared with TheraLight 360; shared values are omitted.
Warranty: this product lists 3 years; TheraLight 360 lists 5 years.
Product details
- Regulatory status & certifications
- FDA RegisteredHealth Canada ApprovedISO 13485 CompliantIEC Safety CertifiedOSHA CompliantRoHS 1 CompliantRegistration or listing does not by itself mean a device is FDA approved or cleared. Confirm model-specific status and intended use with the manufacturer and the relevant regulator before purchase.
