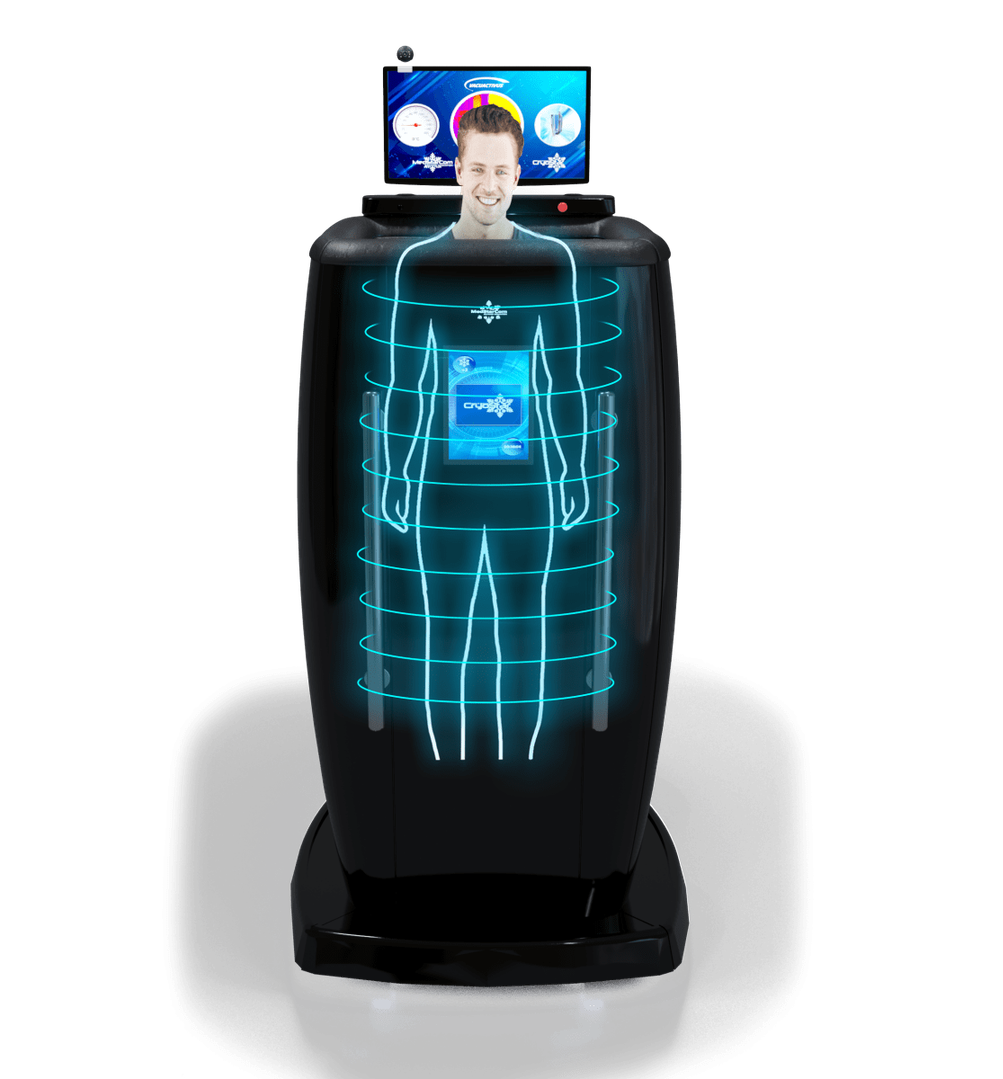

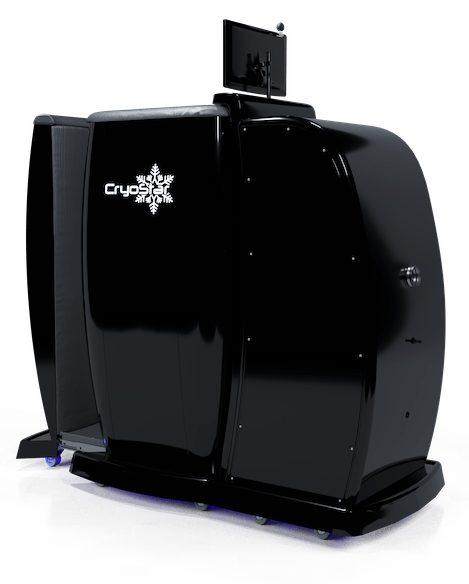

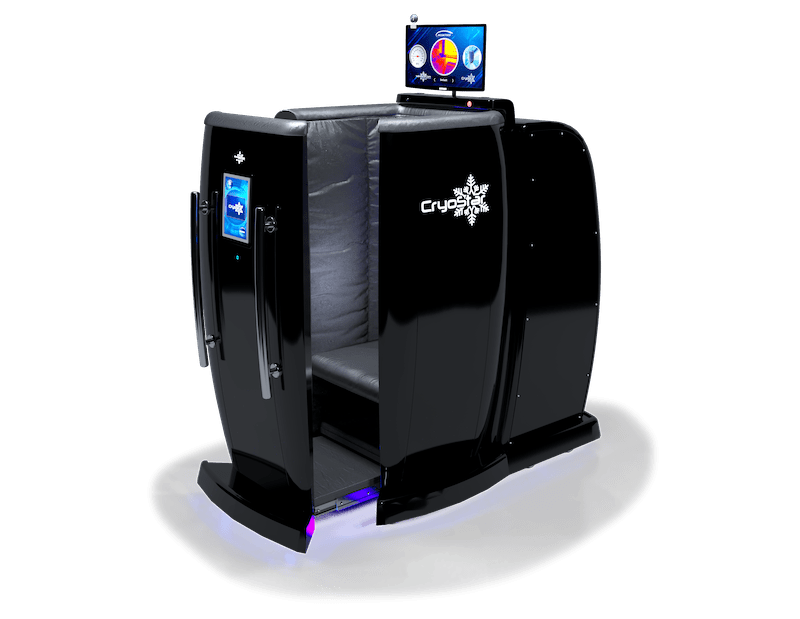

Vacuactivus CryoStar
An open-top nitrogen cryosauna: the client's head stays above the cabin breathing room air while platinum injection nozzles spray nitrogen indirectly around the body. Reaches -170C on 3-5 kg of nitrogen per session, and is the only Vacuactivus cabin whose door opens automatically by remote or door-mounted button.
USA & Europe (Ukraine, Poland)
Made in
Cryotherapy
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.
Generic reference model
Cryo chamber
4.5′ × 5.5′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- Open-top design — the client's head stays above the cold zone breathing room air
- Indirect nitrogen spray through platinum injection nozzles mounted in the centre of the chamber, so liquid nitrogen never contacts skin

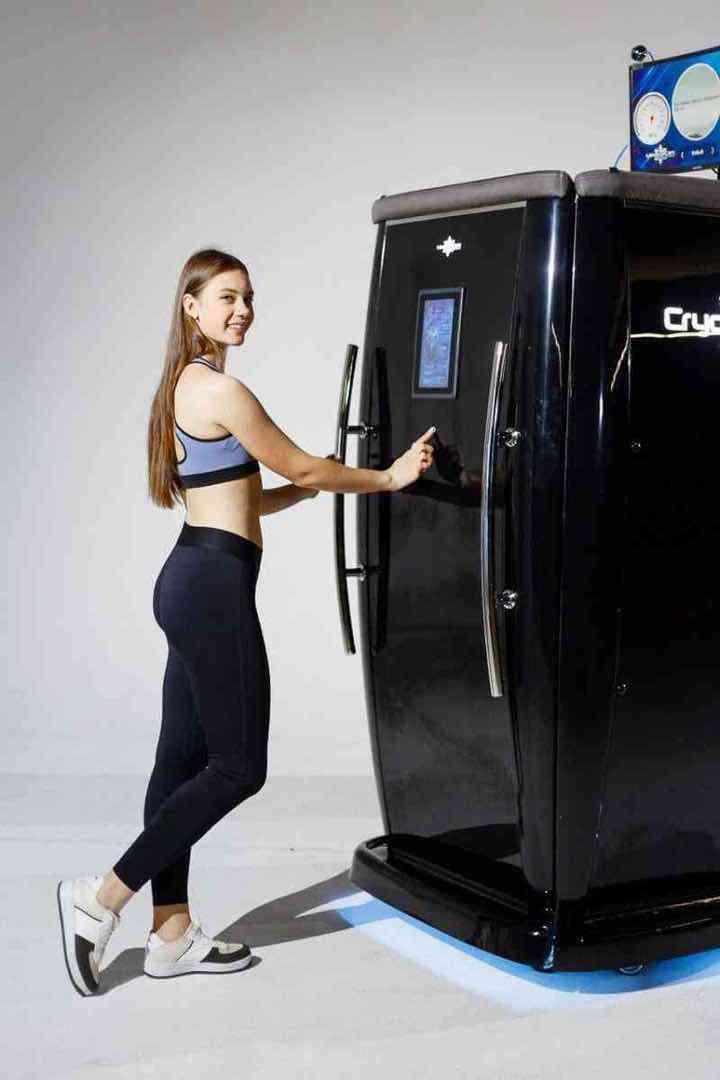

- Automatic door opening by remote control or a button mounted on the door
- 10.1 inch touchscreen running three automatic programs and one manual program
- Optional thermal imaging camera and mounted oxygen level sensor (Grand and Grand M)
- Optional 21 inch top-mounted video display with WiFi and TV options (Grand M)
- 3-5 kg nitrogen per session including pre-cooling
- Customisable cabin colour and customer logo, specified at order
Specifications
- Temperature range
- -120C to -170C (-184F to -274F)
- Session duration
- 1-3 minutes (manufacturer's treatment convention, not a rated timer limit)
- Dimensions
- 2600 x 1020 x 2315 mm (102 x 40 x 92 in, door closed)
- Weight
- 450 kg (990 lbs); 600 kg crated
- Nitrogen consumption
- 3-5 kg per session including pre-cooling
- Power supply
- 220V/50Hz or 110V/60Hz
- Energy consumption
- 1.5 kW, up to 20A
- Cooling method
- Liquid nitrogen, indirect spray via platinum injection nozzles
- Control panel
- 10.1 inch touchscreen, 3 automatic programs + 1 manual program
- Door
- Automatic opening by remote control or door-mounted button
- Versions
- Simple; Grand (adds thermal imaging camera and oxygen level sensor); Grand M (adds 21 inch top video display with WiFi/TV)
