Sechrist 3300H
The narrowest and lightest of Sechrist's three monoplace chambers, and the only one whose 700-pound patient rating is an upgrade rather than standard equipment. It is also the only H model whose relief valves are set a pound lower than its siblings', so a valve is not interchangeable across the line.
Anaheim, California, USA
Made in
Hyperbaric oxygen
Space planning
Reference the modality footprint before choosing a unit
This product page does not have an exact 3D model yet. The planning references below are generic envelopes tied to the listed modality, not this manufacturer's product.
Explore this generic equipment footprint, then place it in your studio plan.

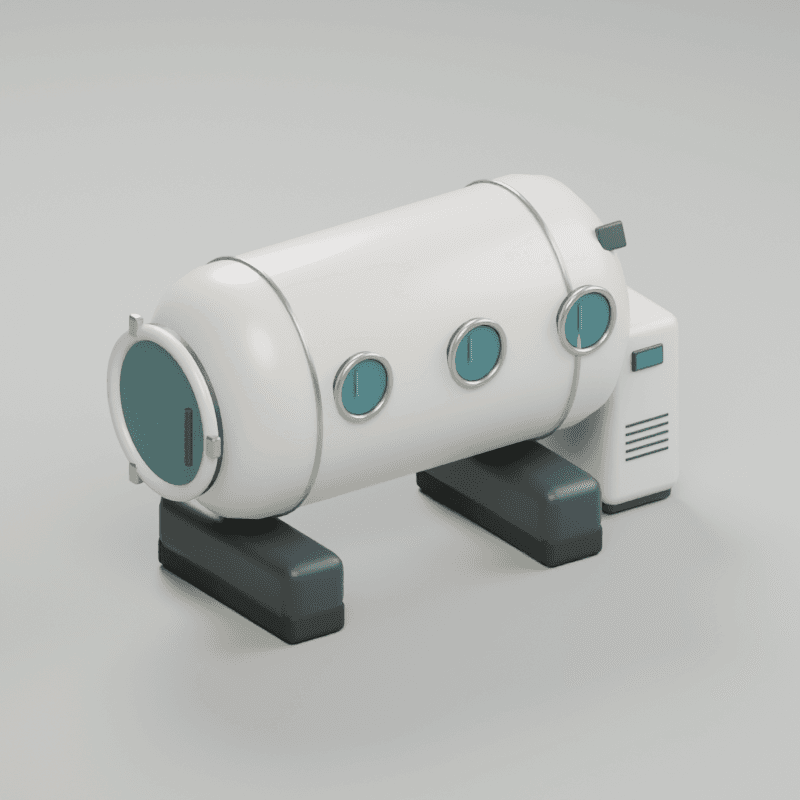

Generic reference model
Hyperbaric chamber
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- Smallest and lightest chamber in the H line at 32.50 in internal diameter and 2,030 lb, which makes it the easiest of the three to site
- Rated for 500 lb patients as standard — the 700 lb rating its two siblings carry as standard is a paid upgrade on this model
- Two relief valves set at 35.0 psig, one pound below the 3600H and 4100H setting; valves are not interchangeable between H models
- Two independent emergency vent systems, technician-controlled and automatic, each decompressing 30 psig to 0 in under 120 seconds
- Purge flow adjusts from 80 lpm to at least 450 lpm at 15 psig chamber pressure — Sechrist's oxygen-conservation control
- Door Lock Indicator gives visual confirmation the safety lock pin is engaged without the operator having to bend down to check
Specifications
- Internal diameter
- 32.50 in (83 cm) per the H-Series brochure; Sechrist's website rounds this to 33 in
- Internal length
- 90.00 in (229 cm)
- External dimensions (L x H x W)
- 106.00 in x 59.00 in x 44.50 in (269 x 150 x 113 cm)
- Chamber weight
- 2,030 lbs (923 kg)
- Supported patient weight
- 500 lbs standard (227 kg); 700 lbs available as an upgrade
- Maximum operating pressure
- 30.0 psig / 3.0 ATA (2.1 kg/cm², 206.8 kPa)
- Relief valves
- Two, set at 35.0 psig (2.46 kg/cm², 241.3 kPa)
- Purge rate
- 80 lpm to a minimum of 450 lpm with chamber pressure set at 15 psig
- Emergency vent rate
- 30 psig to 0 psig in under 120 seconds
- Supply pressure required
- 50.0 to 70.0 psig (3.5-4.9 kg/cm², 344.8-482.7 kPa)
- Operating environment
- Room at 50-100°F (10-38°C), 30-90% humidity at 77°F — an installation requirement, not a chamber setting
- Finishes
- Sechrist Blue and White standard; Crystal Green, Jade Green, Sahara Beige and Platinum custom
Matched fit
Sechrist 3300H shares its 44.50 in × 106.00 in floor plan with the Sechrist 3600H.
Product-row differences
Direct product-row facts compared with Sechrist 3600H; shared values are omitted.
Product row lists in the box: Extra-wide stretcher with adjustable headrest.
Product details
- Warranty
- Sechrist publishes no standard warranty term for the H-Series. Total Care Extended Warranty Programs are offered alongside annual preventative maintenance, PVHO2 cylinder inspections, a 10-year tune-up and on-site overhauls.
- Regulatory status & certifications
- ASME PVHO-1, Safety Standard for Pressure Vessels for Human OccupancyASME Boiler and Pressure Vessel Code, Section VIII, Division 1NFPA 99, Chapter 14 (Health Care Facilities)Registered with the National Board of Boiler & Pressure Vessel InspectorsCAN/CSA Std. 22.2 No. 601.1 / UL 6060-1IEC 60601-1 including UL 60601-1 with U.S. DeviationsISO 13485:2016 Quality Assurance Standard for Medical DevicesU.S. FDA 21 CFR Part 820Registration or listing does not by itself mean a device is FDA approved or cleared. Confirm model-specific status and intended use with the manufacturer and the relevant regulator before purchase.
What's included
- Monoplace hyperbaric chamber cylinder
- Low profile hydraulic gurney with automatic mechanical height stop
- Extra-wide stretcher with adjustable headrest
- External precision control and display panel
- Private two-way communication system
- Standard Emergency Vent System and separate Automatic Emergency Vent Switch
- Door Lock Indicator
- Built-in antimicrobial protection on painted surfaces
