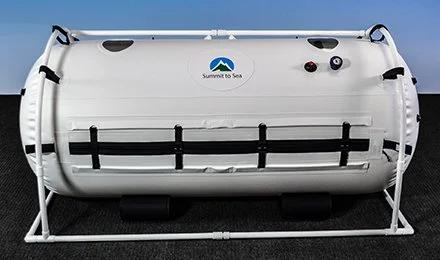

Summit to Sea · Hyperbaric chamber
Grand Dive
A large mild hyperbaric chamber that can accommodate two to three people or provide room for exercise.
From $13,995
Price
Two years from delivery date
Warranty
USA
Made in
Hyperbaric oxygen
Reference the modality footprint before choosing a unit
Plan the room with a standard hyperbaric oxygen footprint, then confirm exact dimensions on the maker's spec sheet.
Explore this generic equipment footprint, then place it in your studio plan.

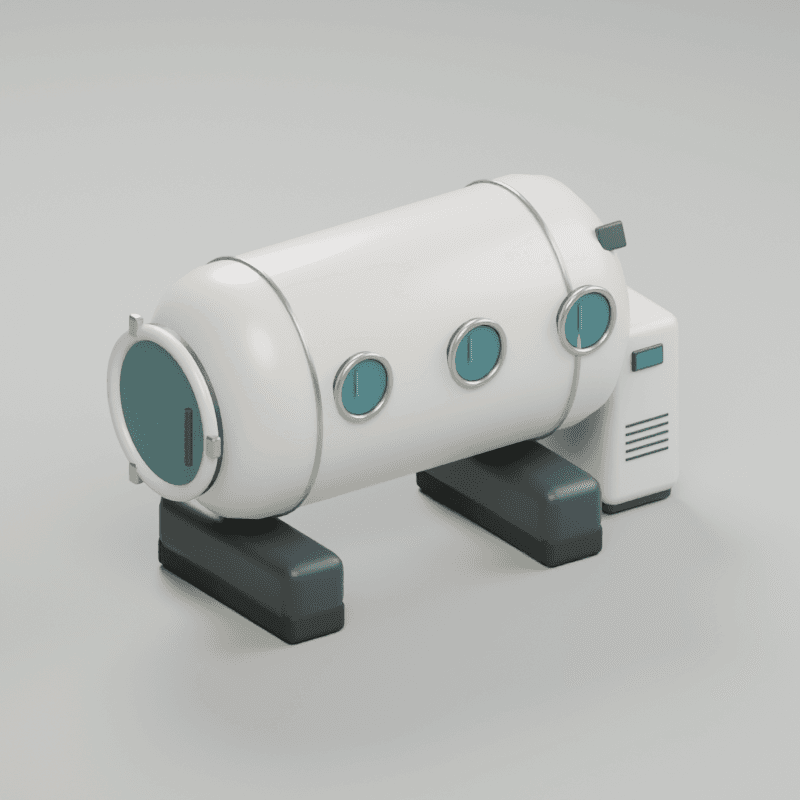

Generic reference model
Hyperbaric chamber
7.9′ × 3.2′ floor envelope
Generic planning geometry for early space planning. It is not a manufacturer-specific product, installation drawing, or purchasing specification; confirm the selected model's final envelope, service clearances, utilities, and ceiling requirements before ordering.
Place reference in planner
Key features
- 1.3 ATA (4.4 psi) operating pressure
- 40 in diameter x 90 in length
- Accommodates 2-3 people
- Dual compressors with two viewing windows
Specifications
- Operating Pressure
- 4.4 PSI (1.3 ATA)
- Diameter
- 40"
- Length
- 90"
- Weight
- Approximately 50 lbs
- Compressors
- Redundant compressors (2)
- Electrical Requirements
- Standard 120V 15 AMP outlet
- Auxiliary Valves
- Two auxiliary valves
- Viewing Windows
- Two viewing windows
Siting
Measured differences
Comparable product-row measurements against Summit to Sea The Dive; no footprint arithmetic is shown without matching Width and Depth rows.
Matches the Summit to Sea The Dive on deep.
Product-row differences
Direct product-row facts compared with Summit to Sea Grand Dive Vertical; shared values are omitted.
Product row lists in the box: Redundant compressors (2), Four round foam bolsters connected in a cradle, Easy to clean foam mat, Carrying case and Frame.
Product row lists certifications: FDA cleared.
Product details
- Regulatory status & certifications
- FDA clearedRegistration or listing does not by itself mean a device is FDA approved or cleared. Confirm model-specific status and intended use with the manufacturer and the relevant regulator before purchase.
What's included
- Redundant compressors (2)
- Four round foam bolsters connected in a cradle
- Easy to clean foam mat
- Carrying case
- Frame
