SunPower LED · Red light therapy panel
Mini-Canopy

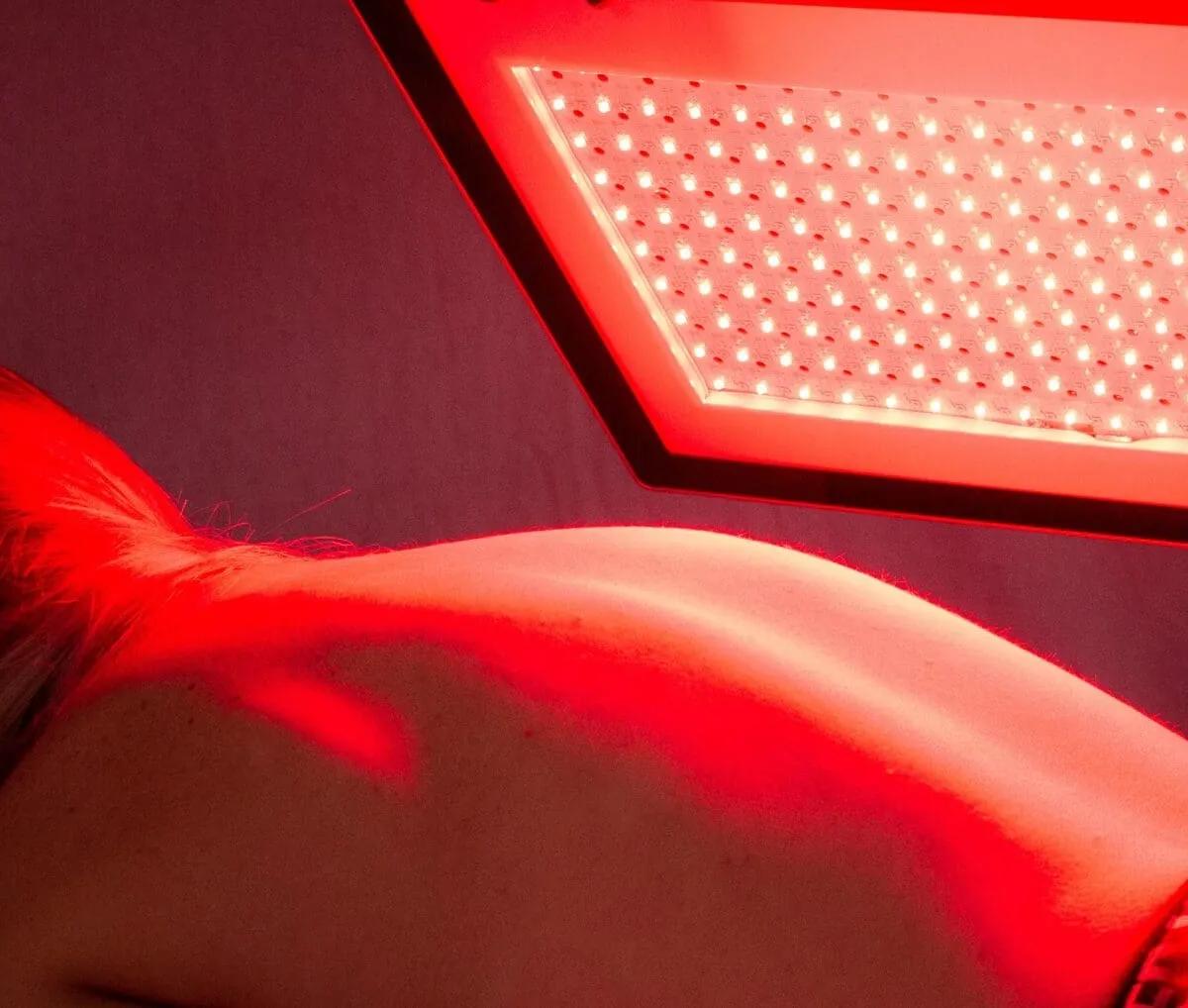

A portable red and near-infrared photobiomodulation panel (660nm + 810nm) for treating larger body areas in short sessions, at home or in a clinical setting.
$5,900
Price
2-year warranty
Warranty
Red light therapy
Interactive model
Inspect the unit from every angle and compare its footprint with your space.
Interactive model

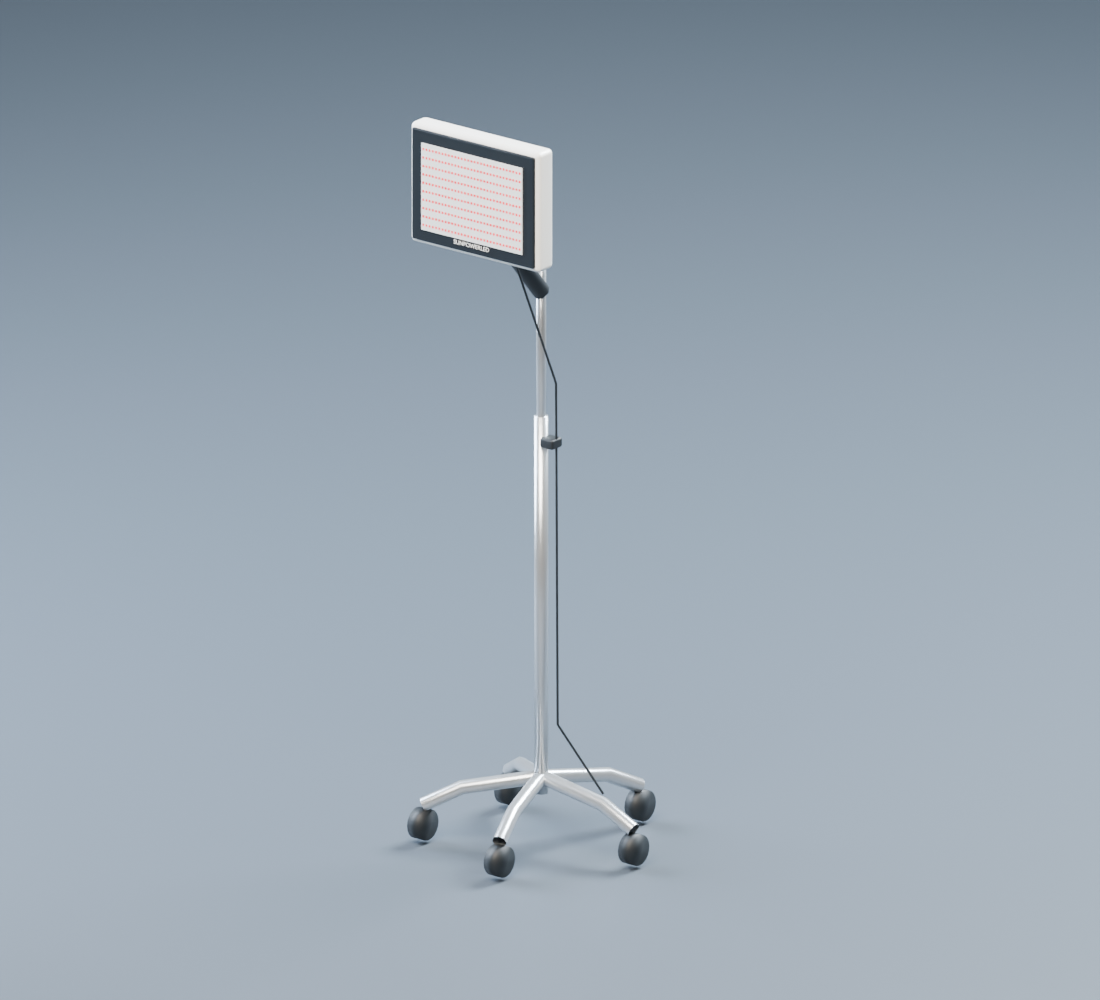

SunPower LED Mini-Canopy · stand reference
Inspect the reference model from every angle, then place it in the studio planner.
The slow idle rotation pauses while you drag and respects your reduced-motion preference.
Estimated presentation envelope
- Width
- 0.54 m1.8 ft
- Depth
- 0.61 m2 ft
- Height
- 1.82 m6 ft
Model record

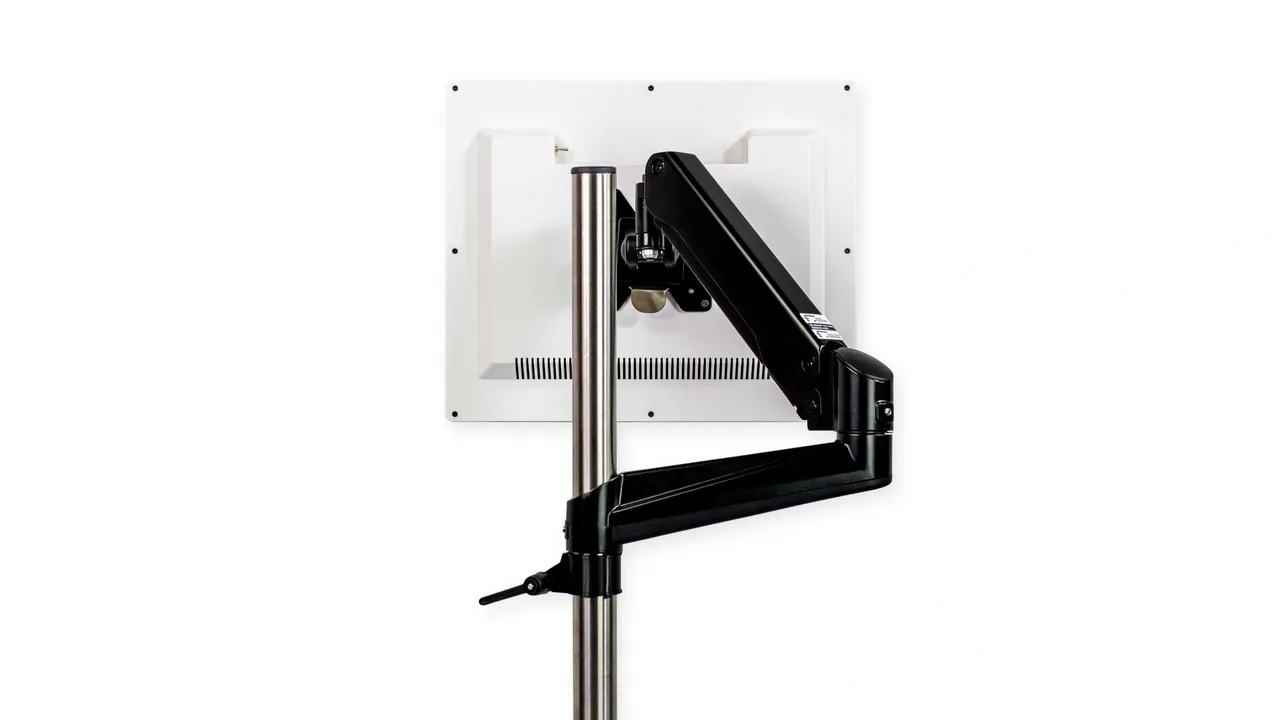

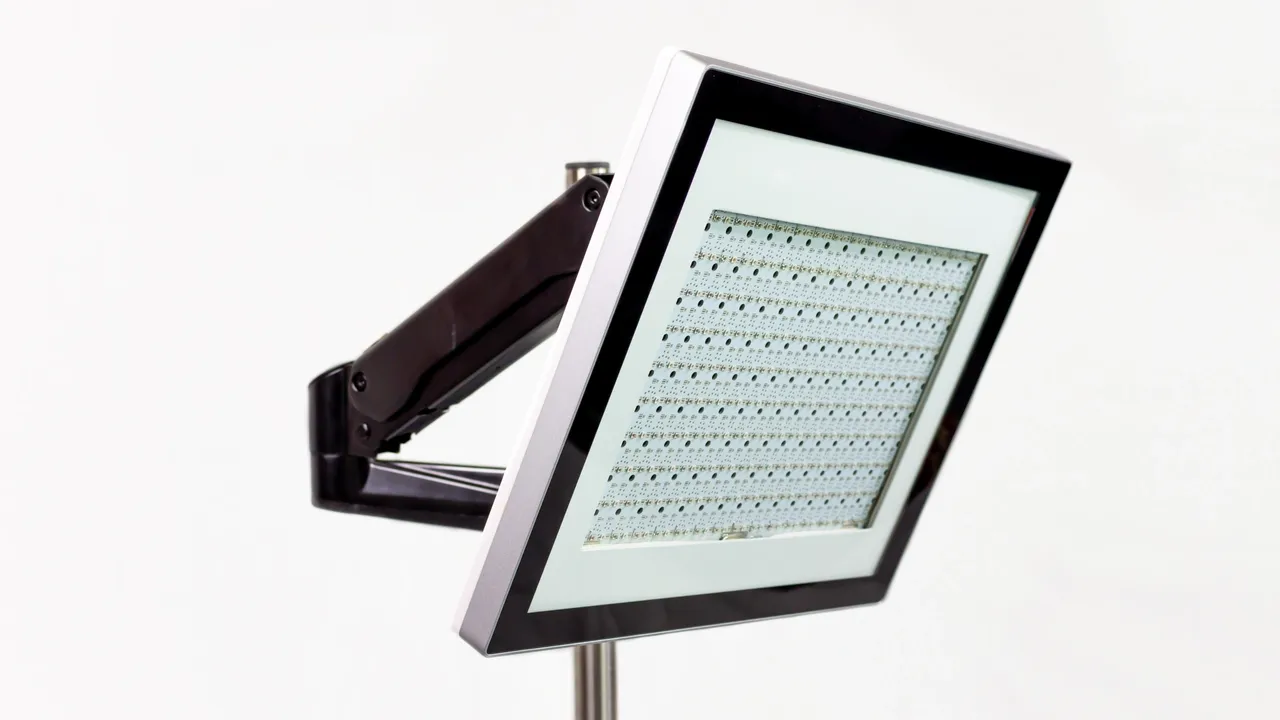

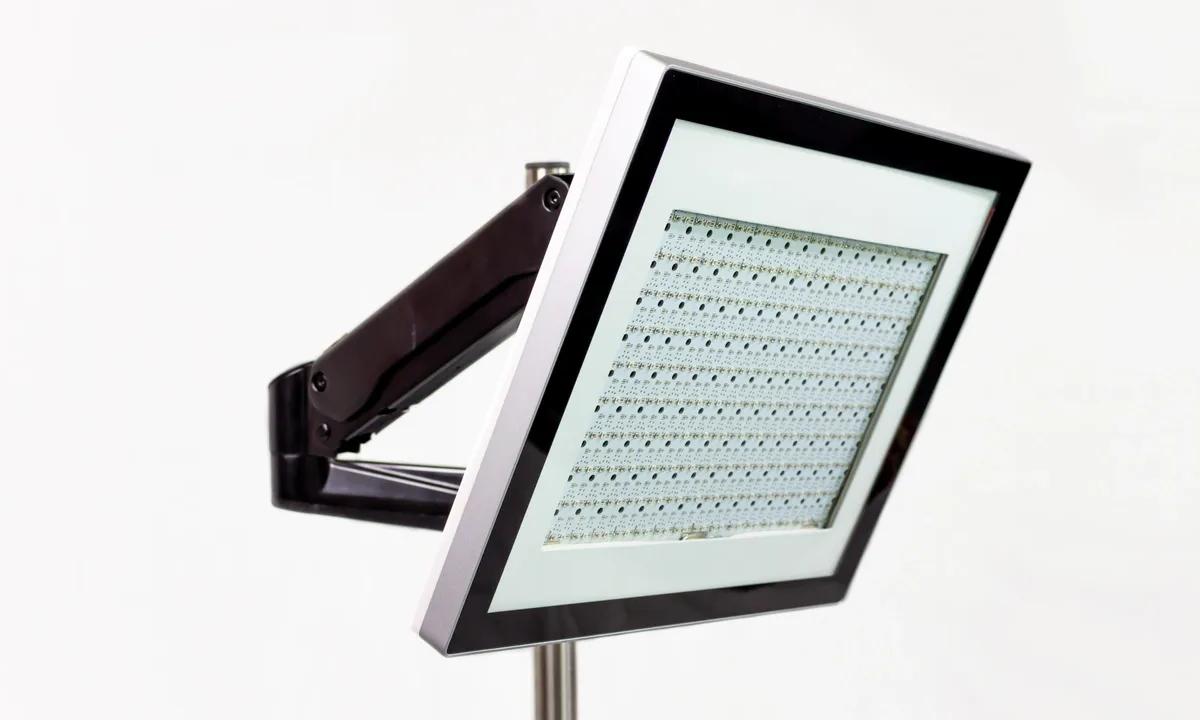

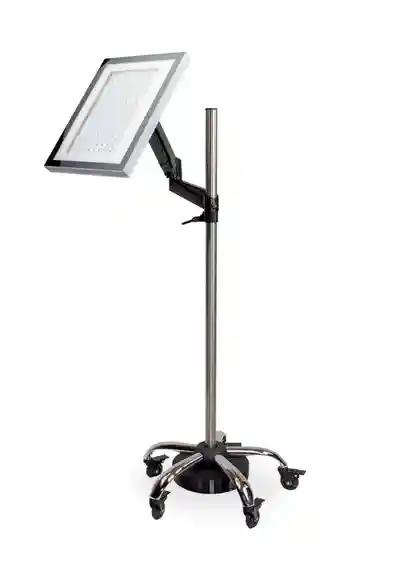

Reconstructed from the Mini-Canopy manual: rectangular white housing, black optical border, rear vents, articulated arm and five-caster telescopic stand. The 310 emitter positions are illustrative. Only the illuminated array dimensions are published; confirm the complete stand envelope before planning an installation.
Dimensions: Published illuminated array: 12 × 8.5 in. Outer housing, stand footprint and presentation height are photo-derived estimates, not manufacturer measurements.
Open source recordKey features
- 310 total LEDs (160 red at 660nm, 150 NIR at 810nm)
- Panel size: 12" x 8.5" (620 cm²)
- Output power: 63 W red, 60 W NIR at full power
- Irradiance: 102 mW/cm² red, 100 mW/cm² NIR
- Fluence: 6 J/cm² in 60 seconds
- Optional 1050nm upgrade (+$1,500); 2-year warranty
Specifications
- Number of High Power LEDs
- 310 LEDs
- LED Colors
- 160 Red (660 nm), 150 NIR (810 nm) LEDs
- LED Array Surface Area
- 620 cm2 (12" x 8.5")
- Radiant Power for 660 nm Red (160 LEDs)
- Full power (PWM @ 100%) = 63 Watts (63,000 mW)
- Radiant Power for 810 nm NIR (150 LEDs)
- Full power (PWM @ 100%) = 60 Watts (60,000 mW)
- Irradiance for 660 nm (mW/cm2)
- 102 mW/cm2 (PWM @ 100%)
- Irradiance for 810 nm (mW/cm2)
- 100 mW/cm2 (PWM @ 100%)
- Joules in 60 seconds
- Approx. 3780 Joules
- Fluence in 60 seconds
- 6 J /cm2 (in Red or NIR)
- Electrical
- 120 Volts AC / 24Volts DC, 240 Watts
Product details
- Regulatory status & certifications
- FDA registeredRegistration or listing does not by itself mean a device is FDA approved or cleared. Confirm model-specific status and intended use with the manufacturer and the relevant regulator before purchase.
- Lead time
- 2-5 weeks
